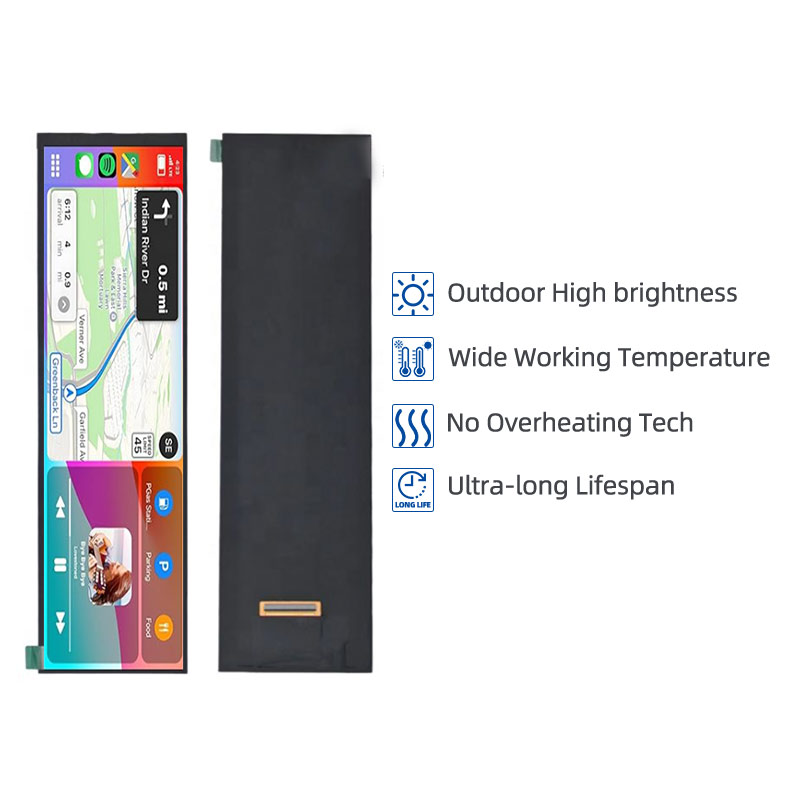

8.8 Inch High Brightness LCD Display Overview
The ET088BA01-Z is an 8.8-inch high-brightness IPS TFT LCD display featuring a 1920×480 resolution and a MIPI interface. This transmissive display provides a typical brightness of 800 cd/m² and viewing angles of 85° left/right/up and 80° down. It has an active area of 218.88×54.72 mm within an outline dimension of 231.3×64.3 mm. The display operates over a temperature range of –20 °C to 70 °C and can be stored between –30 °C and 80 °C, and it does not support touch input.

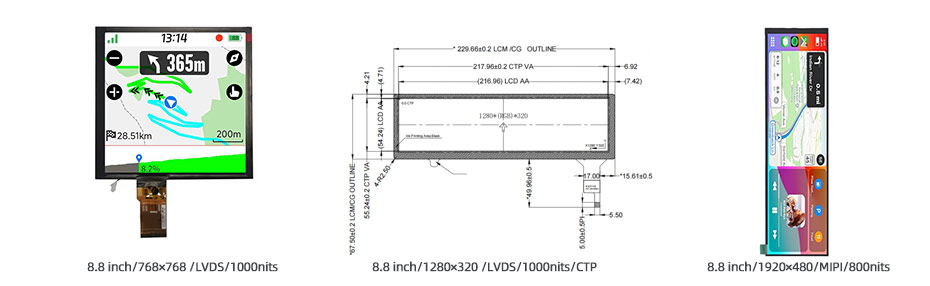

More 8.8 Inch High Brightness Display For Reference
ET088SQ01-DB (768x768, LVDS ,1000nits, -20~70°C, 179.4x179.6mm)
ET088BA01-KDT (1280x320, LVDS ,1000nits, -20~70°C, 229.66x67.5mm, CTP)
ET088BA01-Z (1920x480, MIPI, 800nits, -20~70°C, 231.3x64.3mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
