9 Inch High Brightness LCD Display Overview

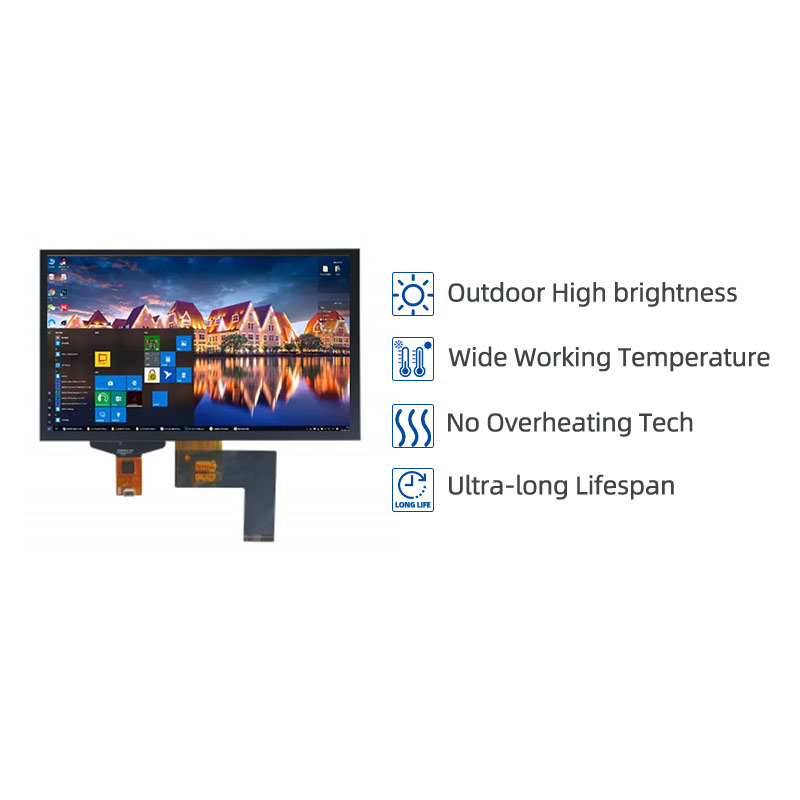

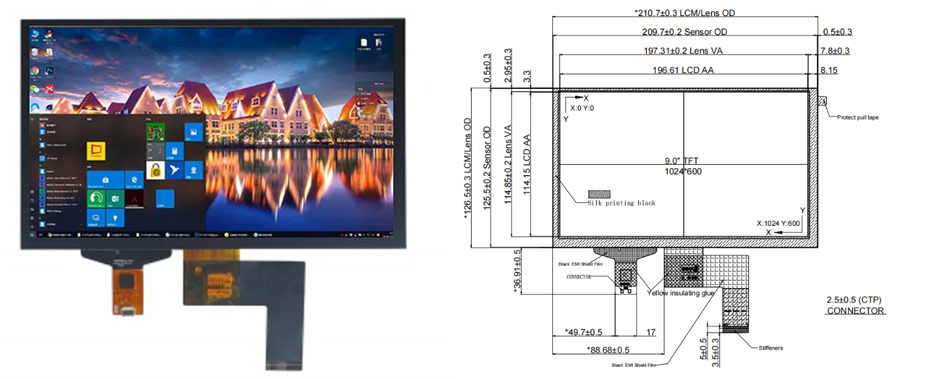

The ET090WS01-KDT is a 9-inch high-brightness IPS TFT LCD display featuring a 1024×600 resolution and an LVDS interface. This transmissive display offers a typical brightness of 1000 cd/m² and wide viewing angles of 85° in all directions. It has an active area of 196.6×114.15 mm within an outline dimension of 210.7×126.5 mm. The display operates between –20 °C and 70 °C and can be stored from –30 °C to 80 °C. Touch functionality is not supported.
More 9 Inch High Brightness Display For Reference

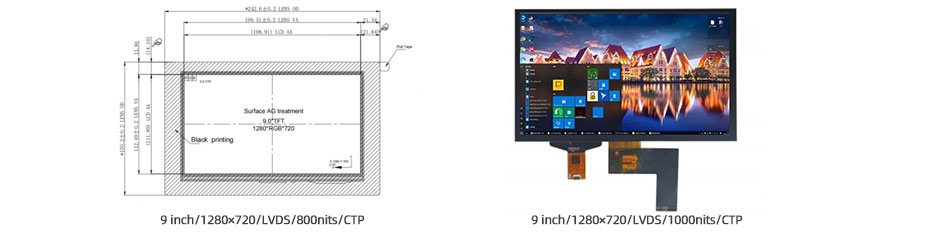

ET090WX01-KDT (1280x720, LVDS ,800nits, -20~70°C, 242.6x150.2mm, CTP)
ET090WS01-KDT (1024x600, LVDS ,1000nits, -20~70°C, 210.7x126.5mm, CTP)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
