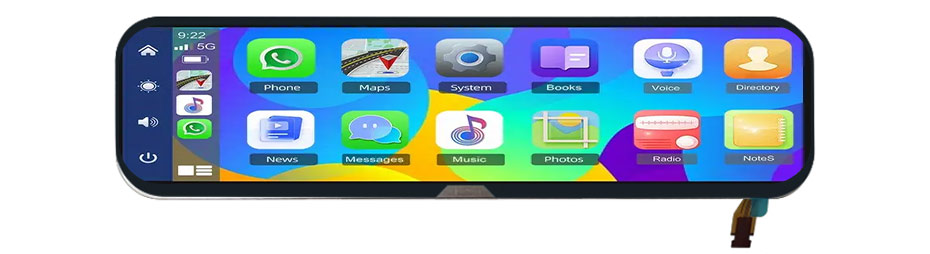

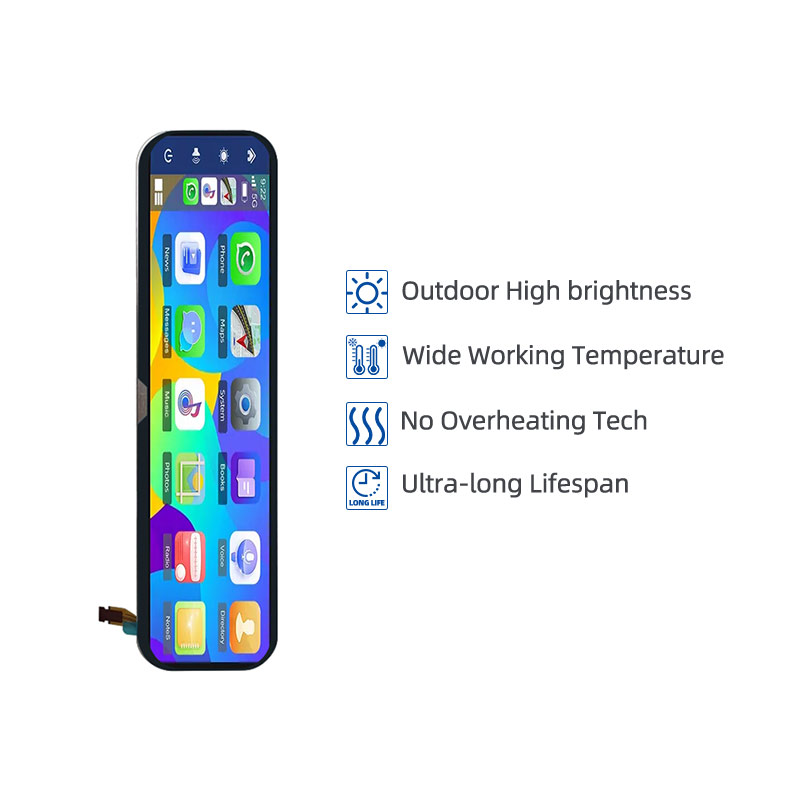

9.2 Inch High Brightness LCD Display Overview
The ET092BA01-TS is a 9.2-inch high-brightness IPS TFT LCD display with a resolution of 1920×384 and an LVDS interface. This transmissive display delivers a typical brightness of 3000 cd/m² and wide viewing angles of 85° in all directions. It has an active area of 229.25×45.85 mm within an outline dimension of 239.45×59.24 mm. The display is designed for wide temperature operation from –30 °C to 85 °C and storage from –40 °C to 90 °C, and it does not support touch functionality.
More 9.2 Inch High Brightness Display For Reference

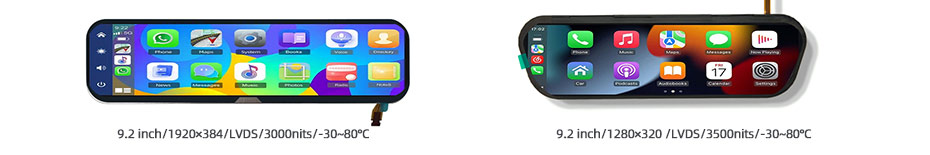

ET092BA01-TS (1920x384, LVDS ,3000nits, -30~85°C, 239.45x59.24mm)
ET092BA01-TV (1280x320, LVDS ,3500nits, -30~80°C, 238.63x69.5mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
