10.3 Inch Stretched Bar Display 1920x720 IPS 600nits High Brightness LVDS TFT LCD Display

10.3 Inch Stretched Bar Display Overview

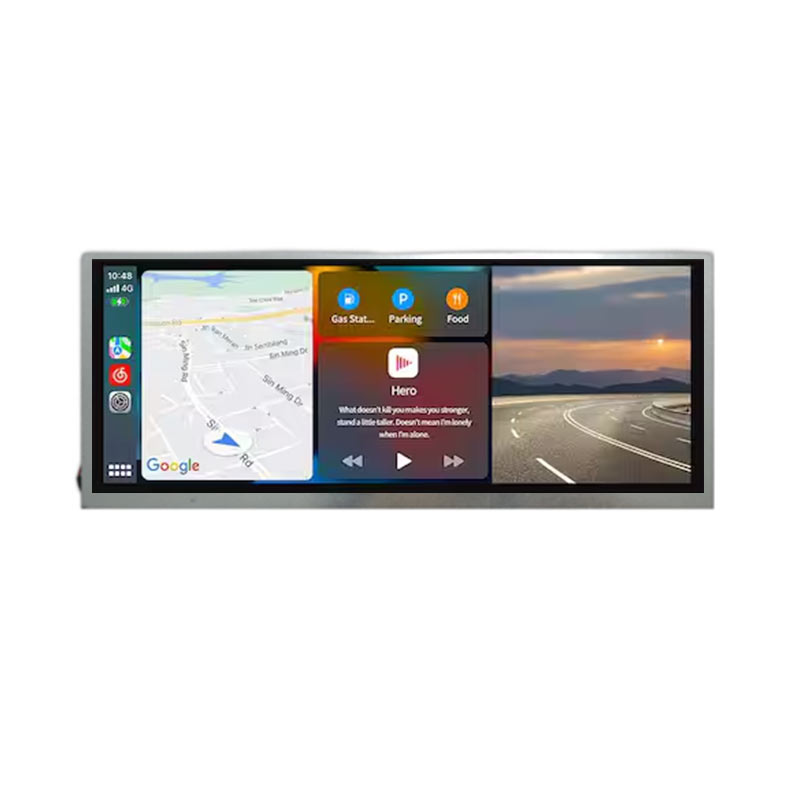

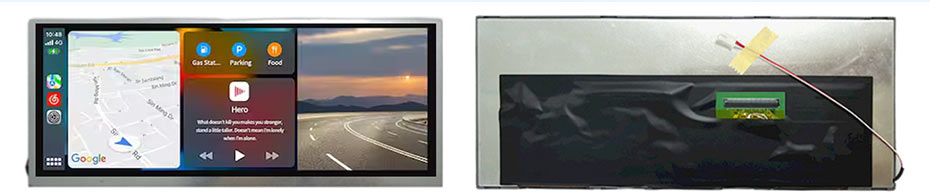

ET103BA01-ZK is a 10.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 720 resolution, delivering a high-definition wide-format display well suited for detailed graphics and elongated user interfaces, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 243.65 (W) × 91.37 (H) mm and an outline dimension of 265.2 (W) × 109.85 (H) mm, allowing for efficient integration into slim and modern system designs. ET103BA01-ZK adopts an LVDS interface and provides a typical brightness of 600 cd/m², ensuring excellent visibility in high-ambient-light environments. With wide viewing angles of 85° in all directions (L/R/U/D), it maintains consistent color and contrast performance from multiple viewing positions. The module is designed for reliable operation over a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is ideal for applications such as industrial control panels, transportation displays, smart appliances, and information signage.

More 10.3 Inch Bar Displays For Reference

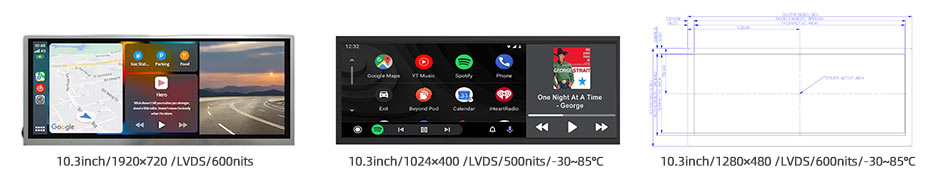

ET103BA01-ZK (1920x720, LVDS, IPS, 600nits, -20~70°C, 265.2x109.85mm)
ET103BA01-YH (1024x400, LVDS, IPS, 500nits, -30~85°C, 270x115mm)
ET103BA01-DB (1280x480, LVDS, IPS, 600nits, -30~85°C, 260.35x113.73mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
