7.1"-10.1" LCD Display (9.9")

9.9 Inch 7680x4320 Monochrome LCD Display eDP IPS LCD Module For 3D Printer

Part No.:ET099FUH01-D
Size:9.9″ inch
Resolution:7680x4320
Panel Interface:eDP
Display mode:Transmissive
Outline Dimension:227.43x139.5mm
Active Area:218.88x123.12mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:/
Operation / Storage Temp:0~70°C / -10~80°C
Touch:no

9.9 Inch 7680x4320 Display Overview
ET099FUH01-D is a 9.9-inch 8K monochrome IPS LCD display module with a 7680 × 4320 resolution, designed for 3D printer applications. It features a transmissive display mode with an eDP interface, an active area of 218.88 × 123.12 mm, and an outline dimension of 227.43 × 139.5 mm. The module supports viewing angles of 80° left/right/up/down and operates within a temperature range of 0–70 °C, with storage from -10–80 °C. This display does not include touch functionality.

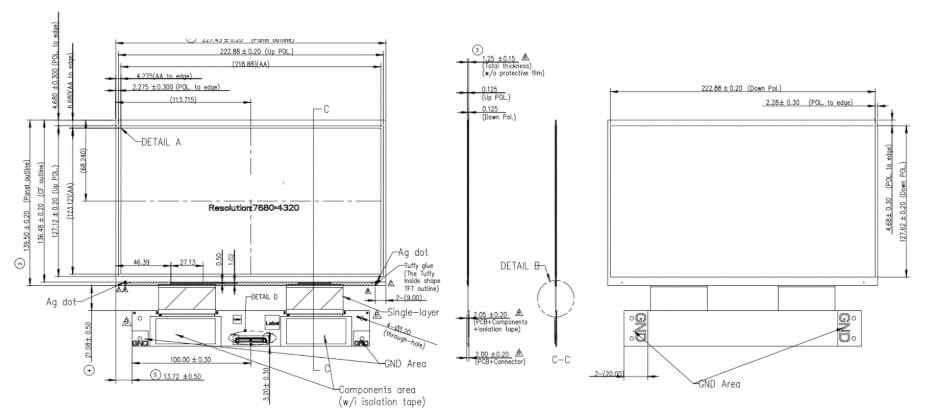

9.9 Inch 7680x4320 Display Drawing
