0.48"-5" LCD Display (5")

5 Inch Circular Display 1080x1080 MIPI IPS Round LCD Display For Wearable

Part No.:ET050CR01-R
Size:5″ inch
Resolution:1080x1080
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:132.3x136.53mm
Active Area:128x128mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:/
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

5 Inch Circular Display Overview

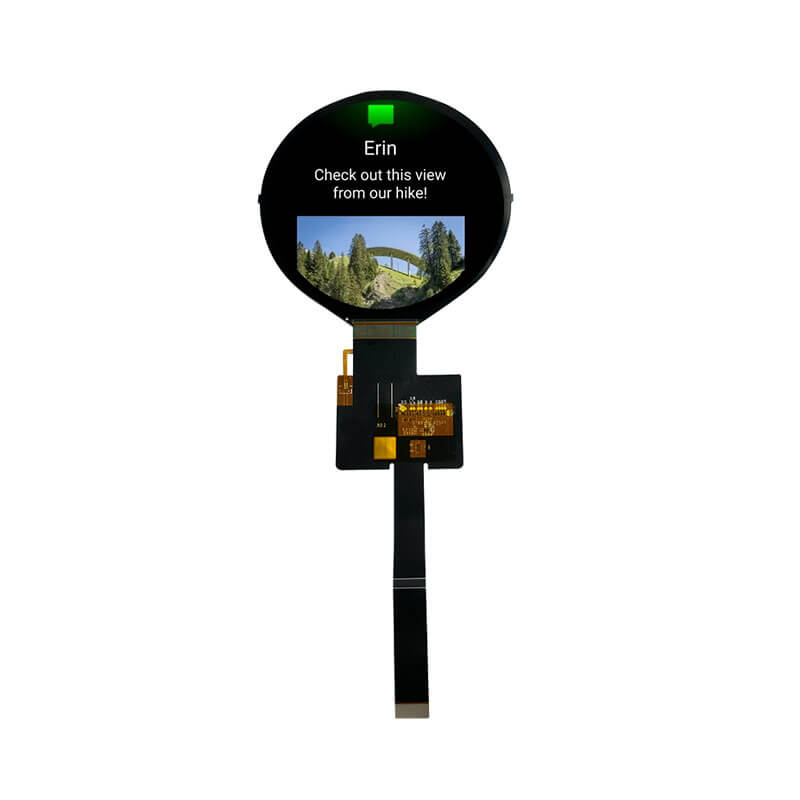

ET050CR01-R is a 5-inch circular IPS LCD display with a 1080 × 1080 resolution, designed for wearable applications. It features a transmissive display mode with a MIPI interface, an active area of 128 × 128 mm, and an outline dimension of 132.3 × 136.53 mm. The display supports a viewing angle of 80° left/right/up/down and operates within a temperature range of –20 to 70 °C, with storage from –30 to 80 °C. This model does not include touch functionality.
