8 Inch High Brightness LCD Display Overview

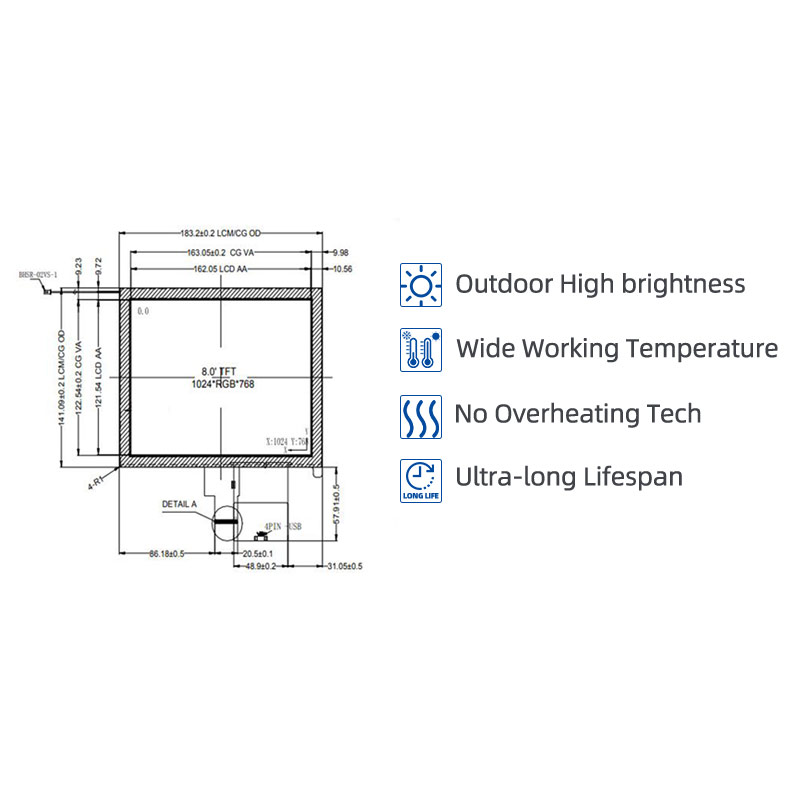

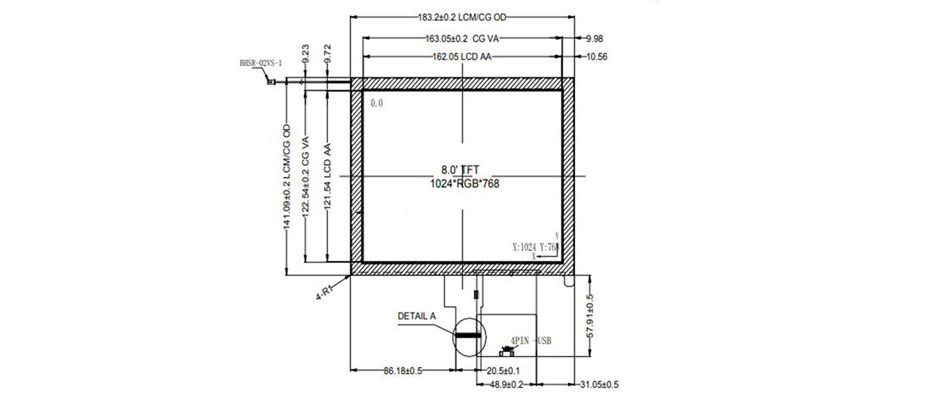

ET080XG01-KDT is an 8.0-inch diagonal TFT-LCD display product featuring IPS technology and a transmissive display mode. It supports a resolution of 1024×768 with an aspect ratio of 4:3 (W:H), providing wide viewing angles of 80° in all directions (L/R/U/D). The display utilizes an LVDS interface for stable signal transmission and delivers a typical brightness of 800 cd/m², making it suitable for high-brightness applications. It has an active area of 162.05(W) × 121.54(H) mm and an outline dimension of 183.2(W) × 141.09(H) mm. This model also integrates a capacitive touch panel for interactive functionality. Designed for reliability, it operates within a temperature range of -10 to 50°C and can be stored between -20 and 60°C.

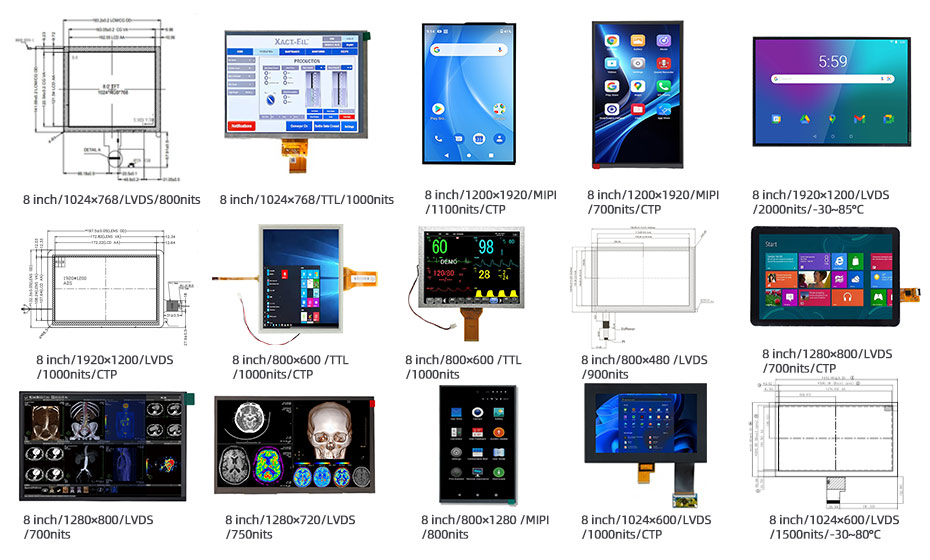

More 8 Inch High Brightness Display For Reference
ET080XG01-KDT (1024x768, LVDS, 800nits, -10~50°C, 183.2x141.09mm, CTP)
ET080XG01-V (1024x768, TTL, 1000nits, -20~70°C, 183x141mm)
ET080WU05-OT (1200x1920, MIPI, 1100nits, 0~50°C, 119.41x184.84mm, CTP)
ET080WU01-AM (1200x1920, MIPI, 700nits, -10~50°C, 114.6x184.1mm)
ET080WWV-R1 (1920x1200, LVDS, 2000nits, -30~85°C, 179x119mm)
ET080WU11-TT (1920x1200, LVDS, 1000nits, -20~70°C, 181.7x119.8mm, CTP)
ET080HB01-EXT (800x600, TTL, 1000nits, -10~60°C, 183x141mm, CTP)
ET080WV01-ZK (800x600, TTL, 1000nits, -20~70°C, 186x141mm)
ET080WV01-W (800x480, LVDS, 900nits, -30~85°C, 187.4x118mm)
ET080WX01-AMT (1280x800, LVDS, 700nits, -20~70°C, 197.1x131.9mm, CTP)
ET080WX01-AM (1280x800, LVDS, 700nits, -20~70°C, 181.25x118.75mm)
ET080HD01-AM (1280x720, LVDS, 750nits, -30~85°C, 192.9x117mm)
ET080WX01-H (800x1280, MIPI, 800nits, -20~60°C, 114.6x184.1mm)
ET080WS01-HT (1024x600, LVDS, 1000nits, -20~70°C, 216x139mm, CTP)
ET080WS01-Z1 (1024x600, LVDS, 1500nits, -30~80°C, 192.8x116.9mm)
