7.1"-10.1" LCD Display (7.8")

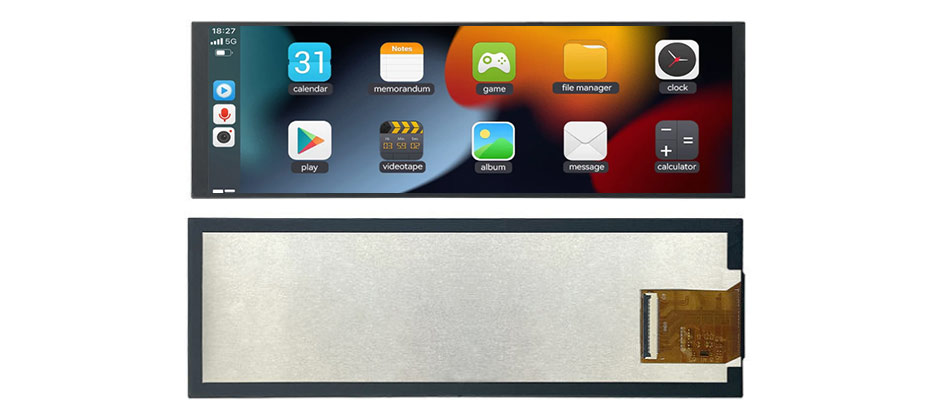

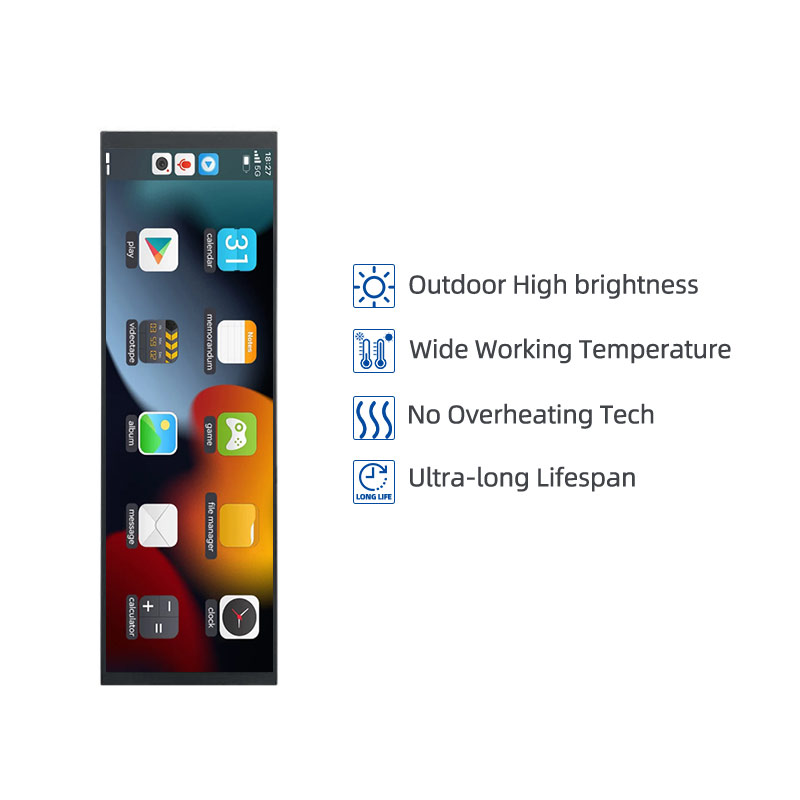

7.84 Inch High Brightness Display 700nits IPS 400x1280 TTL TFT LCD Display

  • Part No.:ET078HD03-T
  • Size:7.84″ inch
  • Resolution:400x1280
  • Panel Interface:TTL
  • Display mode:Transmissive
  • Outline Dimension:67.8x205.78mm
  • Active Area:59.4x90.08mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness（cd/m2）:700(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no
Get a quote

7.84 Inch High Brightness LCD Display Overview
7.84 Inch High Brightness Display 700nits IPS 400x1280 TTL TFT LCD Display.

More 7.84 Inch High Brightness Display For Reference
ET078HD01-T (400x1280, MIPI, 700nits, -20~70°C, 67.14x205.12mm)
ET078HD02-T (400x1280, LVDS, 700nits, -20~70°C, 67.14x205.12mm)
ET070HD03-T (400x1280, TTL, 700nits, -20~70°C, 67.8x205.78mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
