6"-15.6" Touch Screen (8")

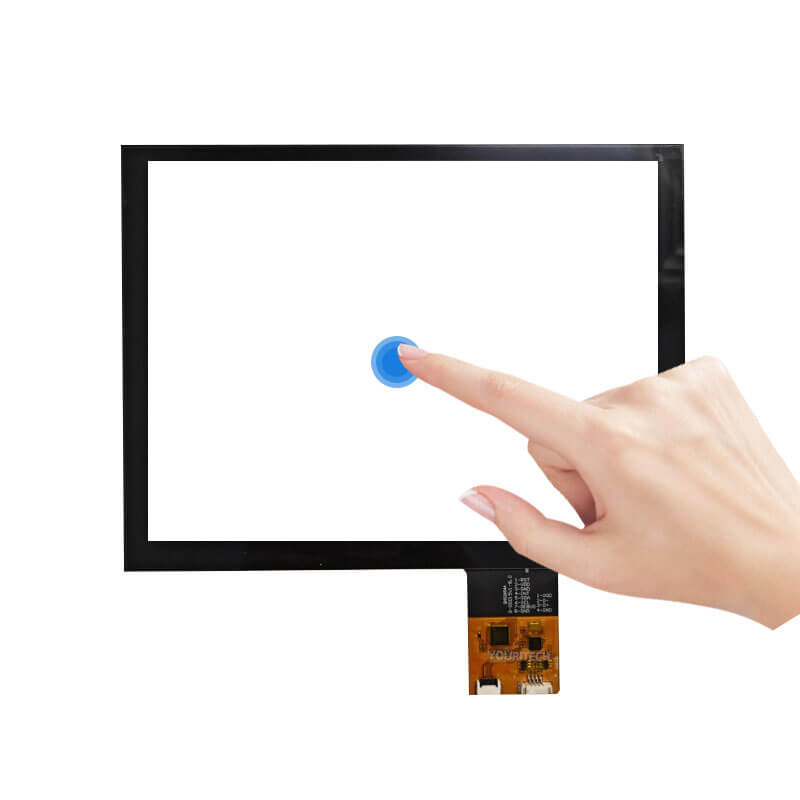

8 Inch Capacitive Touch Screen G+G Multi-touch I2C USB 4:3 Capacitive Touch Display For AUO Innolux BOE Industrial Screen

Part No.:ET080CTP01
Size:8″ inch
Resolution:Optional
Panel Interface:I2C USB
Display mode:PCAP
Outline Dimension:183.28x138.2mm
Active Area:162.44x121.94mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

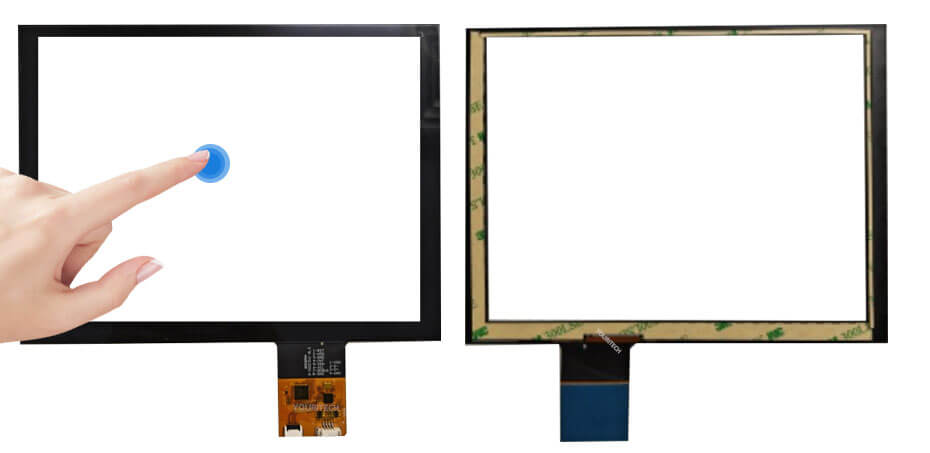

8 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C USB
Display Area: 162.44x121.94 mm
Outline Dim.: 183.28x138.2 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

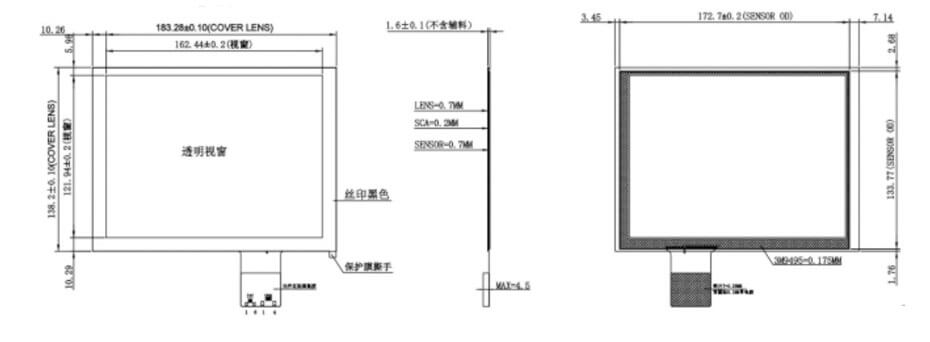

8 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
