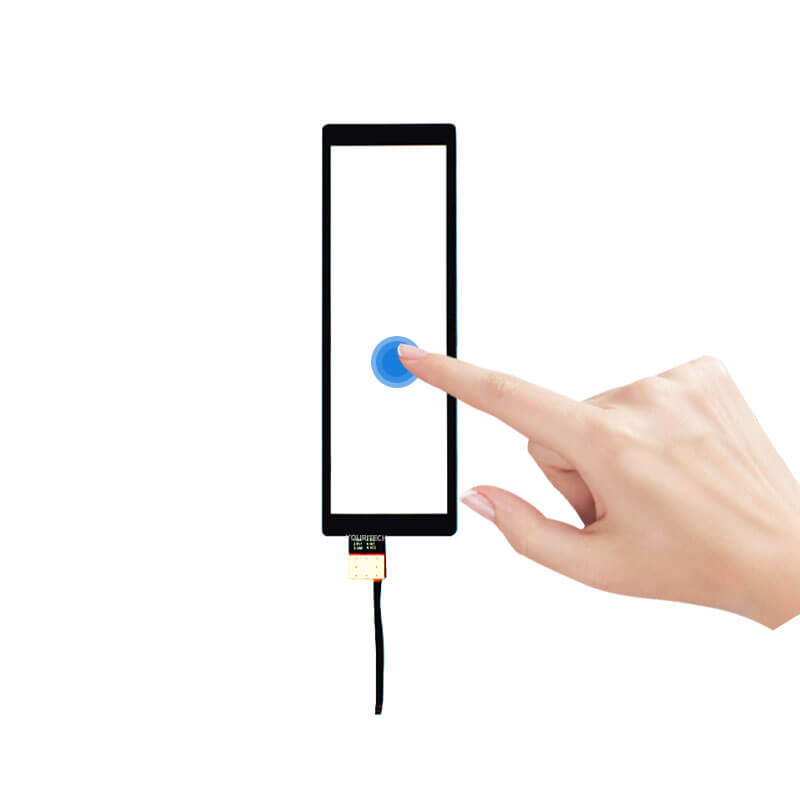

7.8 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C

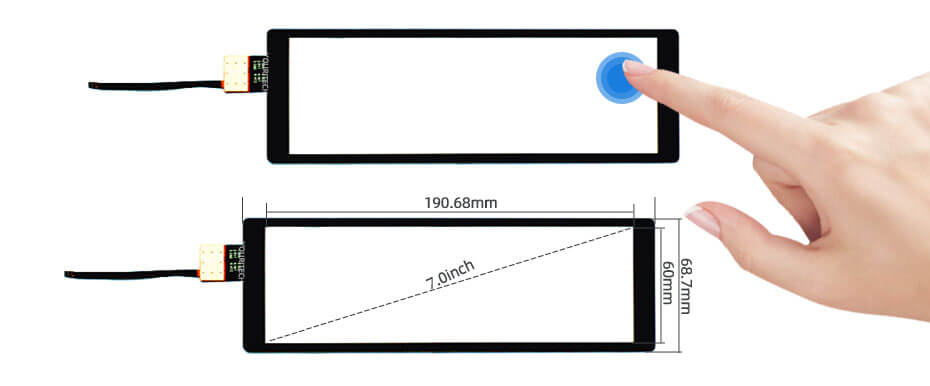

Display Area: 189.68x59 mm
Outline Dim.: 213.48x68.7 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

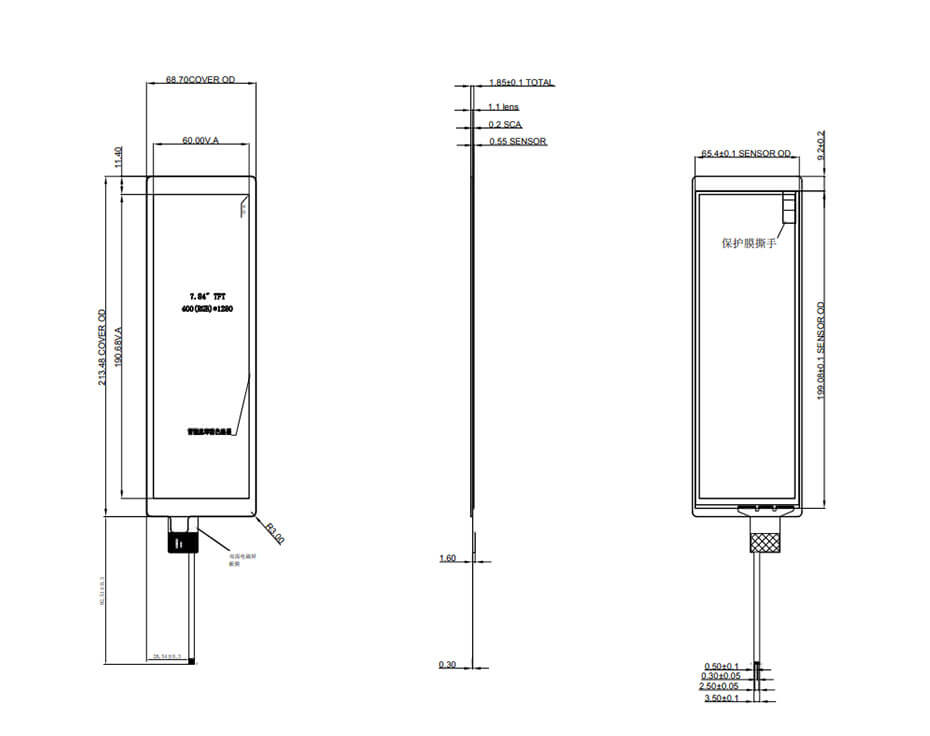

7.8 Inch Capacitive Touch Screen Drawing
The touch screens can be matched and integrated by all kinds of display panels
SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
PRODUCTION AND MANUFACTURING
APPLICATIONS
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
