7.1"-10.1" LCD Display (8.8")

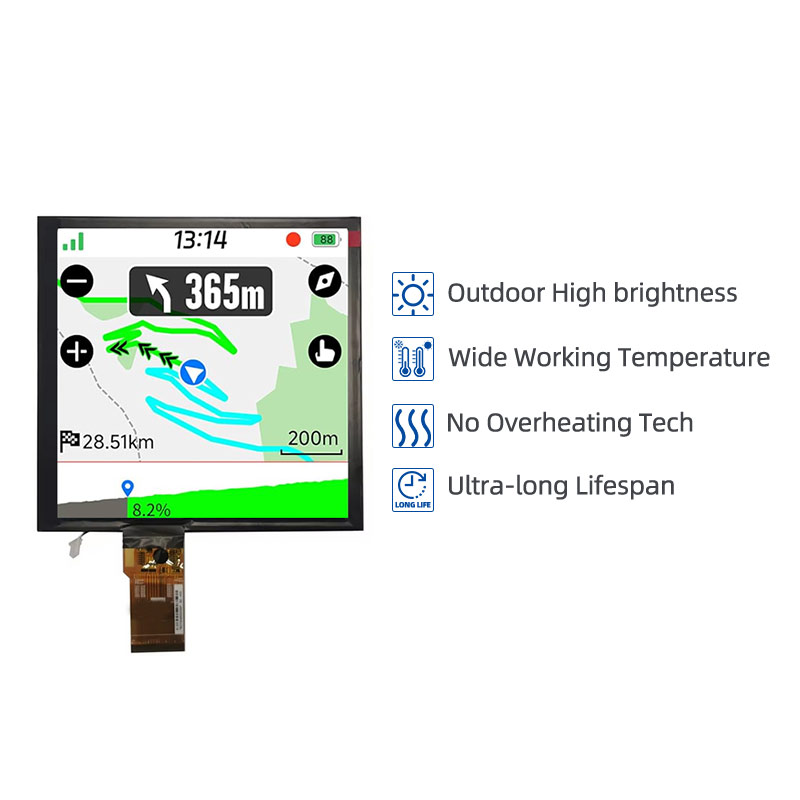

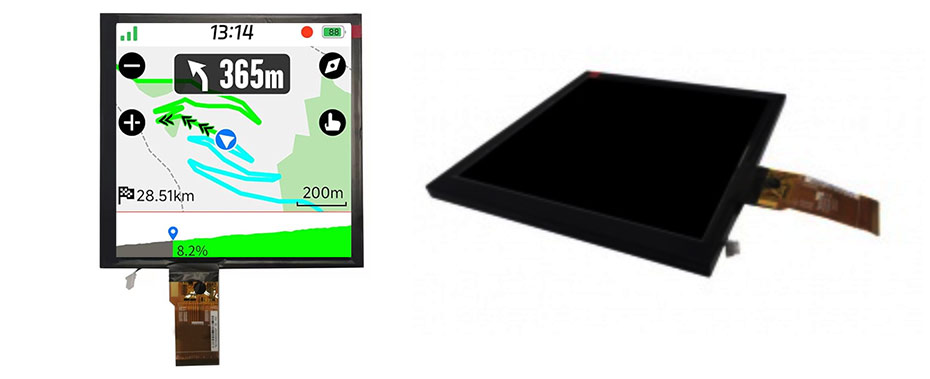

8.8 Inch High Brightness Display 1000nits IPS 768x768 LVDS TFT LCD Display

Part No.:ET088SQ01-DB
Size:8.8″ inch
Resolution:768x768
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:179.4x179.6mm
Active Area:158.4x158.4mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

8.8 Inch High Brightness LCD Display Overview
8.8 Inch High Brightness Display 1000nits IPS 768x768 LVDS TFT LCD Display.

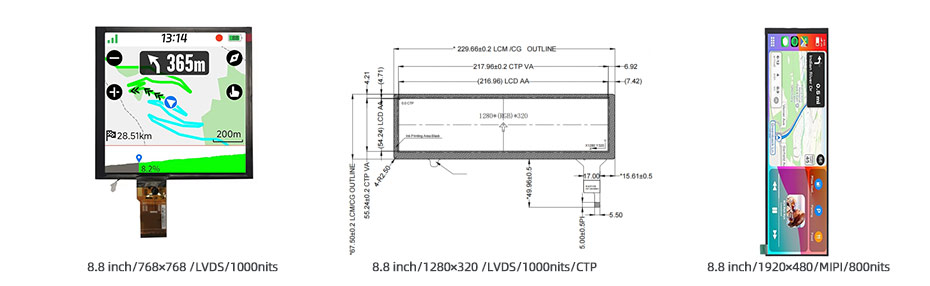

More 8.8 Inch High Brightness Display For Reference
ET088SQ01-DB (768x768, LVDS ,1000nits, -20~70°C, 179.4x179.6mm)
ET088BA01-KDT (1280x320, LVDS ,1000nits, -20~70°C, 229.66x67.5mm, CTP)
ET088BA01-Z (1920x480, MIPI, 800nits, -20~70°C, 231.3x64.3mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing

Previous: 8.4 Inch High Brightness Display 800nits IPS 1024x768 LVDS Wide Temperature TFT LCD DisplayNext: 8.8 Inch High Brightness Display 1000nits IPS 1280x320 LVDS TFT LCD Display With Capacitive Touch
