5.1"-7" AMOLED

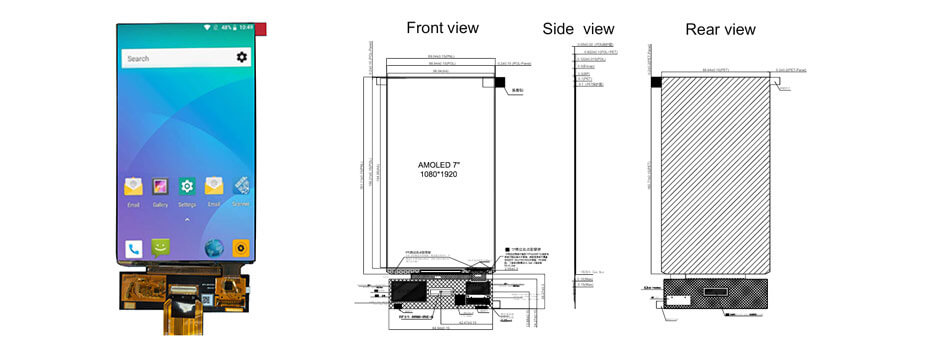

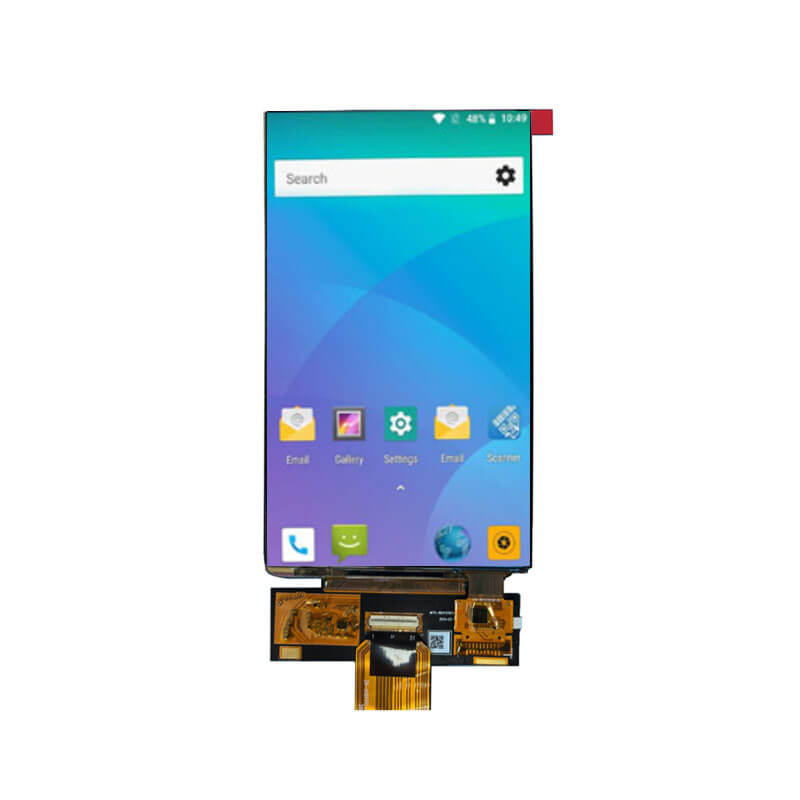

7 Inch Wide Temperature OLCD Display 1080×1920 MIPI -30°C to 85°C High Brightness 600nits AMOLED Display With On-Cell Touch

Part No.:ET070FH01-KDT
Size:7″ inch
Resolution:1080x1920
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:89.04x154.56mm
Active Area:86.94x154.56mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:600nits
Operation / Storage Temp:-30~85°C / -40~85°C
Touch:no

7 Inch Wide Temperature OLCD Display Overview
7 Inch Wide Temperature OLCD Display 1080×1920 MIPI -30°C to 85°C High Brightness 600nits AMOLED Display With On-Cell Touch.

More 7 Inch Wide Temperature Displays For Reference
ET069HD01-SH (LCD, 720×1280, MIPI, IPS, 350nits, -30~70°C, 91.76×165.04mm)
ET069FH01-F (OLCD, 1080×1920, MIPI, IPS, 600nits, -30~85°C, 89.04×161.11mm, CTP)
ET070WV02-T (LCD, 800×480, TTL, IPS, 450nits, -30~80°C, 165×100mm)
ET070WV06-KT (LCD, 800×480, TTL, IPS, 1100nits, -30~85°C, 165.4×104.59mm)
ET7D0023 (OLCD, 1080×1920, MIPI, IPS, 1000nits, -30~80°C, 101.4×174mm)
ET070FH01-KDT (OLCD, 1080×1920, MIPI, IPS, 600nits, -30~85°C, 89.04×154.56mm, On-Cell Touch)
ET070WS10-TC (LCD, 1024×600, TTL, IPS, 1000nits, -30~80°C, 164.9×100mm)
ET070WS07-KT (LCD, 1024×600, LVDS, IPS, 1600nits, -30~85°C, 182×117.6mm, CTP)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
