5.1"-7" LCD Display (7")

7 Inch Square Display IPS 720x720 LVDS 1000nits High Brightness TFT LCD Display

Part No.:ET070SQ01-AP
Size:7″ inch
Resolution:720x720
Panel Interface:LVDS
Display mode:Transmissive

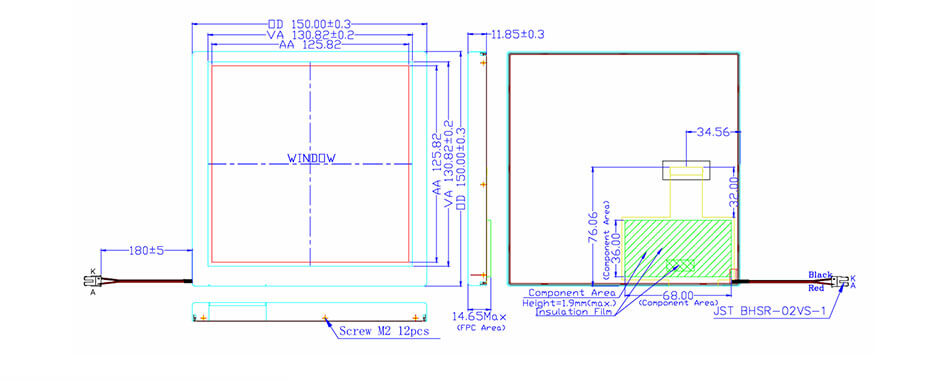

Outline Dimension:150x150mm
Active Area:125.82x125.82mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

7 Inch Square Display Overview
7 Inch Square Display IPS 720x720 LVDS 1000nits High Brightness TFT LCD Display.

More 7 Inch Square Display For Reference
ET070SQ01-AP (720x720, LVDS, 1000nits, -20~70°C, 150x150mm)
ET070SQ02-AP (768x768, LVDS, 1000nits, -20~70°C, 145x145mm)
ET070SQ03-KN (600x600, LVDS, 430nits, -30~70°C, 144x124mm)

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
