LCD above 17.3" (20")

20 Inch Stretched Bar Display 1920x720 High Brightness 500nits LVDS TFT LCD Display

Part No.:ET200BA01-HT
Size:20″ inch
Resolution:1920x720
Panel Interface:LVDS
Display mode:Transmissive

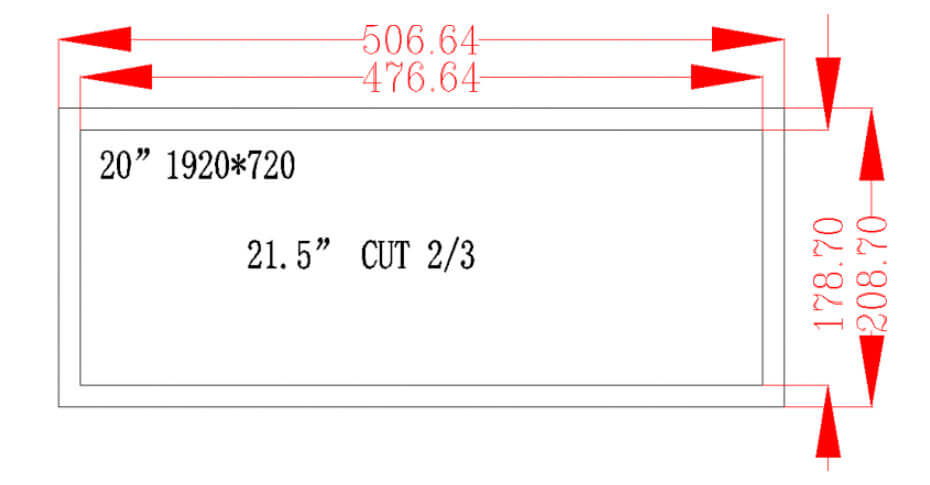

Outline Dimension:506.64x208.74mm
Active Area:476.64x178.74mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:0~50°C / -20~70°C
Touch:no

20 Inch Stretched Bar Display Overview
ET200BA01-HT is a 20-inch diagonal stretched bar TFT LCD display featuring a 1920×720 resolution and supporting an LVDS interface. The display operates in transmissive mode and provides an active area of 476.64(W)×178.74(H) mm, with an outline size of 506.64(W)×208.74(H) mm. ET200BA01-HT delivers a typical brightness of 500 cd/m² and offers wide viewing angles of 89° in all directions (L/R/U/D). It is designed for operation over a temperature range of 0 °C to 50 °C and storage from –20 °C to 70 °C. This model does not include touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
