6"-15.6" Touch Screen (7")

7 Inch Capacitive Touch Screen CTP G+G 10-finger Multi-touch 1.1mm Thick Physical Tempered Glass Cover Full Lamination Technology Support Windows /Android/Linux

  • Part No.:ET070CTP03
  • Size:7″ inch
  • Resolution:Optional
  • Panel Interface:USB
  • Display mode:PCAP
  • Outline Dimension:210x144.5mm
  • Active Area:155.81x87.52mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-40~85°C / -40~85°C
  • Touch:yes
Get a quote

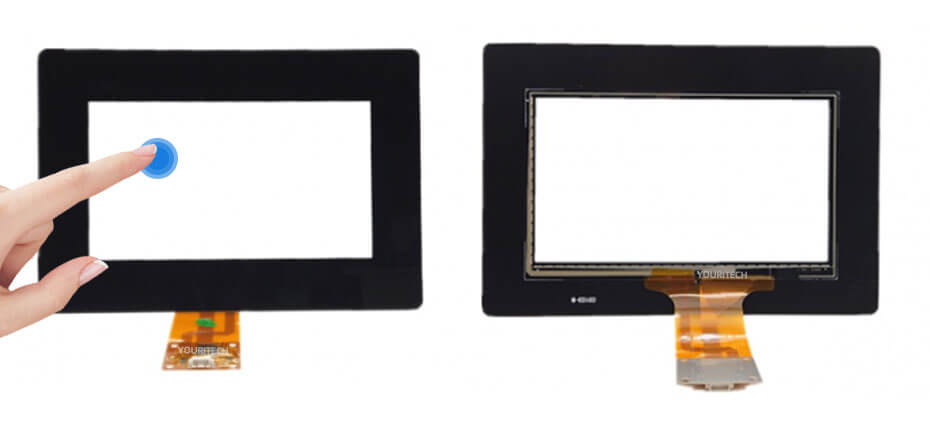

7 Inch Capacitive Touch Screen
Product structure:Glass/Glass
Surface hardness: Hard coating (7H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 155.81x87.52 mm
Outline Dim.: 210 × 144.5 mm
Operation Temperature: -40 ~ 85 °C
Storage Temperature: -40 ~ 85 °C

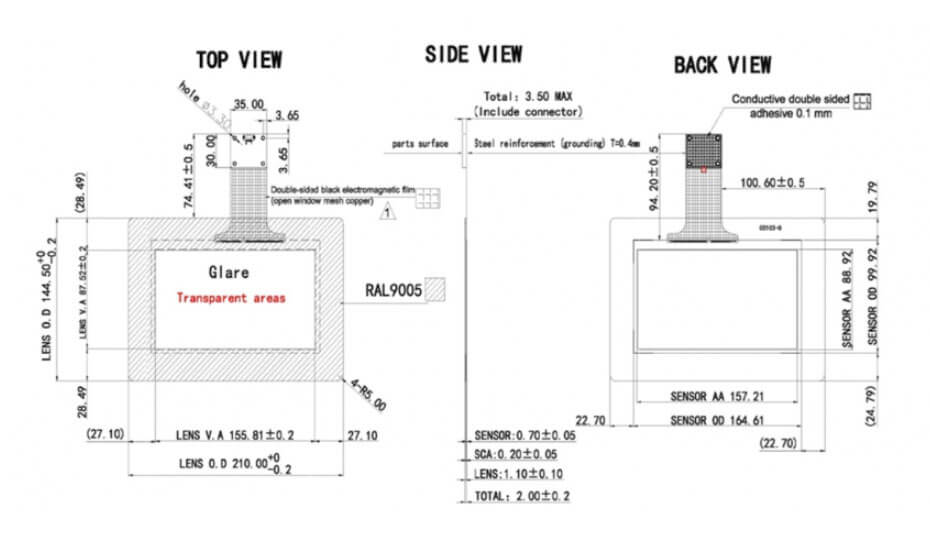

7 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
