10.2"-17.3" LCD Display (10.2“)

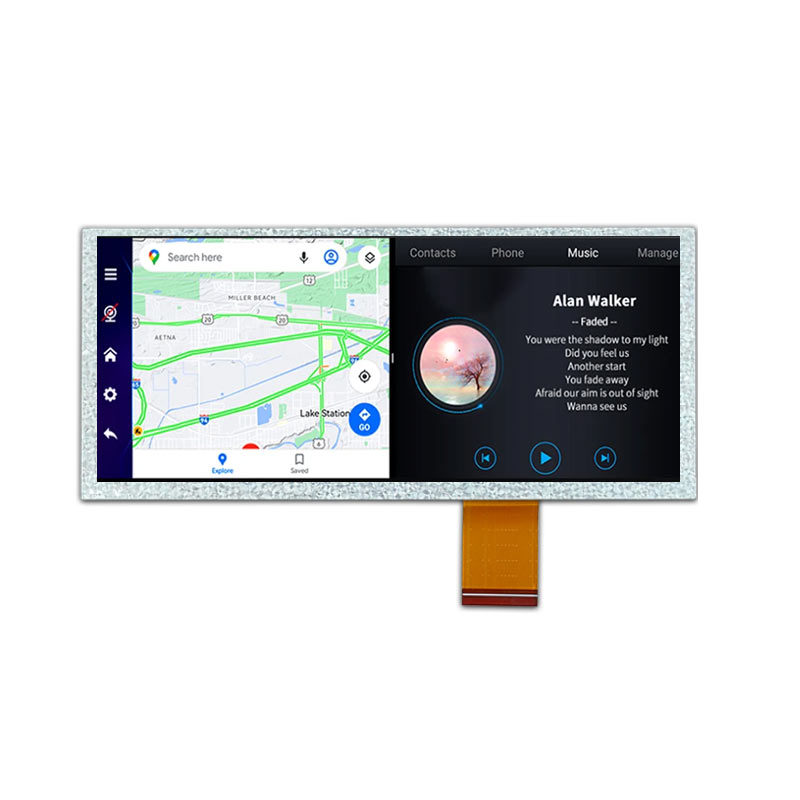

10.2 Inch Stretched Bar Display 1280x480 IPS 500nits High Brightness LVDS Wide Temperature TFT LCD Display

Part No.:ET102BA01-H
Size:10.2″ inch
Resolution:1280x480
Panel Interface:LVDS
Display mode:Transmissive

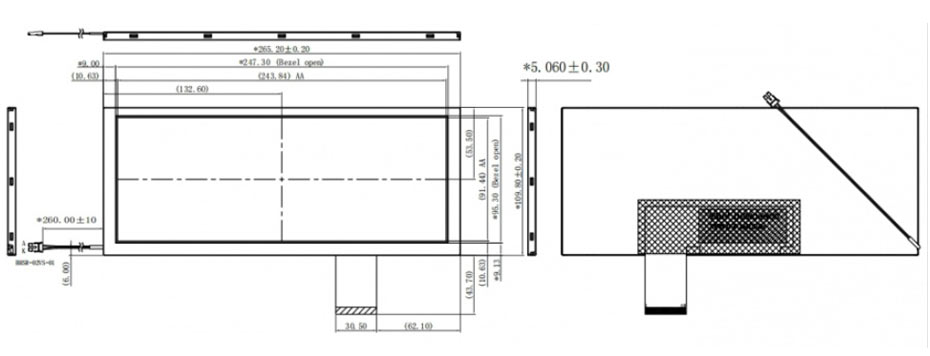

Outline Dimension:265.2x109.8mm
Active Area:243.84x91.44mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-30~85°C / -40~90°C
Touch:no

10.2 Inch Stretched Bar Display Overview
ET102BA01-H is a 10.2-inch stretched bar TFT LCD display with a resolution of 1280×480, featuring an IPS panel and transmissive display mode. It uses an LVDS interface and provides an active area of 243.84 × 91.44 mm within an outline dimension of 265.2 × 109.8 mm. The display delivers a typical brightness of 500 cd/m², wide 80° viewing angles in all directions, and supports wide-temperature operation from −30 to 85 °C (storage −40 to 90 °C), with no touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
