6.9 Inch AMOLED Display Overview

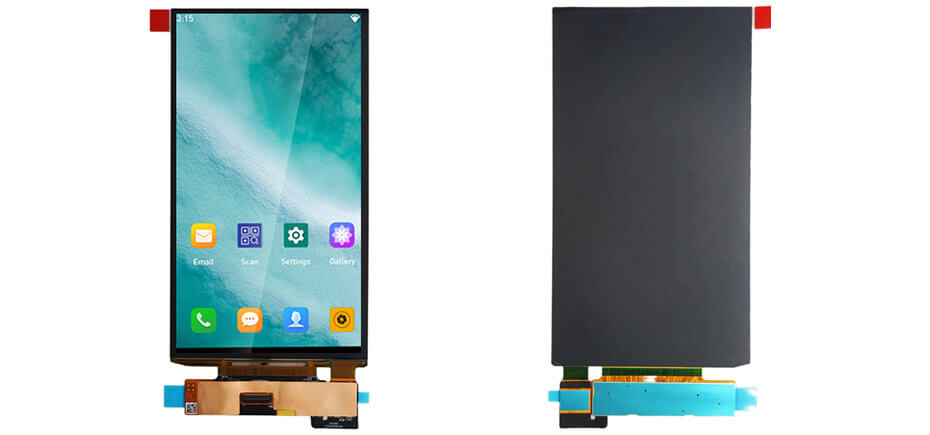

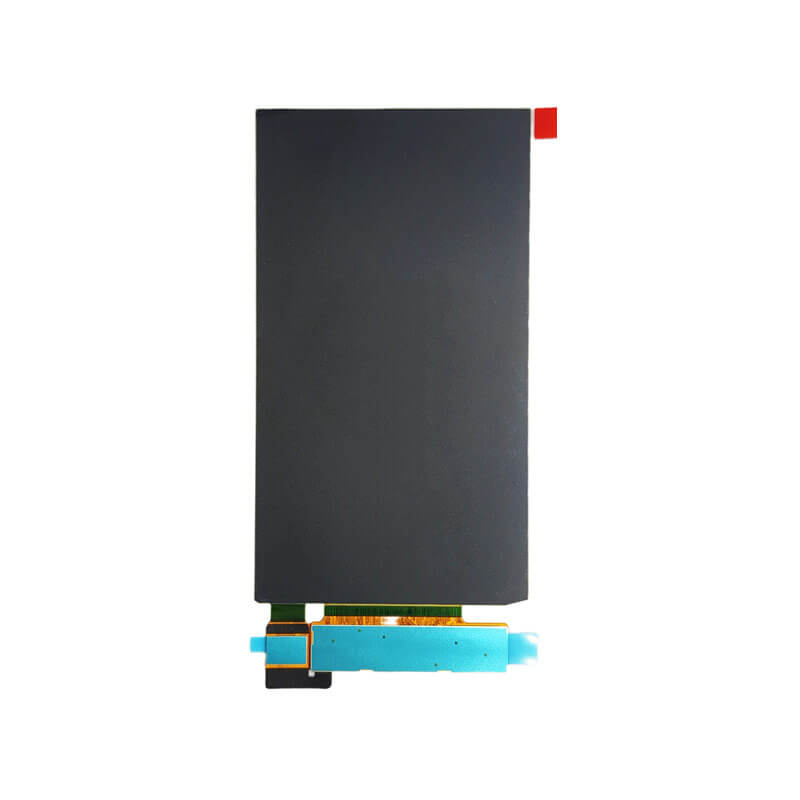

ET069AM01-A is a 6.9 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET069AM01-A supports a resolution of 1080×1920 with an approximate 9:16 aspect ratio (W:H) and offers wide viewing angles of 85/85/85/85 (L/R/U/D). It features an active area of 86.832(W) × 154.368(H) mm and an outline dimension of 88.832(W) × 160.368(H) mm, and adopts a MIPI interface for signal transmission. The display provides a high brightness of 600 nits and operates within a temperature range of -20°C to 70°C (storage: -40°C to 80°C). Designed without a touch function, ET069AM01-A is suitable for applications requiring high-brightness, high-resolution display performance.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
