6.2 Inch Wide Temperature LCD Display 800×480 Parallel RGB -30°C to 85°C High Brightness 600nits TFT LCD Display

6.2 Inch Wide Temperature LCD Display Overview

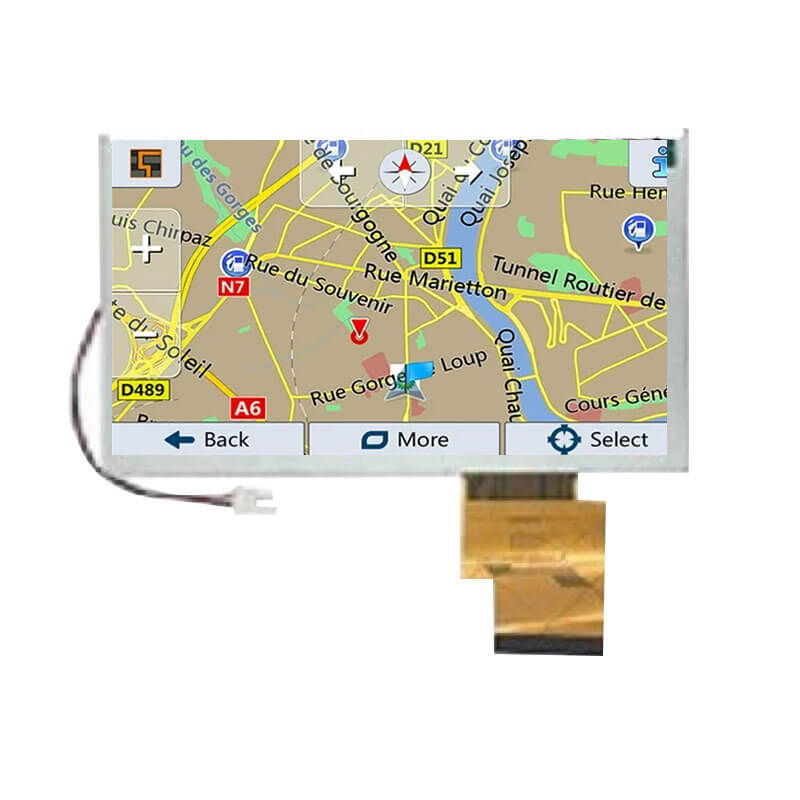

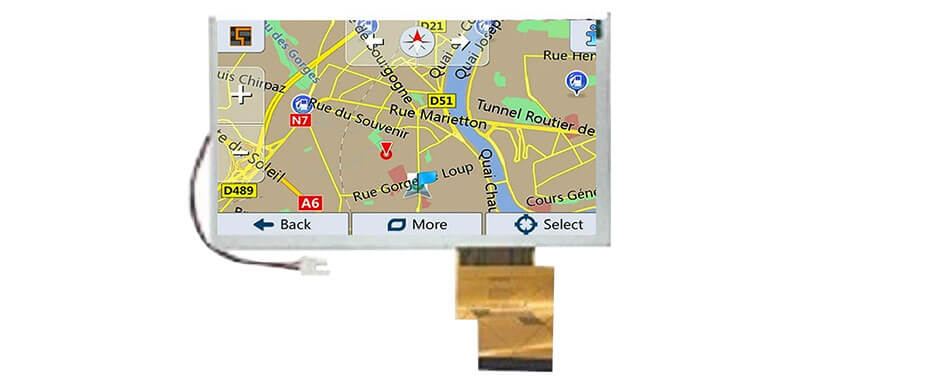

The ET062WV01-S is a 6.2-inch wide-temperature, high-brightness TFT LCD display module. It features a resolution of 800x480, utilizes a Parallel RGB (1 ch,8-bit) interface, and provides a brightness of 600 nits. The module operates in a wide temperature range of -30°C to 85°C, with a storage range of -40°C to 85°C. Its active display area measures 137.52x77.232 mm, housed within an outline dimension of 155.2x88.2 mm. The viewing angles are 65/65/55/65 (L/R/U/D, typical), and the module does not incorporate touch functionality.

More 6.2 Inch Wide Temperature Displays For Reference
ET062WV01-S (LCD, 800×480, TTL, IPS, 600nits, -30~85°C, 155.2×88.2mm)
ET062WS01-F (LCD, 1024×600, MIPI, IPS, 1500nits, -30~80°C, 144.33×88.16mm)
ET062WS02-F (LCD, 1024×600, Serial RGB, IPS, 1500nits, -30~80°C, 144.33×88.16mm)
ET062WS01-GL (LCD, 1024×600, LVDS, IPS, 1000nits, -30~85°C, 154.7×87.7mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
