5.1"-7" LCD Display (6")

6 Inch Wide Temperature LCD Display 640×1280 LVDS -30°C to 85°C High Brightness 1000nit TFT LCD Display

Part No.:ET060WX01-GL
Size:6″ inch
Resolution:640x1280
Panel Interface:LVDS
Display mode:Transmissive

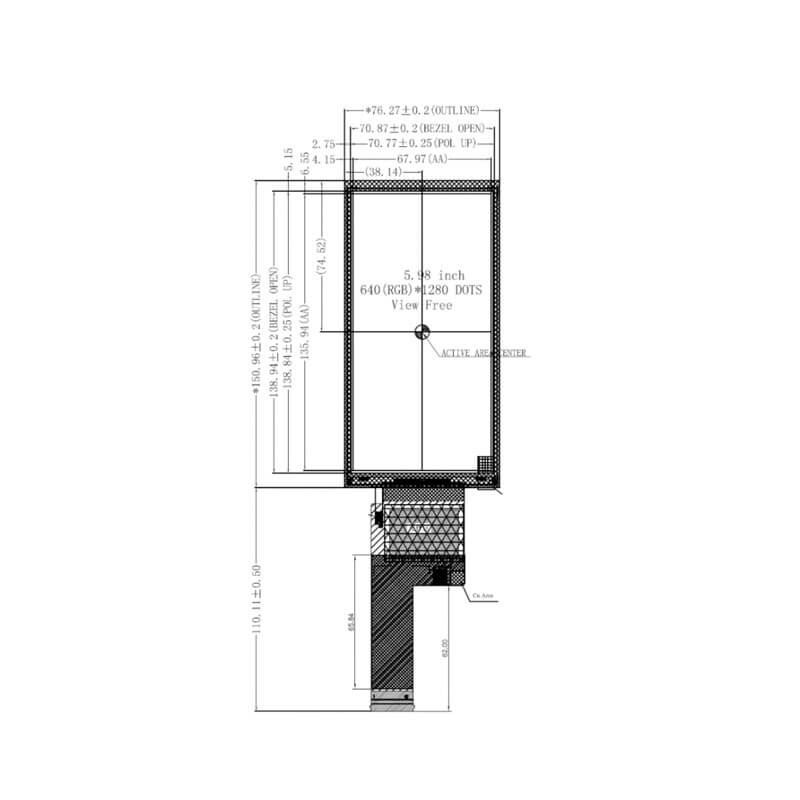

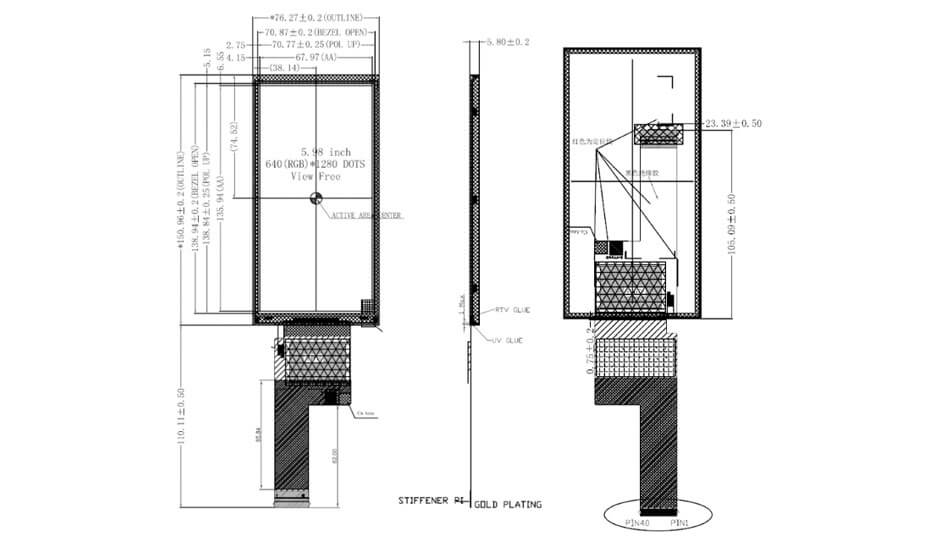

Outline Dimension:76.47x151.16mm
Active Area:67.97x135.94mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000nits
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

6 Inch Wide Temperature LCD Display Overview
6 Inch Wide Temperature LCD Display 640×1280 LVDS -30°C to 85°C High Brightness 1000nit TFT LCD Display.

More 6 Inch Wide Temperature Displays For Reference

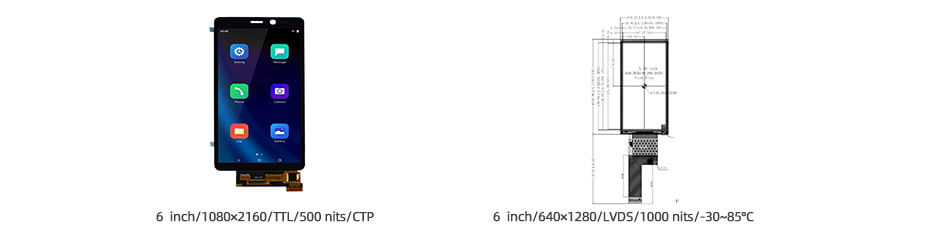

ET060WF01-YXT (OLCD, 1080×2160, MIPI, IPS, 300nits, -40~70°C, 80×154.5mm, CTP)
ET060WX01-GL (LCD, 640×1280, LVDS, IPS, 1000nits, -30~85°C, 76.47×151.16mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
