5.1"-7" LCD Display (6.2")

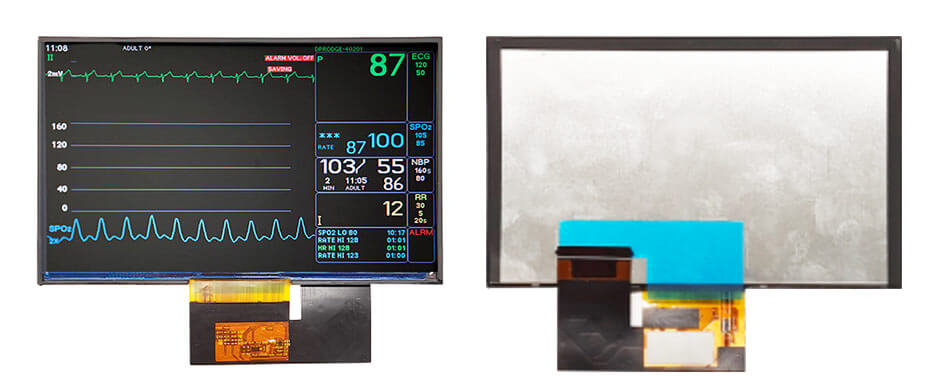

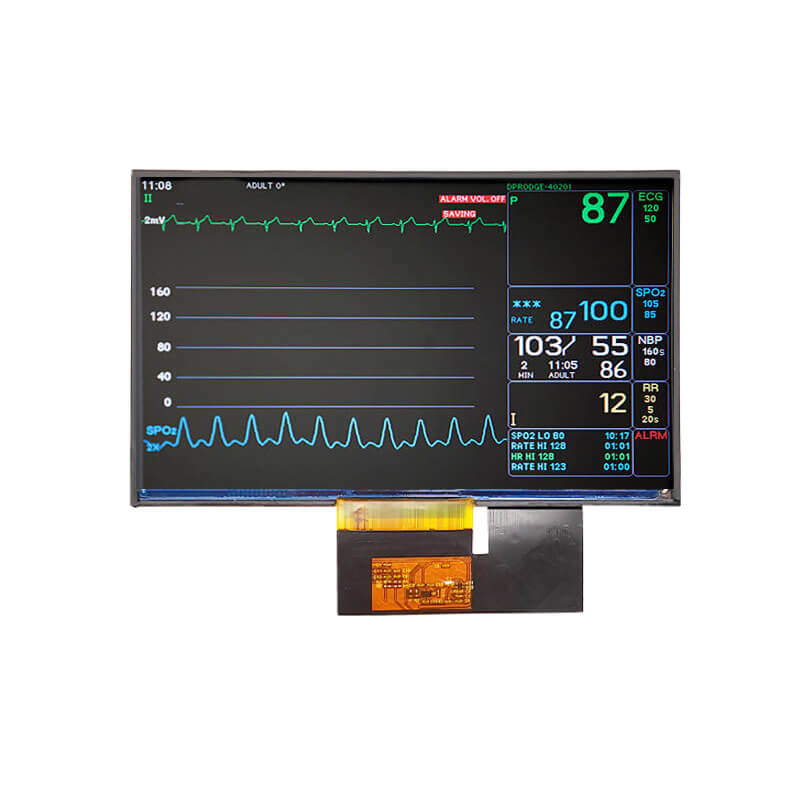

6.2 Inch Wide Temperature LCD Display 1024×600 MIPI -30°C to 80°C High Brightness 1500nits TFT LCD Display

  • Part No.:ET062WS01-F
  • Size:6.2″ inch
  • Resolution:1024x600
  • Panel Interface:MIPI
  • Display mode:Transmissive
  • Outline Dimension:144.33x88.16mm
  • Active Area:137.472x77.232mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):1500nits
  • Operation / Storage Temp:-30~80°C / -30~85°C
  • Touch:no


6.2 Inch Wide Temperature LCD Display Overview
6.2 Inch Wide Temperature LCD Display 1024×600 MIPI -30°C to 80°C High Brightness 1500nits TFT LCD Display.


More 6.2 Inch Wide Temperature Displays For Reference
ET062WV01-S (LCD
, 800×480, TTL, IPS, 600nits, -30~85°C, 155.2×88.2mm)
ET062WS01-F (LCD, 1024×600, MIPI, IPS, 1500nits, -30~80°C, 144.33×88.16mm)
ET062WS02-F (LCD, 1024×600, Serial RGB, IPS, 1500nits, -30~80°C, 144.33×88.16mm)
ET062WS01-GL (LCD, 1024×600, LVDS, IPS, 1000nits, -30~85°C, 154.7×87.7mm)
