5.1"-7" LCD Display (6.2")

6.2 Inch 4K 3840x2400 Monochrome LCD Display MIPI IPS LCD Module For 3D Printer

Part No.:ET062UH01-D
Size:6.2″ inch
Resolution:3840x2400
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:138.56x92.82mm
Active Area:134.4x84mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:/
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

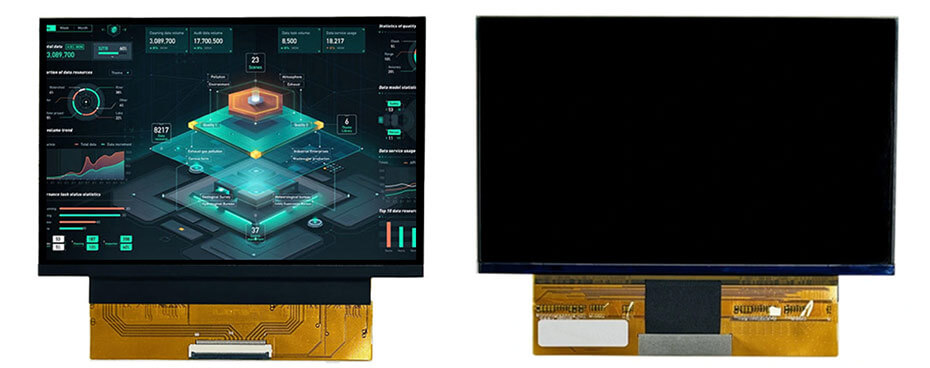

6.2 Inch 4k Display Overview
ET062UH01-D is a 6.2-inch 4K monochrome IPS LCD display with a 3840 × 2400 resolution, designed for 3D printer applications. It features a transmissive display mode with a MIPI interface, an active area of 134.4 × 84 mm, and an outline dimension of 138.56 × 92.82 mm. The display supports a wide viewing angle of 85° left/right/up/down and operates within a temperature range of -20 to 70 °C for use and -30 to 80 °C for storage. This module does not include touch functionality, and its brightness specification is not provided.

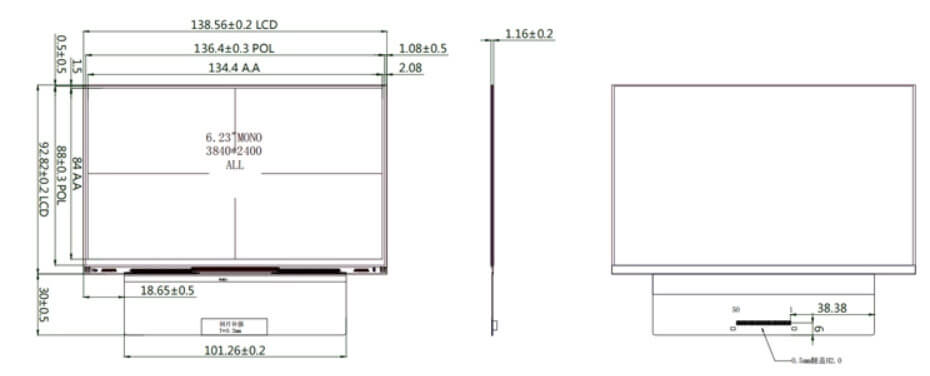

6.2 Inch 4k Display Drawing
