10.2"-17.3" LCD Display (13.3")

13.3 Inch 4K LCD Display 3840x2160 High Brightness 2000nits eDP IPS LCD Module For Digital Signage

Part No.:ET133UH01-R
Size:13.3″ inch
Resolution:3840x2160
Panel Interface:eDP
Display mode:Transmissive
Outline Dimension:298.96x177.21mm
Active Area:293.76x165.24mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:2000(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

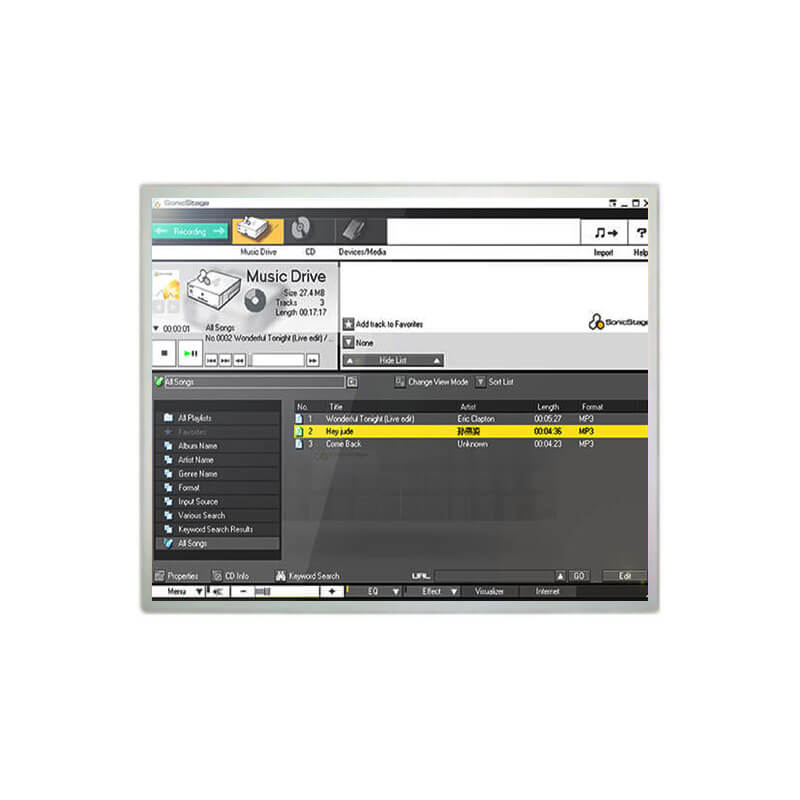

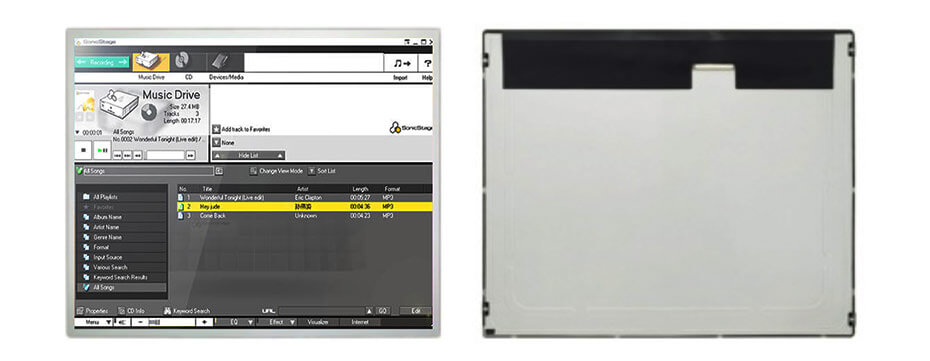

13.3 Inch 3840x2160 Display Overview
ET133UH01-R is a 13.3-inch 4K IPS LCD display module with a 3840 × 2160 resolution, designed for digital signage applications. It features a transmissive display mode with an eDP interface, an active area of 293.76 × 165.24 mm, and an outline dimension of 298.96 × 177.21 mm. The display offers a high brightness of 2000 cd/m² (typical) and supports wide viewing angles of 85° left/right/up/down. It operates within a temperature range of 0–50 °C and can be stored between -20–60 °C. This module does not include touch functionality.

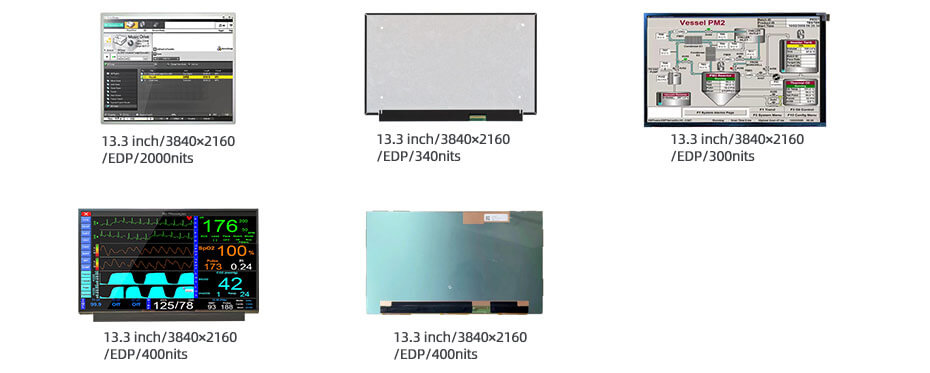

More 13.3 Inch 4k Display For Reference
ET133UH01-R (LCM, 3840x2160, eDP, 2000nits, 0~50°C, 298.96x177.21mm)
N133DCE-GP1 (LCM, 3840x2160, eDP, 340nits, 0~50°C, 299.46x186.67mm)
NE133QUM-N42 (LCM, 3840x2160, eDP, 300nits, 0~50°C, 298.76x176.42mm)
ATNA33TP11 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 297.76x186.34mm)
ATNA33TP10 (OLED, 3840x2160, eDP, 400nits, -20~70°C, 297.76x173.34mm)
