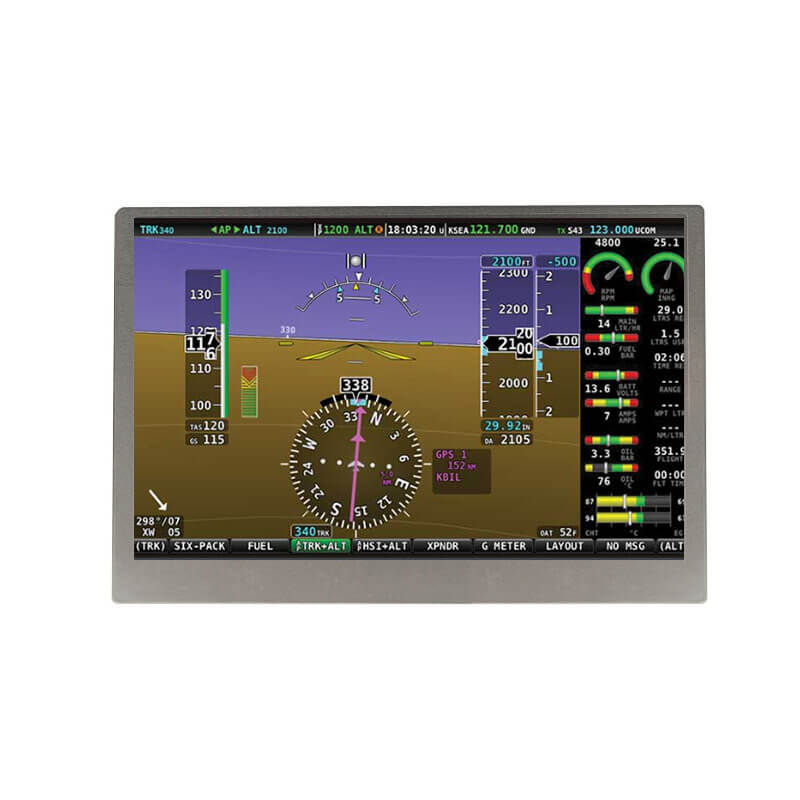

5 Inch TFT LCD Display 800×480 LVDS High Brightness Wide Temperature Display For Aerospace Display

5 Inch Aerospace Display Overview

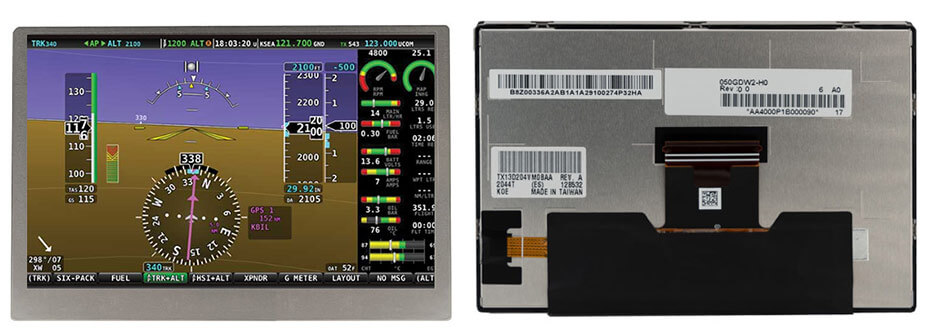

TX13D204VM0BAA is a 5.0 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, without backlight driver, without touch screen. TX13D204VM0BAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 121(W)×80(H)×9.3(D) mm, viewing area size of 110.4(W)×67.2(H) mm, net weight of 90.0g (Typ.). As a IPS, Normally Black LCM product, TX13D204VM0BAA can provides 1300 cd/m² display brightness 1300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. TX13D204VM0BAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 5 Inch Aerospace Display For Reference

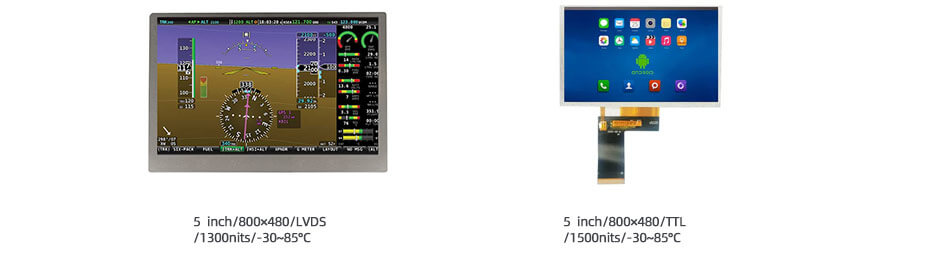

TX13D204VM0BAA (800×480, LVDS, 1300nits, -30~85°C, 121×80mm)
ET050WV06-T (800×480, TTL, 1500nits, -30~85°C, 120.7×75.8mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
