5.7 Inch TFT LCD Display 640×480 TTL High Brightness Wide Temperature Display For Aerospace Display

5.7 Inch Aerospace Display Overview

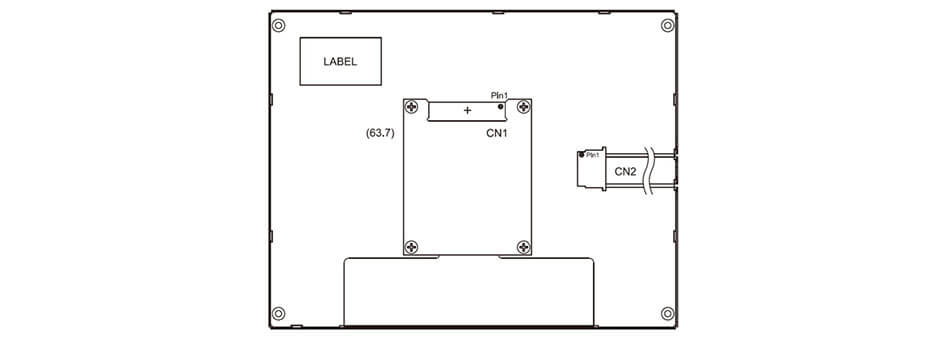

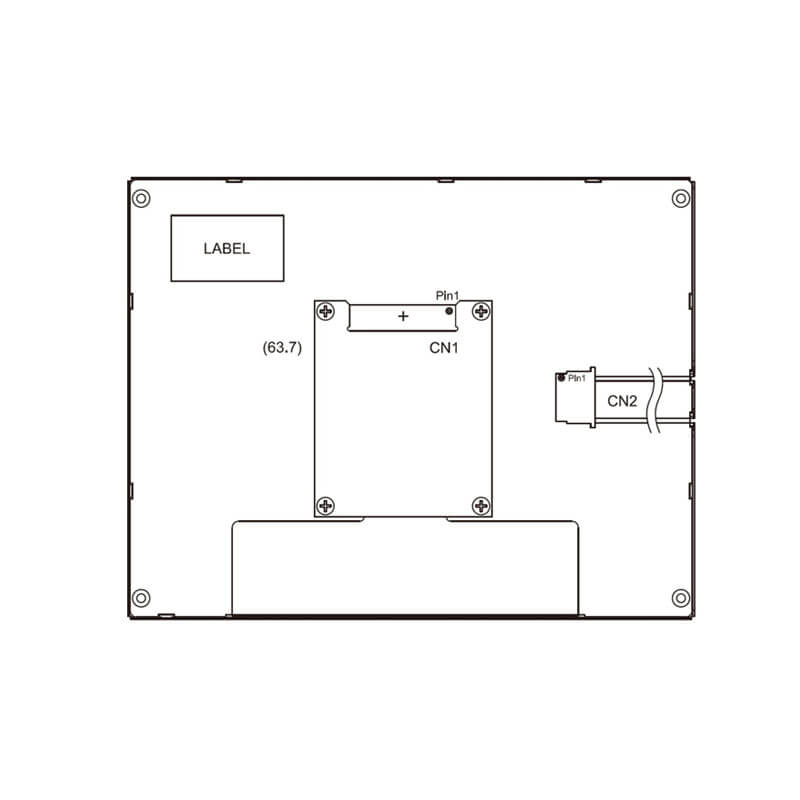

TX14D203VM0BAA supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 131(W)×102.2(H)×8.1(D) mm, viewing area size of 117(W)×88.2(H) mm, net weight of 104g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX14D203VM0BAA can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TX14D203VM0BAA utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

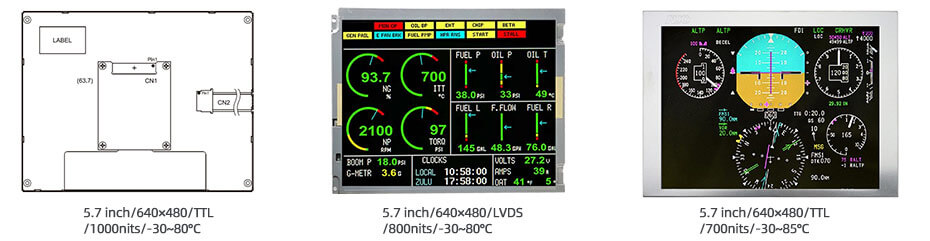

More 5.7 Inch Aerospace Display For Reference
TX14D203VM0BAA (640×480, TTL, 1000nits, -30~80°C, 131×102.2mm)
TX14D204VM0BAA (640×480, LVDS, 800nits, -30~80°C, 131×102.2mm)
G057VN01 V220 (640×480, LVDS, 700nits, -30~85°C, 144×104.6mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
