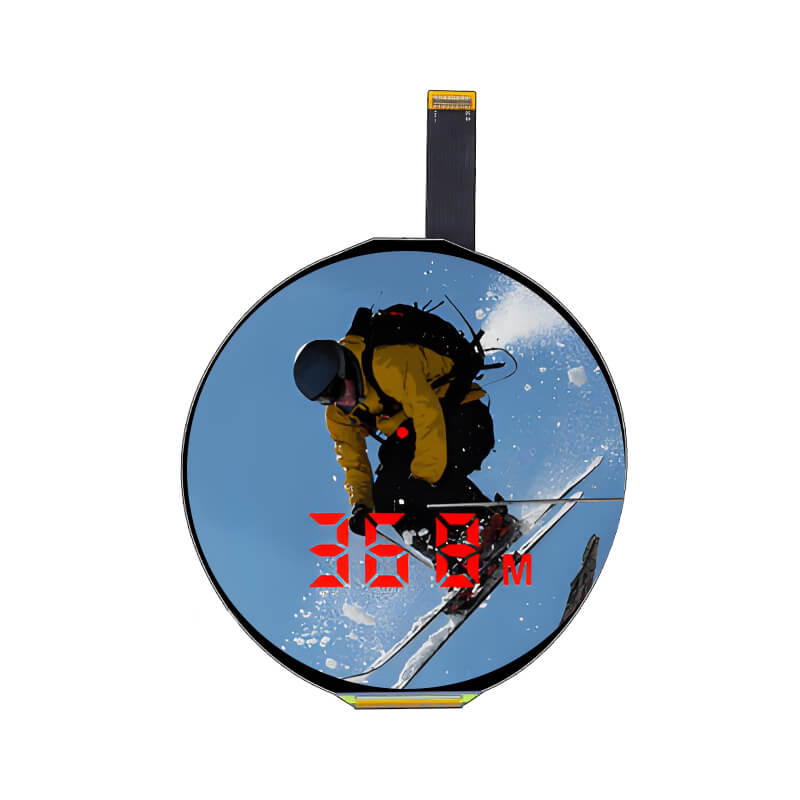

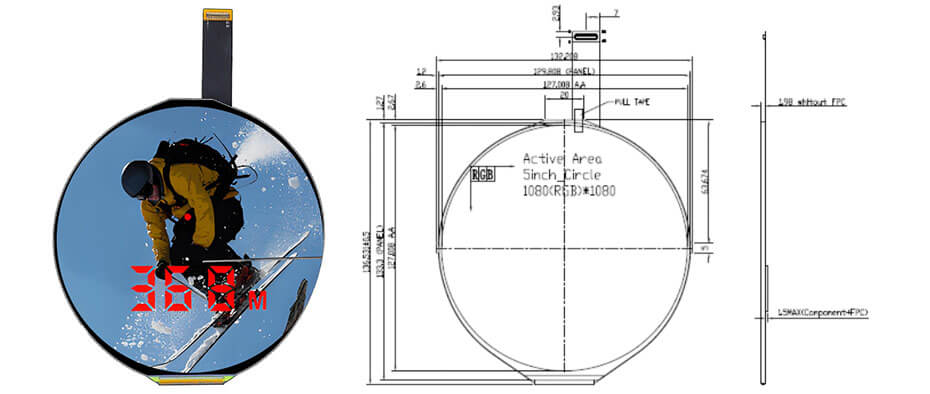

5 Inch TFT LCD Display 1080×1080 MIPI RGB Round Display for Measuring Rangefinder Display Solution OverviewET050CR01-JA is a 5-inch diagonal LTPS TFT-LCD display module designed for measuring rangefinder display solutions, instrument panels, and round display applications. ET050CR01-JA supports a resolution of 1080×1080 with a square pixel aspect ratio of 1:1 (W:H), featuring a flat circular form factor and IPS display technology. It features an active area of 127(W)×127(H) mm, an outline dimension of 136.53(W)×132(H) mm, and a maximum depth of 1.98 mm. ET050CR01-JA provides a typical brightness of 350 cd/m² and a typical contrast ratio of 1300:1, with viewing angles of 80/80/80/80 (L/R/U/D) and a symmetrical viewing direction. It utilizes a transmissive polarizer and a WLED backlight, delivering 16.7 million colors for vivid image reproduction. The module adopts a 50-pin MIPI/RGB interface for signal transmission and does not include a touch panel. With an operating temperature range of -20°C to 60°C and a storage temperature range of -30°C to 75°C, ET050CR01-JA is suitable for measuring rangefinders, round instrument displays, and other embedded applications requiring high-resolution circular display solutions.
More 5 Inch Healthcare & Medical Display Solution For Reference

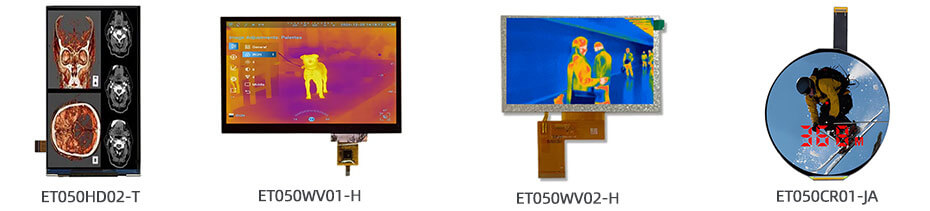

ET050HD02-T (LCM, 720×1280, MIPI, 450nits, 65.4×119.3mm, -20~70°C)
ET050WV01-H (LCM, 800×480, LVDS, 850nits, 127.3×83.92mm, -20~70°C)
ET050WV02-H (LCM, 800×480, TTL, 1000nits, 120.7×75.8mm, -30~85°C)
ET050CR01-JA (LCM, 1080×1080, MIPI/RGB, 350nits, 136.53×132mm, -20~60°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
