0.48"-5" Touch Screen (5")

5 Inch Industrial-grade Capacitive Touch Screen Multi-touch Water-touch Glove-wearing Touch For medical Industrial Instruments

Part No.:ET050CTP02
Size:5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:120.2x75.3mm
Active Area:108x64.8mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

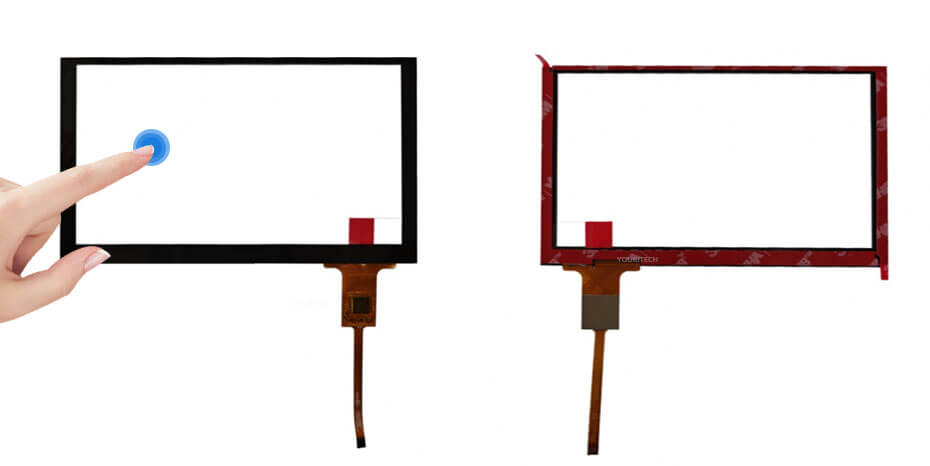

5 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 108x64.8 mm
Outline Dim.:120.2x75.3 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

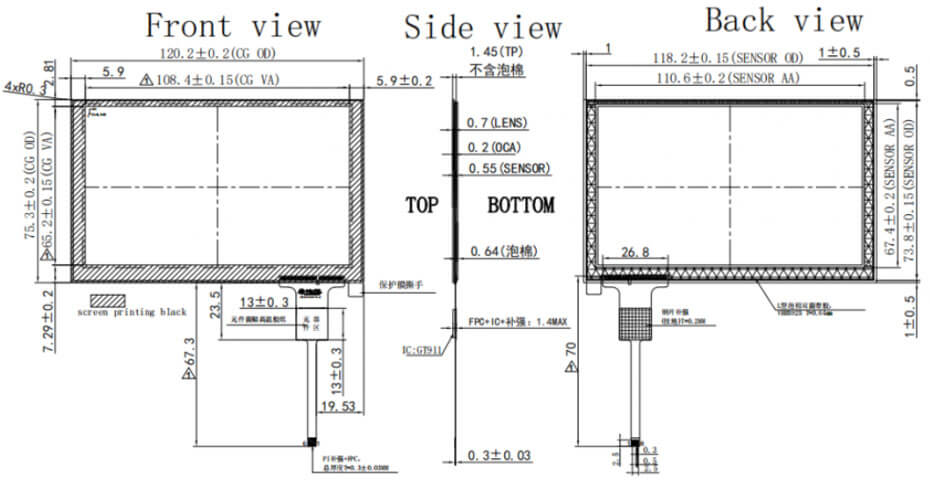

5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
