0.48"-5" Touch Screen (5")

5 Inch Capacitive Screen P+G FT5316 Industrial Control Industrial Medical Vehicle-mounted Security Touch-control Capacitive Touch Screen

Part No.:ET050CTP03
Size:5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:119.8x74.5mm
Active Area:119.6x74.3mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

5 Inch Capacitive Touch Screen
Product structure:PET/Glass
Surface hardness: Hard coating (2H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 119.6x74.3 mm
Outline Dim.:119.8x74.5 mm
Operation Temperature: -10 ~ 60 °C
Storage Temperature: -20 ~ 70 °C

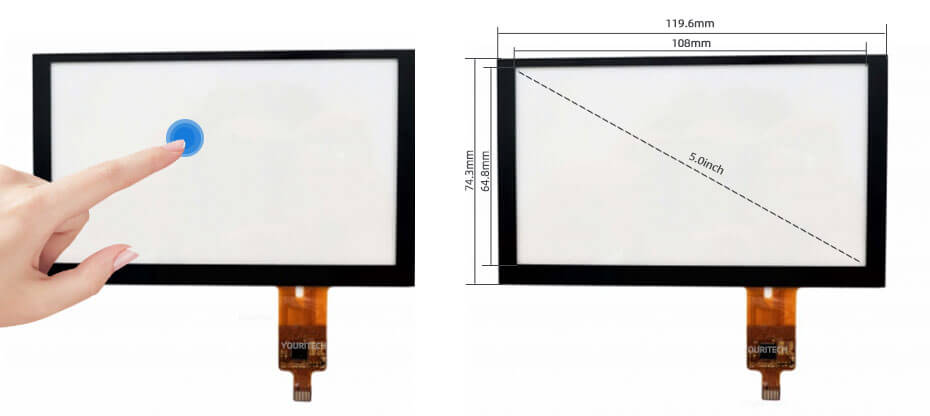

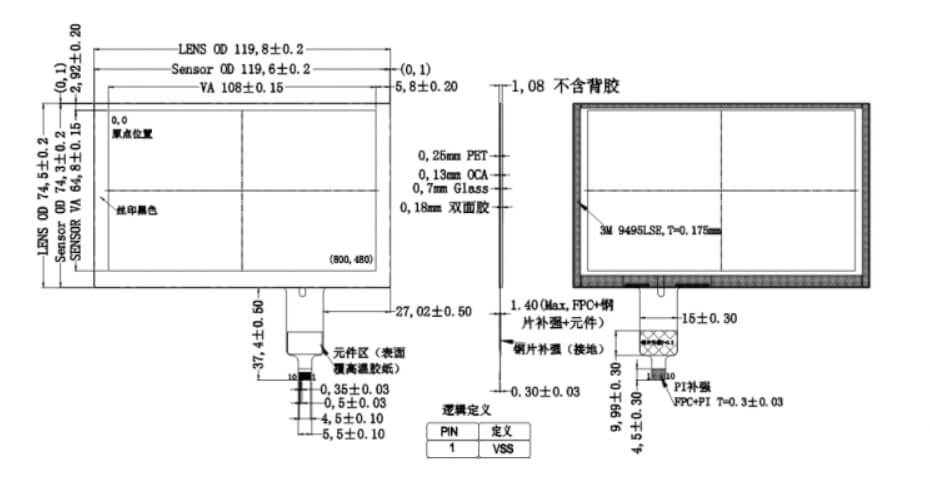

5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
