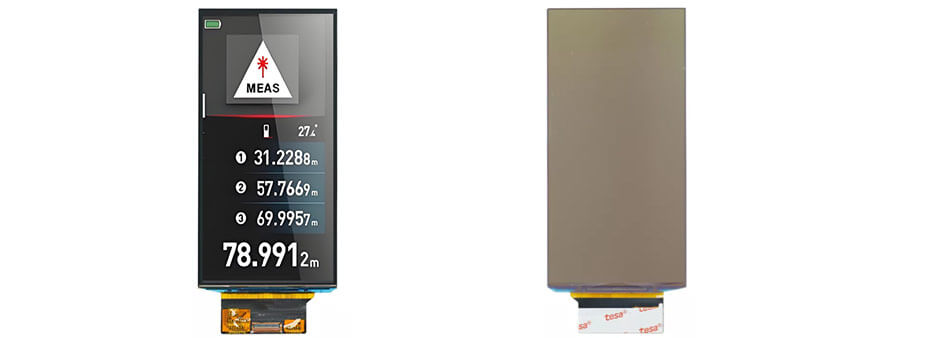

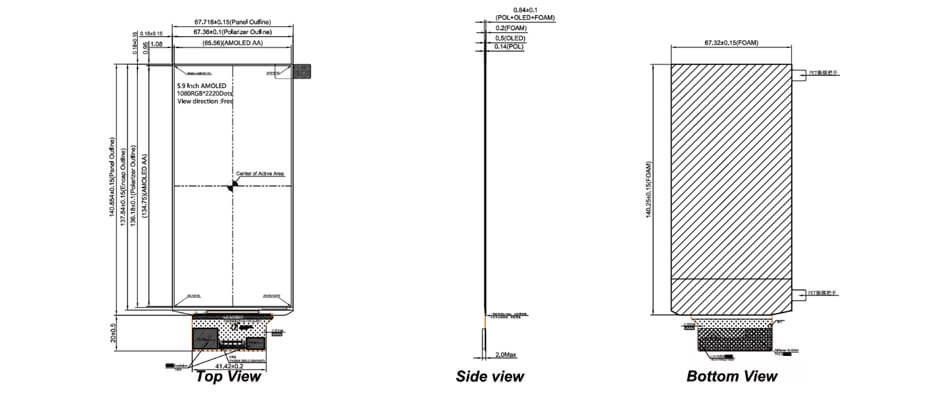

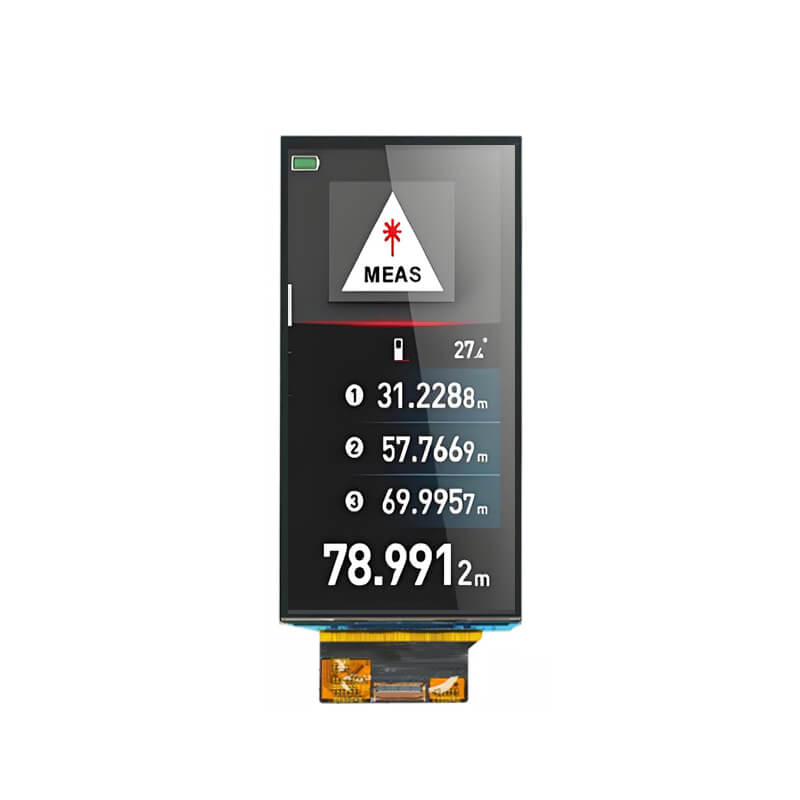

5.9 Inch OLED Display 1080×2244 MIPI AMOLED Display With Capacitive Touch for Measuring Rangefinder Display Solution OverviewET060AM01-F is a 5.9-inch AMOLED display module featuring a 1080 × 2244 resolution and a slim, flat rectangular design. With a typical brightness of 400 cd/m², a wide viewing angle of 80° in all directions, and support for 65K/262K display colors, this MIPI OLED display delivers clear images and vivid color performance for handheld and industrial applications. The module features a 65.56 × 134.75 mm active area, a compact 67.716 × 140.654 mm outline, and a maximum depth of just 0.84 mm, making it suitable for space-constrained equipment. Integrated with a projected capacitive touch panel (PCAP) and an SH8801A controller, it supports responsive touch interaction and MIPI interface connectivity. Designed for an operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +85°C, the ET060AM01-F is suitable for handheld devices, PDAs, industrial equipment, measuring instruments, and rangefinder display solutions requiring a high-resolution AMOLED display with touch functionality.
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
