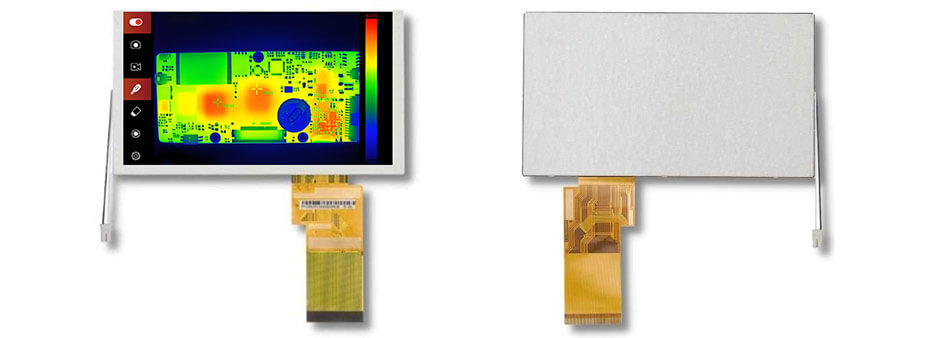

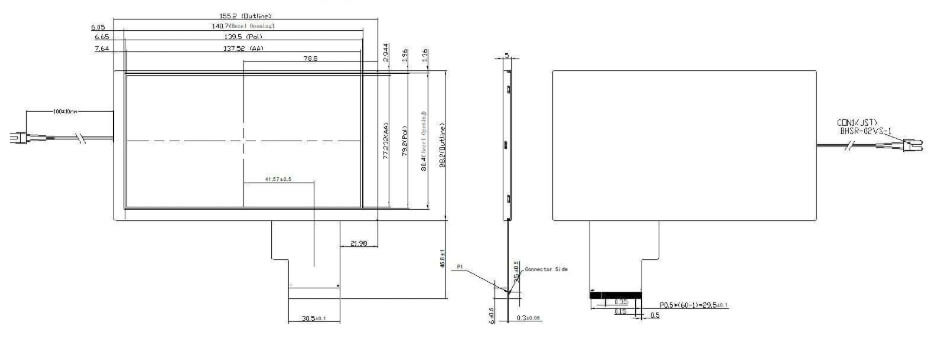

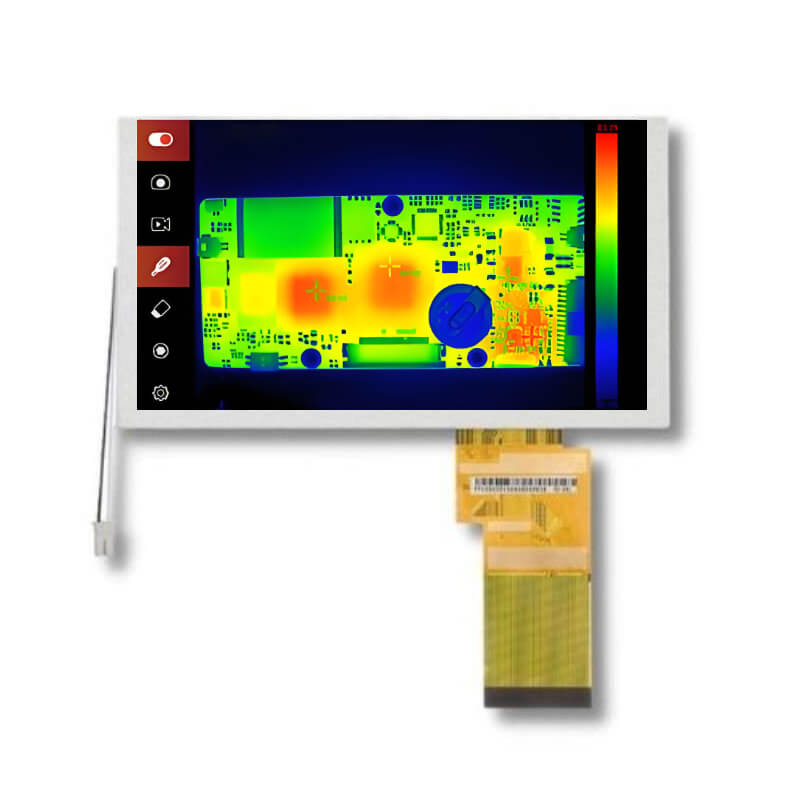

6.2 Inch TFT LCD Display 800×480 TTL High Brightness LCD Display for Measuring Rangefinder Display Solution OverviewET062WV01-TX is a 6.2-inch TFT LCD display module featuring an 800 × 480 WVGA resolution and a 16:9 aspect ratio. With a typical brightness of 500 cd/m², a 600:1 contrast ratio, and support for 16.7 million colors, this high-brightness LCD delivers clear, detailed images for industrial equipment and measuring instruments. The module features a 137.52 × 77.232 mm active area and a 155.2 × 88.2 mm outline dimension, with a maximum depth of 5 mm for practical system integration. Built with TN technology, a WLED backlight, and a TTL interface with 60 pins, it provides a straightforward display solution for embedded systems. Its viewing angles of 75°/75°/70°/70° and 6 o'clock viewing direction make it suitable for applications with a defined viewing position. Designed to operate in temperatures from -20°C to +70°C and withstand storage temperatures from -30°C to +80°C, the ET062WV01-TX is well suited for industrial displays, measuring instruments, rangefinders, and other equipment requiring a reliable 6.2-inch high-brightness TFT LCD without touch functionality.
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
