5.1"-7" LCD Display (5.8")

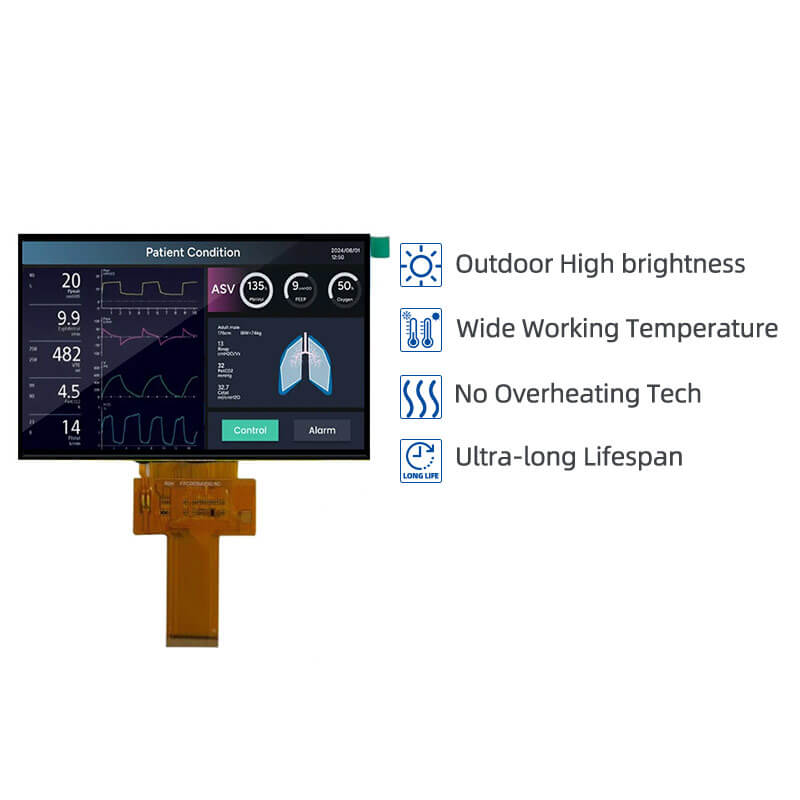

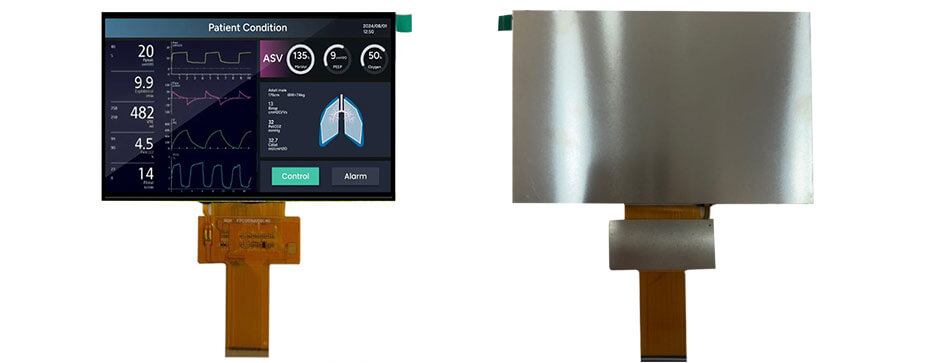

5.8 Inch High Brightness Display 880nits 852x600 MIPI/RGB Wide Temperature TFT LCD Display

  • Part No.:ET058WV01-R
  • Size:5.8″ inch
  • Resolution:852x600
  • Panel Interface:MIPI/RGB
  • Display mode:Transmissive
  • Outline Dimension:133.66x86.83mm
  • Active Area:127.76x77.88mm
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness（cd/m2）:880(Typ.)
  • Operation / Storage Temp:-30~80°C / -30~80°C
  • Touch:no
Get a quote

5.8 Inch High Brightness LCD Display Overview
5.8 Inch High Brightness Display 880nits 852x600 MIPI/RGB Wide Temperature TFT LCD Display.

More 5.8 Inch High Brightness LCD Display For Reference

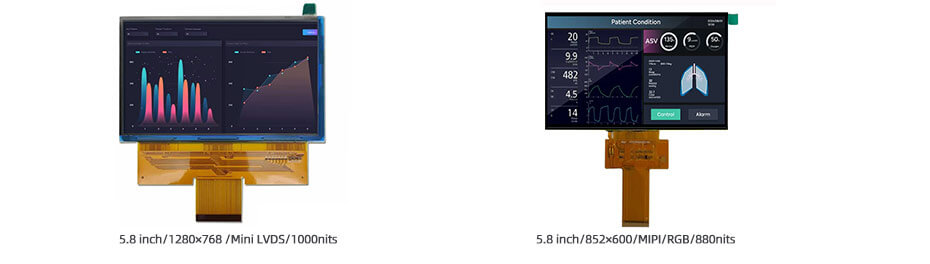

ET058HD01-RX (1280x768, Mini LVDS, 1000nits, -20~70°C, 137.488x84.7mm)
ET058WV01-R (852x600, MIPI/RGB, 880nits, -30~80°C, 133.66x86.83mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
