6 Inch High Brightness LCD Display Overview

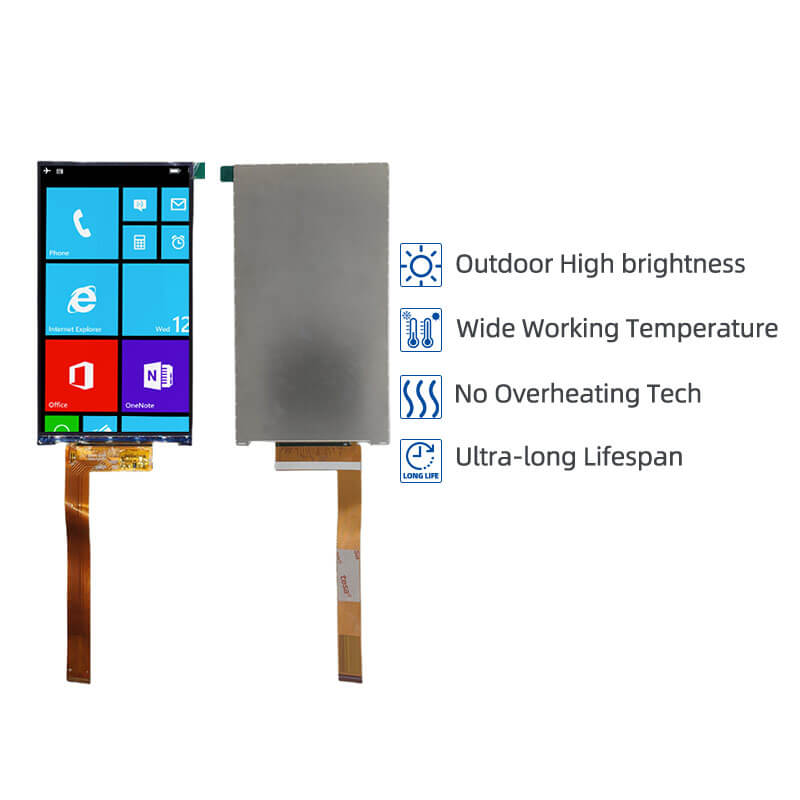

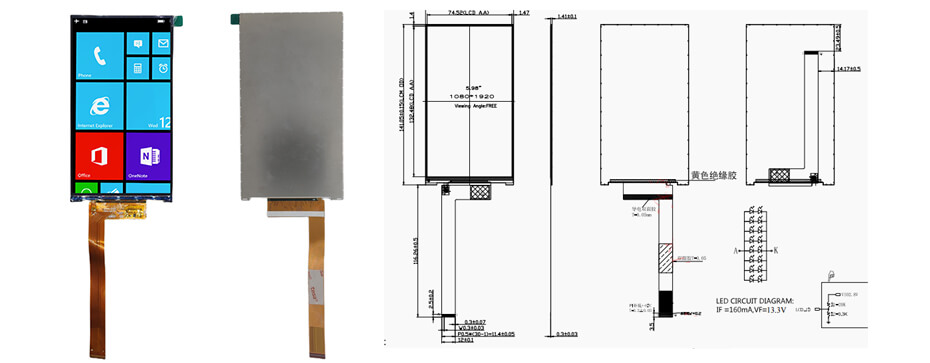

ET060FH01-AM is a 6-inch high-brightness TFT LCD display with a transmissive display mode. It supports a resolution of 1080×1920 and features a MIPI panel interface. The display provides a typical brightness of 800 cd/m², with an active area of 74.52 × 132.48 mm and an outline dimension of 77.46 × 141.05 mm. Viewing angles are 80° left/right/up/down, and it operates over a temperature range of –20 °C to 60 °C (operation) and –30 °C to 70 °C (storage). This model does not include touch functionality.
More 6 Inch High Brightness LCD Display For Reference

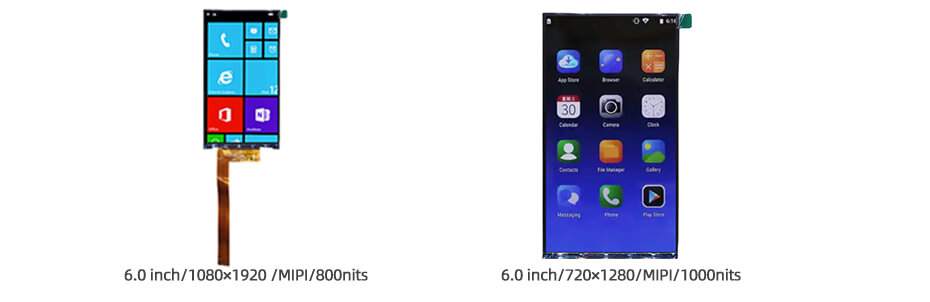

ET060FH01-AM (1080x1920, MIPI, 800nits, -20~60°C, 77.46x141.05mm)
ET060HD10-TT (720x1280, MIPI, 1000nits, -20~70°C, 87.52x149.14mm,CTP)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
