5.48 Inch 1080x1920 AMOLED Display Overview

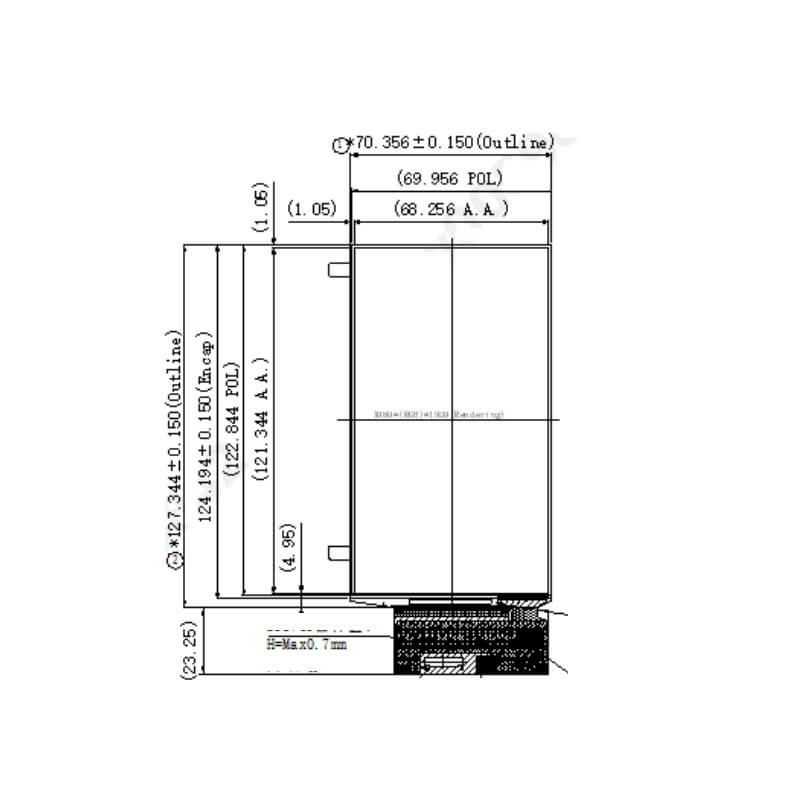

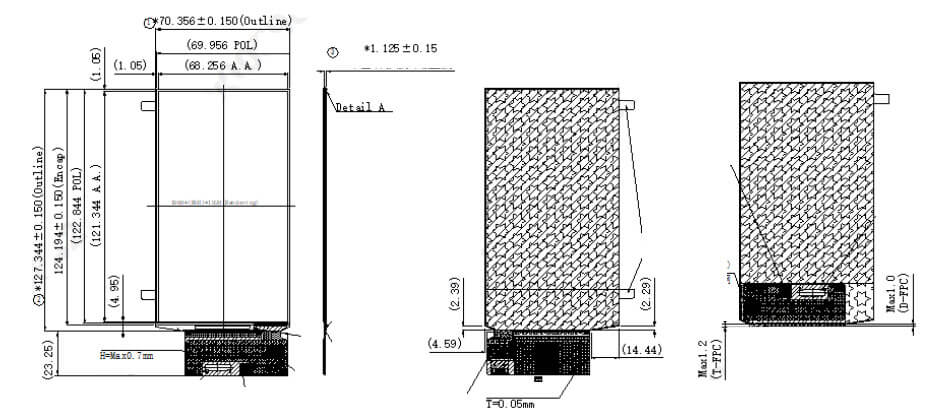

ET059AM01-GT is a 5.48-inch diagonal AMOLED display module featuring self-emissive technology. It supports a 1080 × 1920 (FHD) resolution with a 16:9 aspect ratio, delivering vivid colors and high contrast performance. The display utilizes a MIPI 4-lane interface and integrates on-cell touch functionality. It features an active area of 68.256 (W) × 121.344 (H) mm and a slim outline dimension of 70.356 (W) × 127.344 (H) × 1.125 (D) mm. ET059AM01-GT provides a typical brightness of 350 nits and supports an operating temperature range of –20 to 60 °C with a storage temperature range of –30 to 70 °C, making it suitable for compact and high-quality display applications.
5.48 Inch 1080x1920 AMOLED Display Application
For industrial & smart home appliances & medical instruments & wearable.
AMOLED Display List For Reference
| 0.95" | 180x120 | SPI |
| 120x240 | MIPI | |
| 1.1" | 126x294 | MIPI |
| 126x294 | MIPI | |
| 1.2" | 390x390 | MIPI |
| 390x390 | MIPI | |
| 390x390 | MIPI | |
| 1.28” | 416x416 | MIPI |
| 416x416 | MIPI | |
| 1.3" | 360x360 | MIPI |
| 128x128 | SPI , 10 pins , FPC | |
| 360x360 | MIPI | |
| 1.34" | 320x300 | MIPI |
| 1.39" | 454x454 | MIPI |
| 454x454 | MIPI | |
| 1.4" | 400x400 | MIPI |
| 320x360 | MIPI | |
| 320x360 | MIPI | |
| 1.43" | 466x466 | MIPI/SPI |
| 1.47" | 194x368 | MIPI |
| 1.5" | 200x228 | Parallel Data |
| 1.6" | 320x360 | MIPI |
| 320x360 | MIPI | |
| 320x360 | MIPI | |
| 1.64" | 280x456 | MIPI |
| 1.65" | 348x442 | MIPI |
| 348x442 | MIPI | |
| 1.7" | 348x442 | MIPI |
| 1.78" | 368x448 | MIPI |
| 368x448 | MIPI | |
| 1.9" | 240x536 | MIPI 40pins |
| 2.6 | 240x400 | CPU |
| 3.2" | 360x640 | MIPI |
| 3.3" | 480x800 | CPU/RGB/SPI |
| 480x854 | TTL | |
| 3.7 | 480x800 | TTL |
| 3.8 | 1080x1200 | MIPI |
| 5 | 720x1280 | MIPI |
| 5.5 | 720x1280 | MIPI |
| 1080×1920 | MIPI | |
| 1080×1920 | MIPI | |
| 10.5" | 2560x1600 | MIPI |
| 11 | 1728x2368 | MIPI |
| 11.5" | 2560x1600 | MIPI |
| 13.3 | 1920×1080 | eDP |
| 1536×2048 | eDP | |
| 3840×2160 | eDP | |
| 1920×1080 | eDP | |
| 14 | 3840×2400 | eDP |
| 15.6 | 3840×2160 | eDP |
| 1920×1080 | eDP | |
| 16 | 3840×2400 | eDP |
| 27 | 2560×1440 | V-by-One |
| Touch Screens are Available and Optional | ||
5.48 Inch 1080x1920 AMOLED Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
5.48 Inch 1080x1920 AMOLED Display Touch screen,standard type and customization
5.48 Inch 1080x1920 AMOLED Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
5.48 Inch 1080x1920 AMOLED Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
