5.1"-7" AMOLED

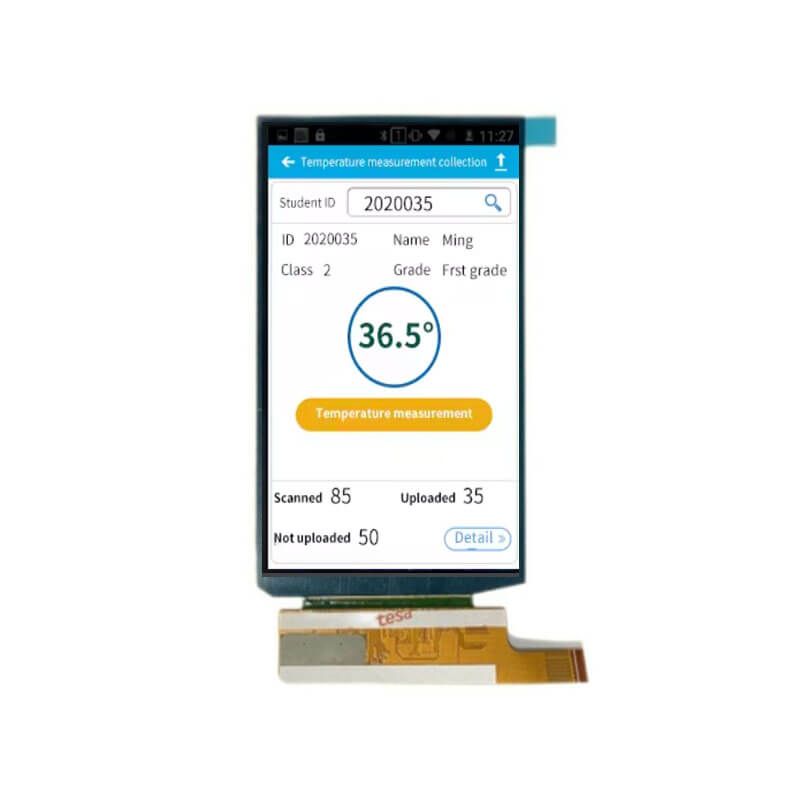

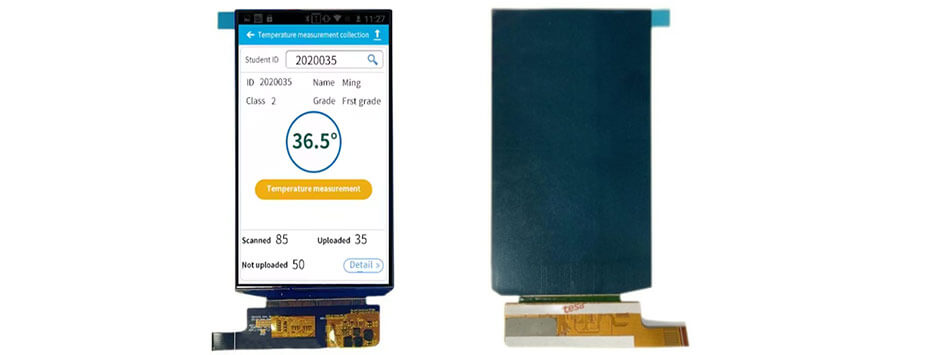

5.4 Inch Wide Temperature OLED Display 1080×1920 MIPI -40°C to 70°C AMOLED Display

Part No.:ET055FH01-HG
Size:5.4″ inch
Resolution:1080x1920
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:69.74x126.6mm
Active Area:67.82x120.58mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:350nits
Operation / Storage Temp:-40~70°C / -40~85°C
Touch:no

5.4 Inch Wide Temperature OLCD Display Overview
5.4 Inch Wide Temperature OLED Display 1080×1920 MIPI -40°C to 70°C AMOLED Display.

More 5.4 Inch Wide Temperature Displays For Reference
ET055FH01-HG (OLCD, 1080×1920, MIPI, IPS, 350nits, -40~70°C, 69.74×126.6mm)
ET055FH02-HGT (OLCD, 1080×1920, MIPI, IPS, 350nits, -40~70°C, 81×138.2mm, CTP)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
