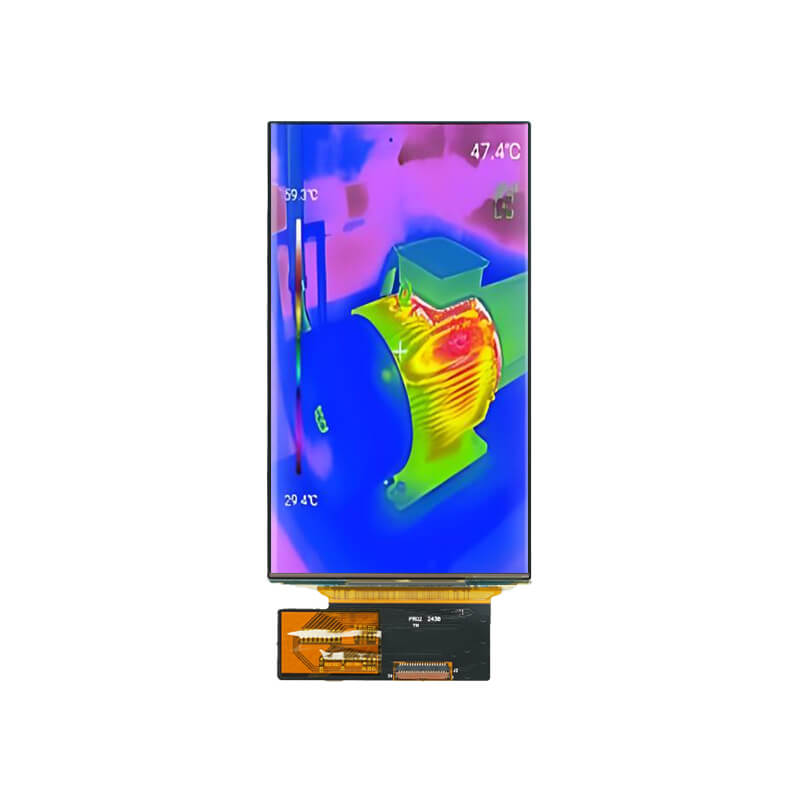

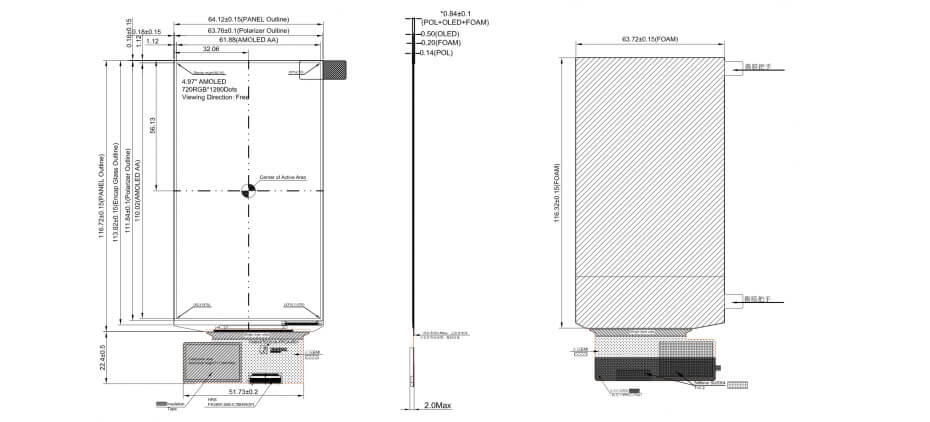

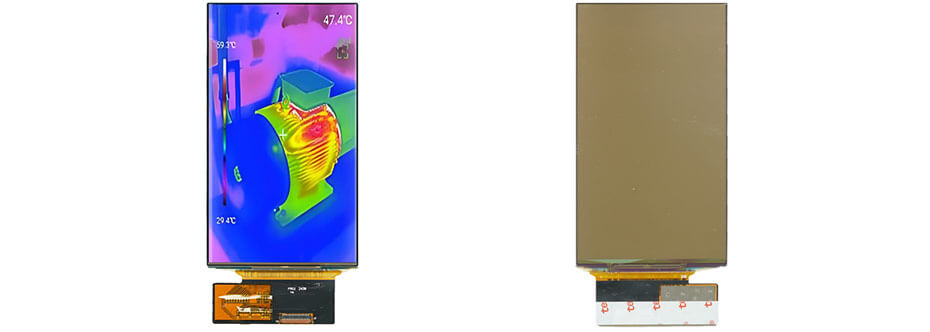

4.97 Inch OLED Display720×1280 MIPI AMOLED Display With Capacitive Touch for Measuring Rangefinder Display Solution OverviewET049AM01-F is a 4.9-inch diagonal AM-OLED display module with capacitive touch, designed for measuring rangefinder display solutions and industrial instrumentation applications. ET049AM01-F supports a resolution of 720×1280 with an aspect ratio of 9:16 (W:H), featuring a flat rectangular form factor. It features an active area of 61.884(W)×110.016(H) mm, an outline dimension of 64.12(W)×116.72(H) mm, and a maximum depth of 0.84 mm. ET049AM01-F provides a typical brightness of 350 cd/m² and supports 65K/262K display colors, with viewing angles of 85/85/85/85 (L/R/U/D) for consistent visibility from different directions. The module is equipped with an RM67295 controller and utilizes a 39-pin MIPI interface for signal transmission. It integrates a PCAP capacitive touch panel for responsive touch operation. With an operating temperature range of -20°C to 60°C and a storage temperature range of -40°C to 70°C, ET049AM01-F is suitable for measuring rangefinders, industrial instruments, and other compact embedded display applications requiring high-resolution AMOLED visuals and touch functionality.
More 4.9 Inch Healthcare & Medical Display Solution For Reference

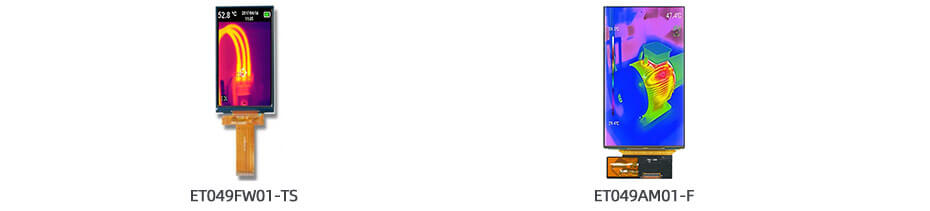

ET049FW01-TS (LCM, 480×854, MIPI, 450nits,66.4×120.05mm, -20~70°C)
ET049AM01-F (OLED, 720×1280, MIPI, 350nits, 64.12×116.72mm, -20~60°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
