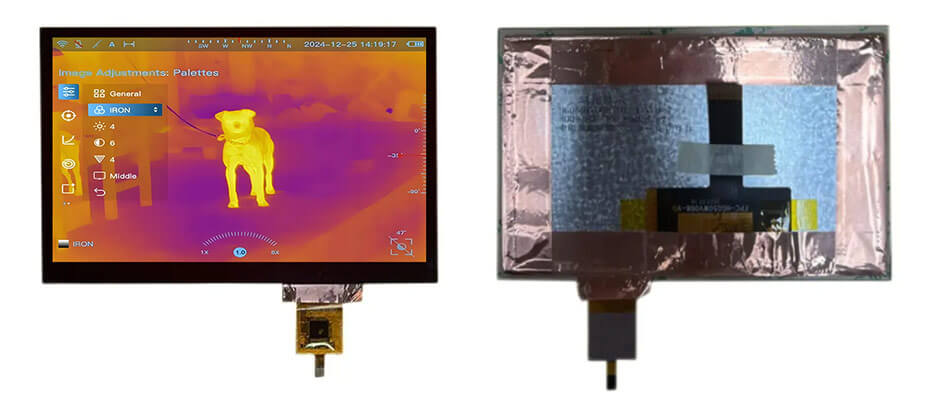

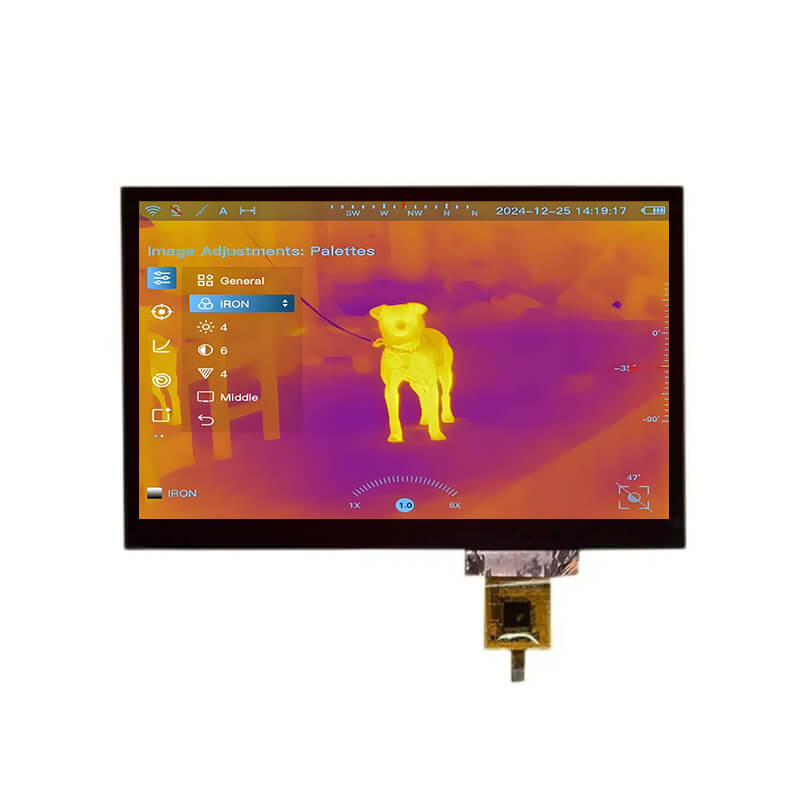

5 Inch TFT LCD Display 800×480 LVDS High Brightness LCD Display for Measuring Rangefinder Display Solution OverviewET050WV01-H is a 5-inch diagonal a-Si TFT-LCD display module designed for measuring rangefinder display solutions, industrial instrumentation, and outdoor high-brightness applications. ET050WV01-H supports a resolution of 800×480 with an aspect ratio of 15:9 (W:H), featuring a flat rectangular form factor and IPS display technology. It features an active area of 108(W)×64.8(H) mm, an outline dimension of 127.3(W)×83.92(H) mm, and a maximum depth of 5.53 mm. ET050WV01-H provides a typical brightness of 850 cd/m² and a typical contrast ratio of 500:1, with viewing angles of 80/80/80/80 (L/R/U/D) and a symmetrical viewing direction. It utilizes a transmissive polarizer and a WLED backlight, delivering 16.7 million colors for vivid image reproduction. The module adopts a 20-pin LVDS interface for reliable signal transmission and does not include a touch panel. With an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C, ET050WV01-H is suitable for measuring rangefinders, outdoor instruments, industrial control equipment, and other applications requiring a high-brightness LCD display.

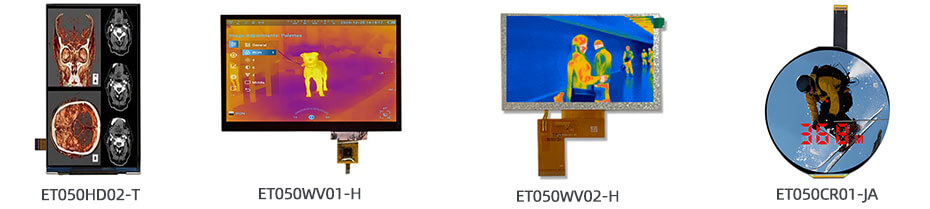

More 5 Inch Healthcare & Medical Display Solution For Reference
ET050HD02-T (LCM, 720×1280, MIPI, 450nits, 65.4×119.3mm, -20~70°C)
ET050WV01-H (LCM, 800×480, LVDS, 850nits, 127.3×83.92mm, -20~70°C)
ET050WV02-H (LCM, 800×480, TTL, 1000nits, 120.7×75.8mm, -30~85°C)
ET050CR01-JA (LCM, 1080×1080, MIPI/RGB, 350nits, 136.53×132mm, -20~60°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
