4.2 Inch Transflective Display 300x400 4-wire SPI 500nits Sunlight Readable LCD Display For Handheld PDA

Part No.:HSD042GPW1-90000D-MX
Size:4.2″ inch
Resolution:300x400
Panel Interface:4-wire SPI
Display mode:Transflective

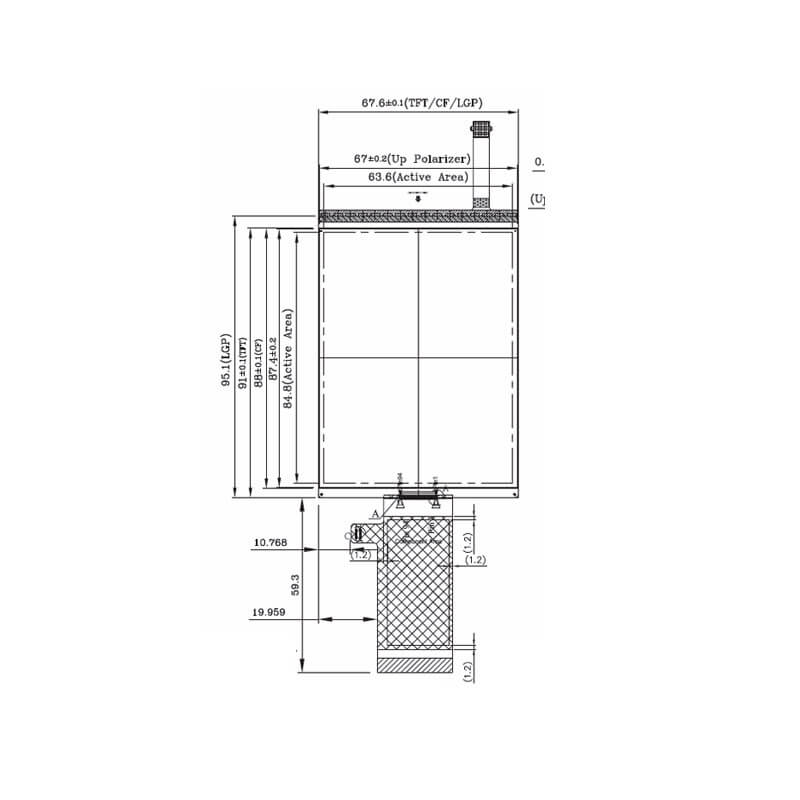

Outline Dimension:67.6x95.1mm
Active Area:63.6x84.8mm
Viewing Angle L/R/U/D:60/60/60/60 (Typ.)
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

4.2 Inch Transflective LCD Display Overview
The HSD042GPW1-90000D-MX is a 4.2-inch transflective LCD display designed for handheld PDAs. It features a 300×400 resolution with a 4-wire SPI interface. The display offers an active area of 63.6×84.8 mm within an outline size of 67.6×95.1 mm. It provides a typical brightness of 500 cd/m², viewing angles of 60°/60°/60°/60° (L/R/U/D), and operates in temperatures from –20 °C to 70 °C, with storage from –30 °C to 80 °C. This model does not include touch functionality.
