0.48"-5" LCD Display (3.7")

3.7 Inch Transflective Display 480x640 Parallel RGB Sunlight Readable LCD Display With 4-wire Resistive Touch

Part No.:TM037WBHT01
Size:3.7″ inch
Resolution:480x640
Panel Interface:Parallel RGB (1 ch,6-bit)
Display mode:Transflective
Outline Dimension:65x89mm
Active Area:58.16x75.88mm
Viewing Angle L/R/U/D:50/55/45/55 (Typ.)
Brightness（cd/m2）:155cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

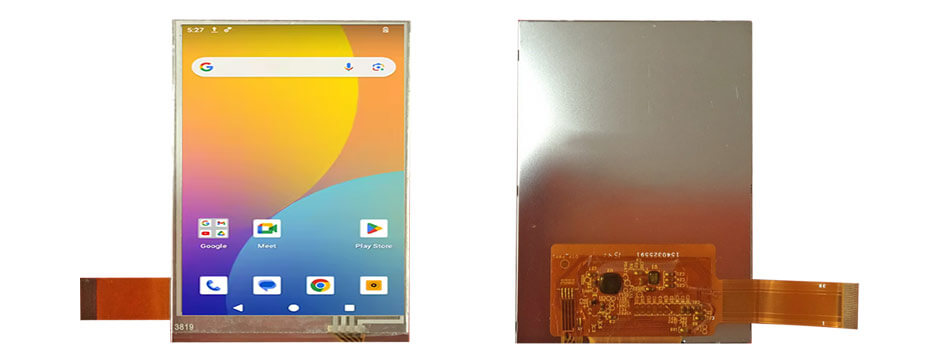

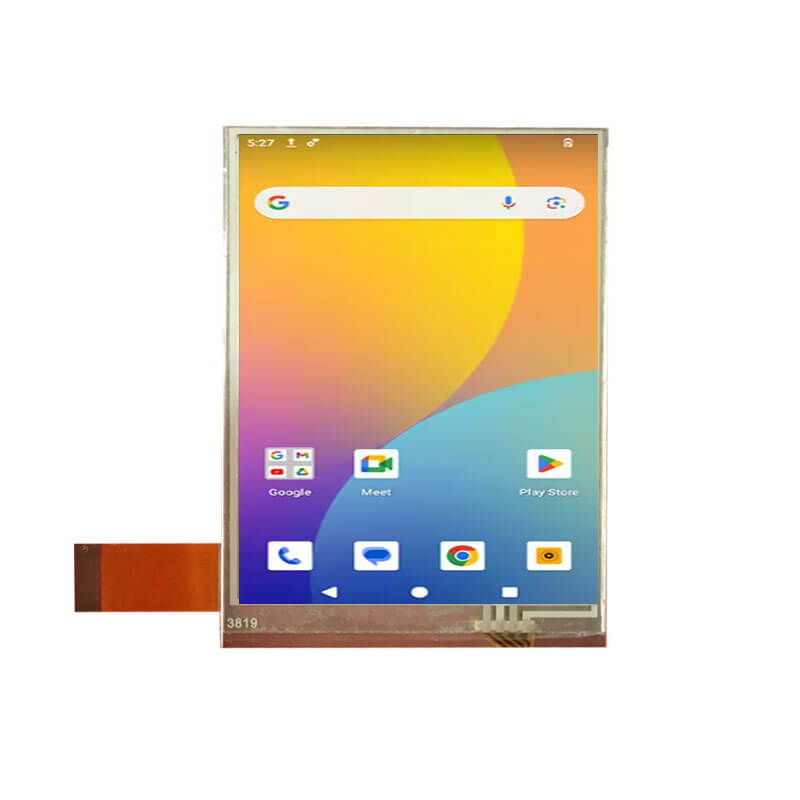

3.7 Inch Transflective LCD Display Overview
3.7 Inch Transflective Display 480x640 Parallel RGB Sunlight Readable LCD Display With 4-wire Resistive Touch.

More 3.7 Inch Transflective LCD Display For Reference
TM037WDHT01 (480x640, TTL, 200nits, -20~70°C, 65x89mm)
TM037WBHT01 (480x640, TTL, 155nits, -20~70°C, 65x89mm, 4w-RTP Touch)
