3 Inch Wide Temperature LCD Display Overview

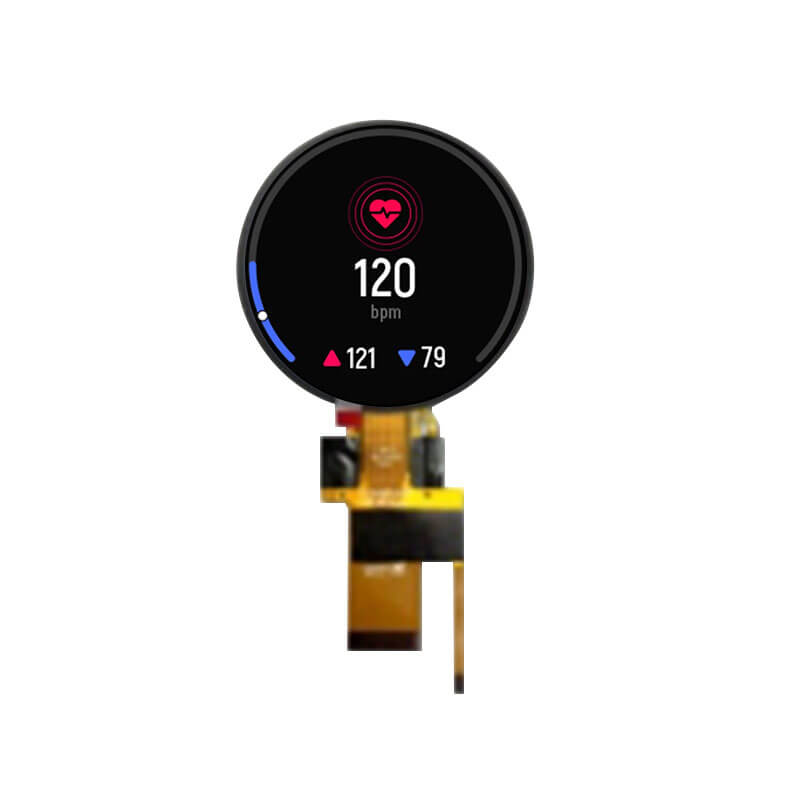

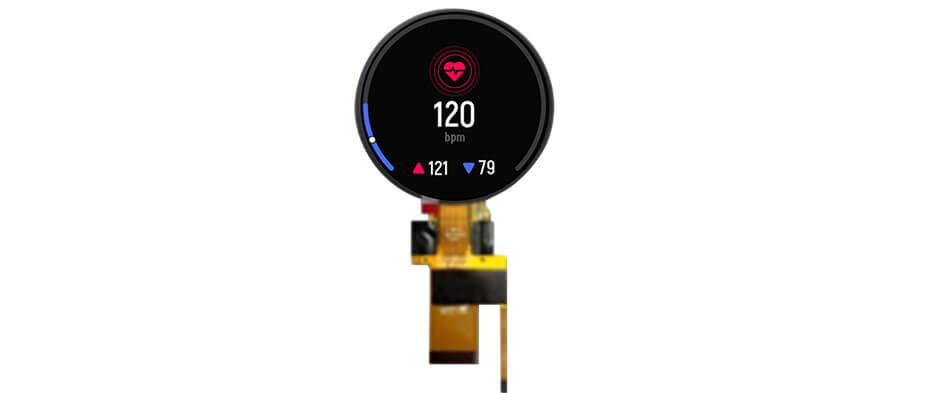

ET030WT01-TS is a 3-inch diagonal TFT-LCD display module product, featuring a normally white display mode. ET030WT01-TS supports a resolution of 432×432 with a square aspect ratio, delivering clear and balanced image performance. It adopts a TTL interface for stable signal transmission, with pixels arranged to ensure reliable visual quality. It features an active area of 76.4(W) × 76.4(H) mm and an outline size of 94(W) × 94(H) mm. ET030WT01-TS provides a high brightness of 500 cd/m² and supports full viewing angles, ensuring excellent visibility from all directions. Designed for wide temperature environments, it operates within a range of -30°C to 85°C with the same storage temperature range, and it does not include a touch function.

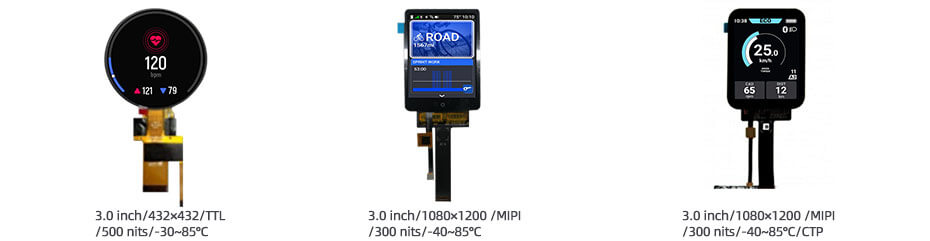

More 3 Inch Wide Temperature Displays For Reference
ET030WT01-TS (LCD, 432×432, TTL, IPS, 500nits, -30~85°C, 94×94mm)
ET030WT01-ZC (LCD, 1080×1200, MIPI, IPS, 300nits, -40~85°C, 52.91×62.58mm)
ET030WT01-HGT (LCD, 1080×1200, MIPI, IPS, 300nits, -40~85°C, 62.06×80.06mm, CTP)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
