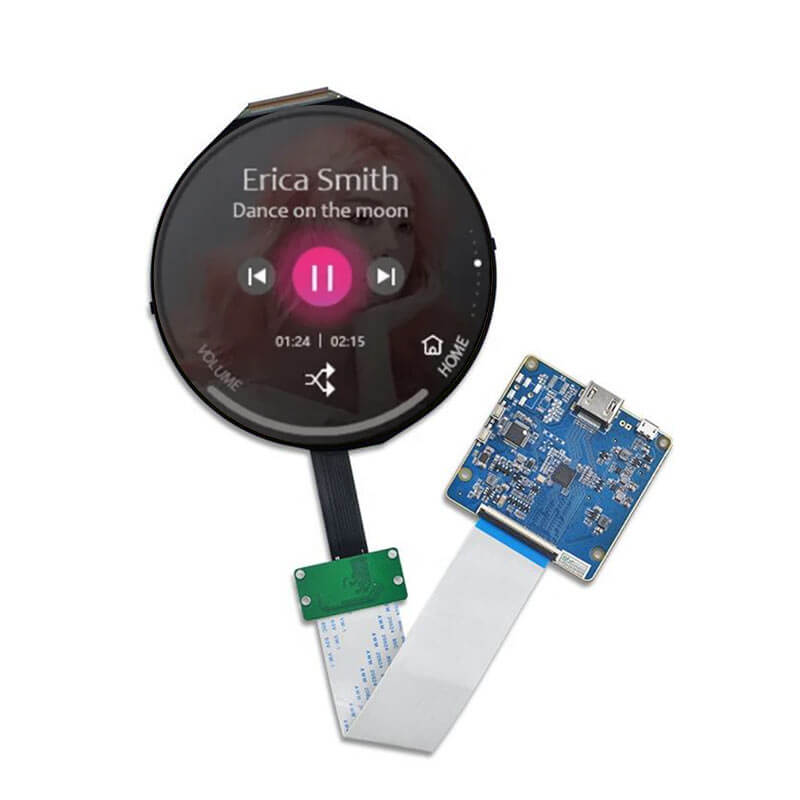

ZS050YMM-N40 5 Inch TFT LCD Display 1080x1080 MIPI Circular Display With Board

5 Inch LCD Display Overview

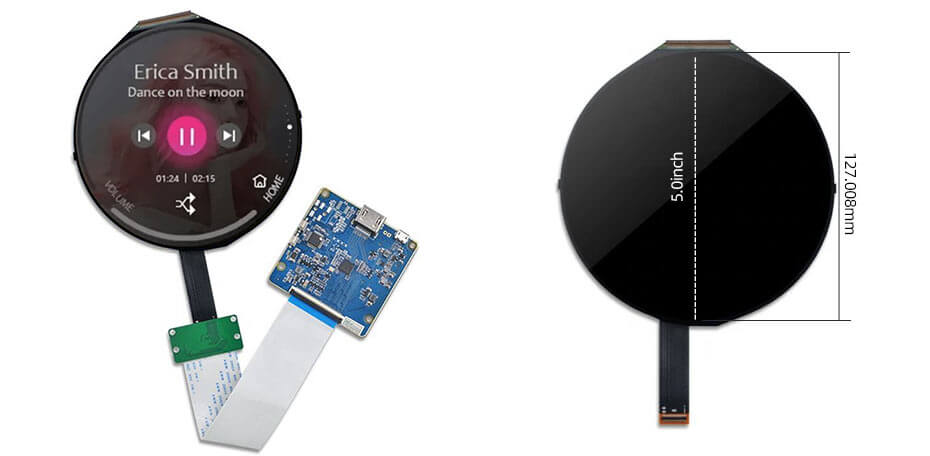

ZS050YMM-N40 supports display 1080(RGB)×1080 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 127.008(W)×127.008(H) mm, outline size of 182.22(W)×182.22(H)×5.75(D) mm. As a ADS, Normally Black, Transmissive LCM product, ZS050YMM-N40 can provides 400 cd/m² display brightness 1300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. ZS050YMM-N40 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 1.8/5.0/-5.0V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
