3.5 Inch Capacitive Touch Screen 480x320 Touch Display For Instruments Meters Outdoor Equipment

Part No.:ET035CTP05
Size:3.5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:100.25x100.25mm
Active Area:74.44x49.96mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

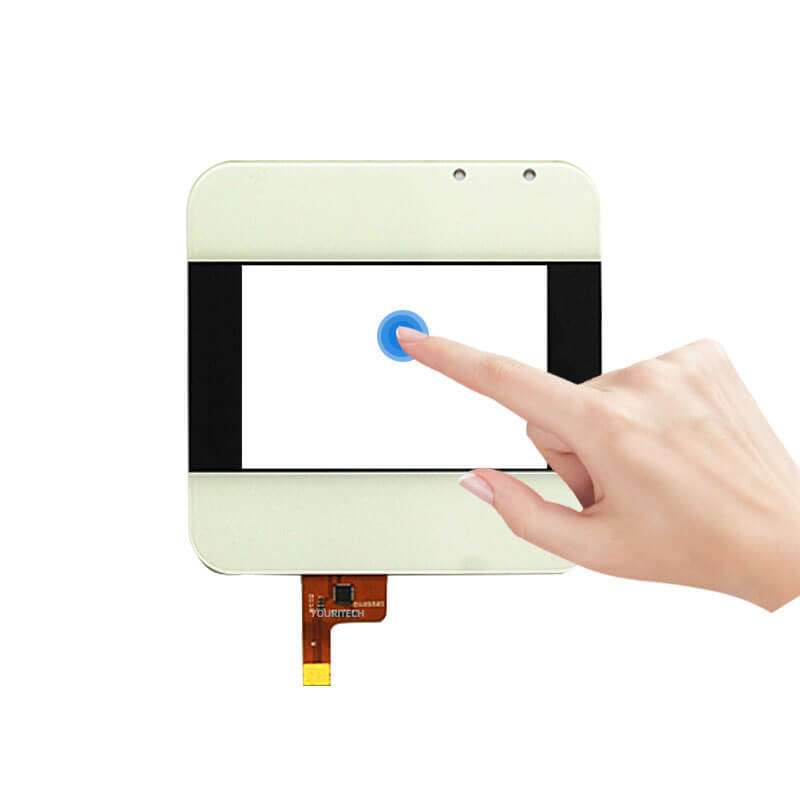

3.5 Inch Capacitive Touch Screen
TP Structure: Glass+Glass
Sensor Structure: DITO
Controller lC: HY4621
Sensing: Mutual capacitance
Touch Points: 5 Points
Interface Type: I2C
Connector (with Host): ZIF
TP OD (with Cover): 100.25x100.25mm
TP AA: 74.44x49.96mm
TP VA: 73.44x48.96mm
Channel: 9x9
Operation Temperature: -20~70℃
Storage Temperature: -30~80℃
Humidity: 20~85%RH

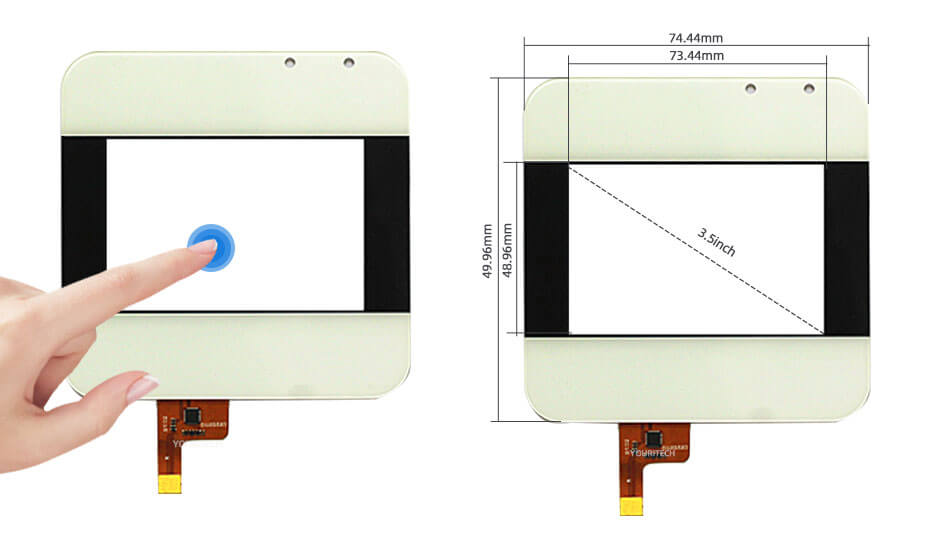

3.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
