0.48"-5" LCD Display (4")

4 Inch Capacitive Touch Screen G+FF Dual Membrane Structure GT911 For Industrial Instruments Handheld Equipment Home Appliances Medical

Part No.:ET040CTP01
Size:4″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:65x109mm
Active Area:51.78x86.40mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

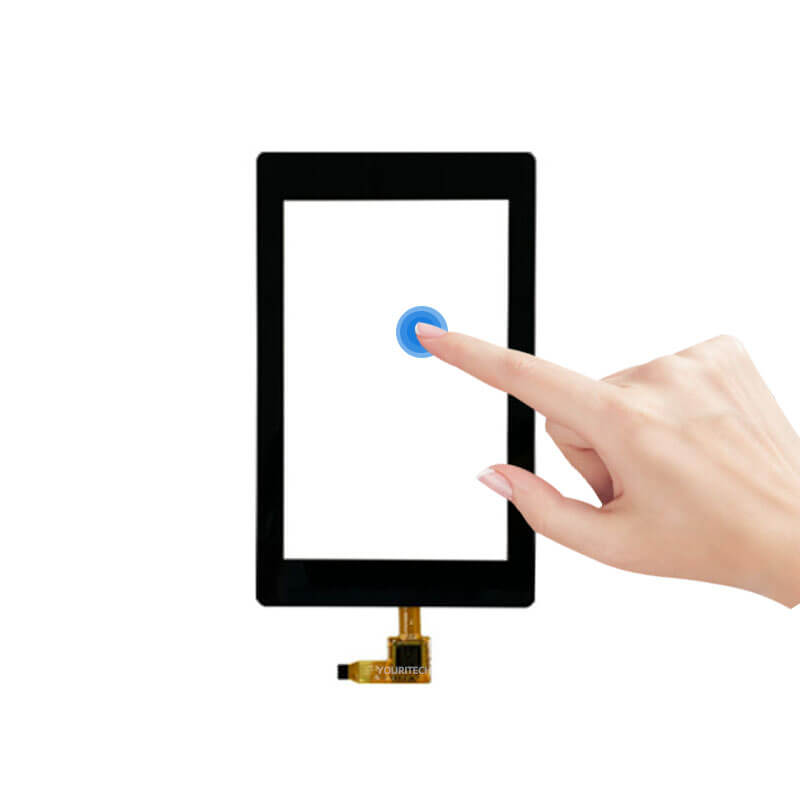

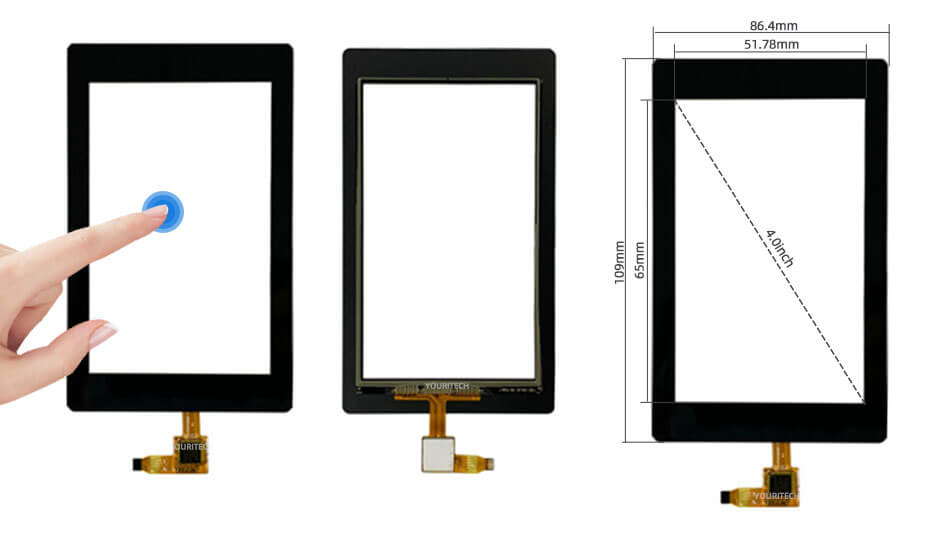

4 Inch Capacitive Touch Screen
Product structure: Glass/Film/Film
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 51.78x86.40 mm
Outline Dim.: 65x109 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

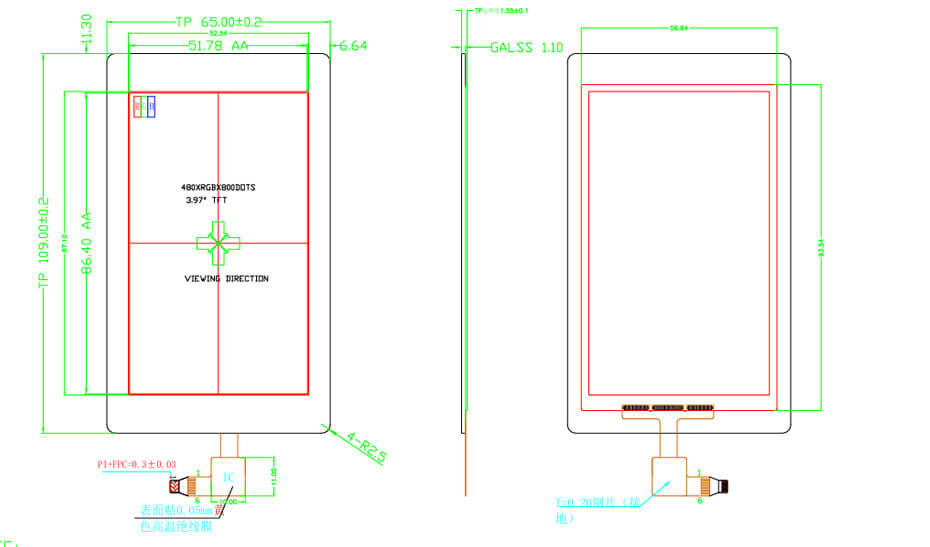

4 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
