3.5 Inch Capacitive Touch Screen 320x480 Touch Display For Industrial Equipment Instruments

Part No.:ET035CTP03
Size:3.5″ inch
Resolution:320x480
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:62.07x83.83mm
Active Area:49.56x74.04mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

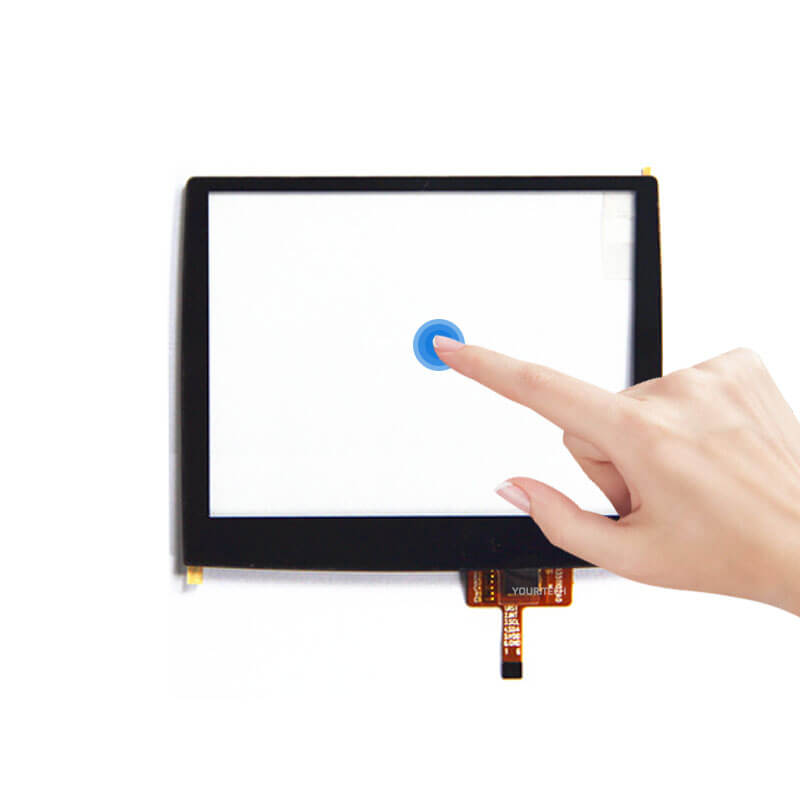

3.5 Inch Capacitive Touch Screen
Appearance thickness: 1.2 mm
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 49.56x74.04 mm
Outline Dim.: 62.07x83.83 mm
Operation Temperature: -20~70°C
Storage Temperature:-30~80°C

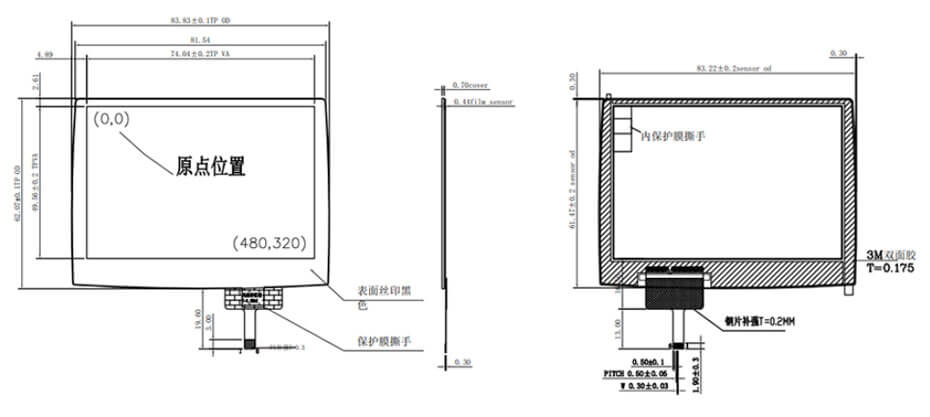

3.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
