3.2 Inch High Brightness LCD Display Overview

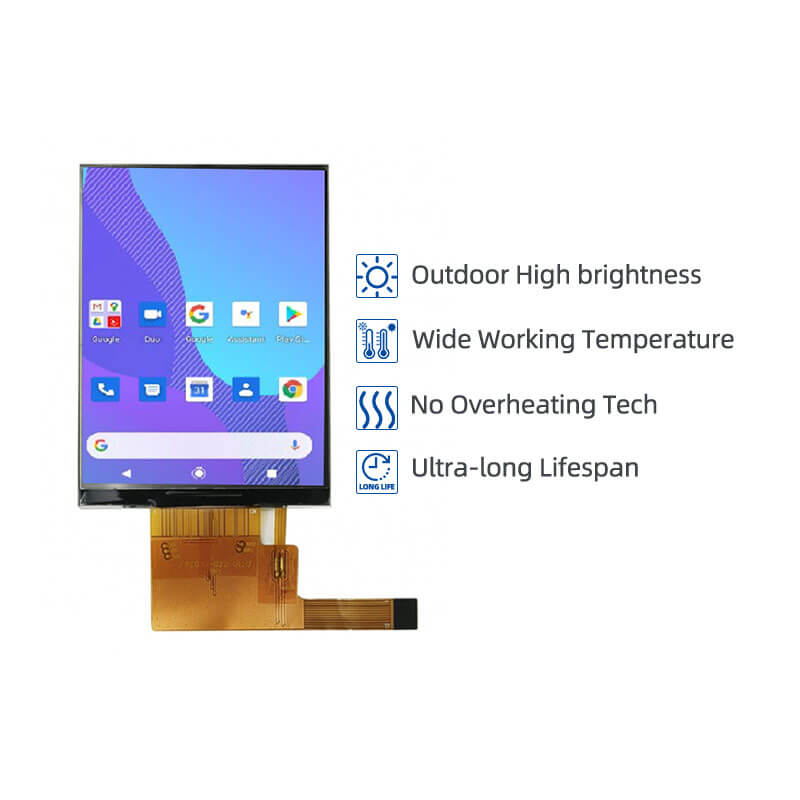

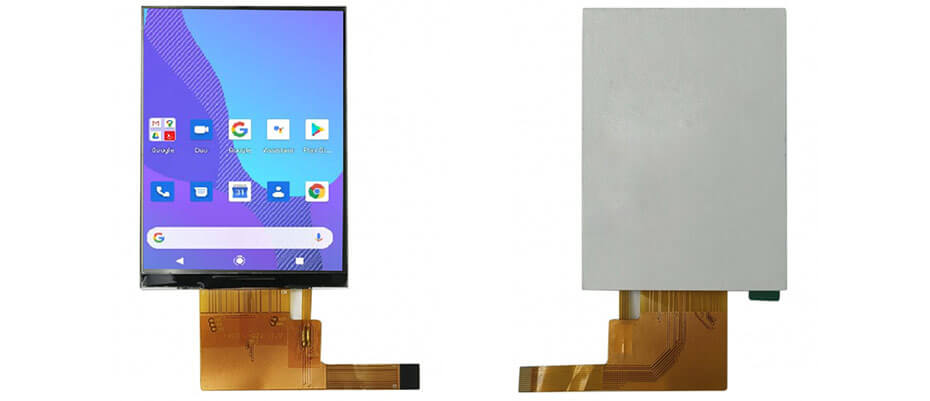

ET032VG01-C is a 3.2-inch TFT LCD display for handheld PDA applications. It features a 240×320 resolution in transmissive mode and adopts an SPI interface. The display delivers a typical brightness of 800 cd/m², with viewing angles of 45°/45°/45°/20° (L/R/U/D). It has an active area of 48.6 × 64.8 mm within an outline dimension of 52.6 × 72.2 mm, supports operating temperatures from –20 °C to 70 °C and storage temperatures from –30 °C to 80 °C, and is provided without a touch panel.
More 3.2 Inch High Brightness Display For Reference
ET032VG01-C (LCD, 240x320, SPI ,800nits, -20~70°C, 52.6x72.2mm)
ET032AM01-TOT (OLED, 262x928, MIPI ,700nits, -20~70°C, 23.8x81.05mm,On-Cell)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
