0.48"-5" LCD Display (2.8")

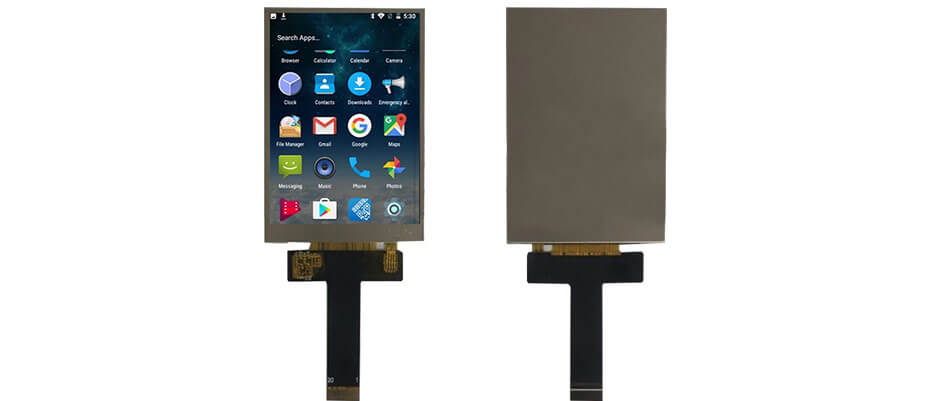

2.8 Inch High Brightness Display 700nits 240x320 MIPI TFT LCD Display For Handheld PDA

Part No.:ET028VG20-K
Size:2.8″ inch
Resolution:240x320
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:50.5x69.7mm
Active Area:43.2x57.6mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

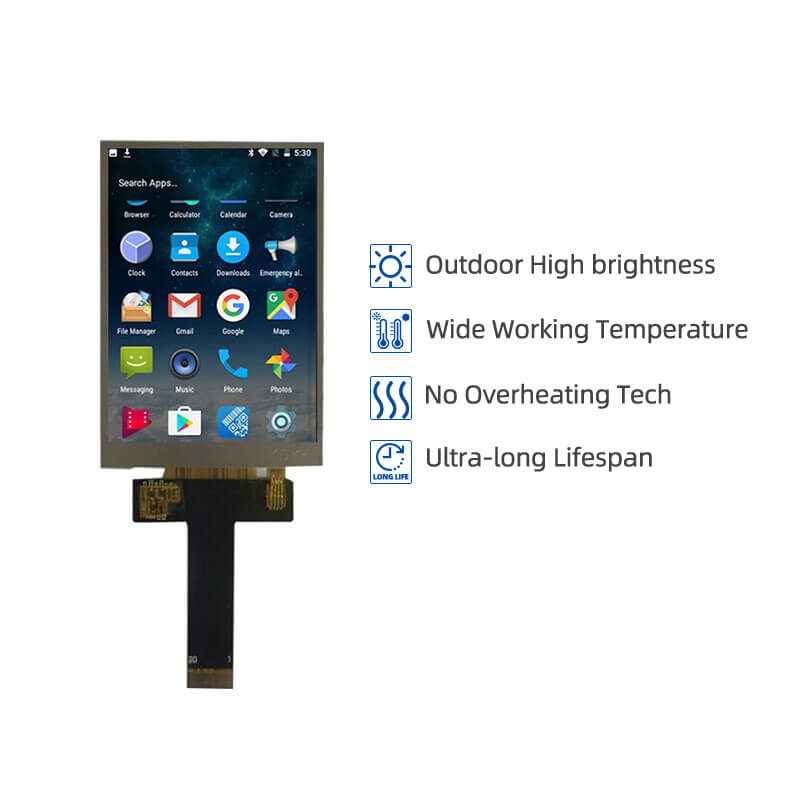

2.8 Inch High Brightness LCD Display Overview
2.8 Inch High Brightness Display 700nits 240x320 MIPI TFT LCD Display For Handheld PDA.

More 2.8 Inch High Brightness LCD Display For Reference
ET028VG01-C (240x320, CPU/RGB/SPI ,850nits, -20~70°C, 50.2x69.2mm)
ET028VG20-K (240x320, MIPI ,700nits, -20~70°C, 50.5x69.7mm)
ET028VG02-C (240x320, TTL ,1000nits, -20~70°C, 50.5x69.7mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
