3.2 Inch High Brightness LCD Display Overview

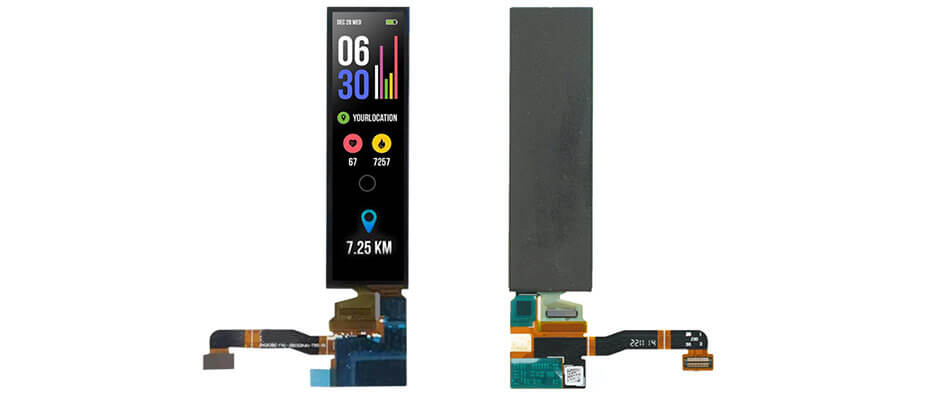

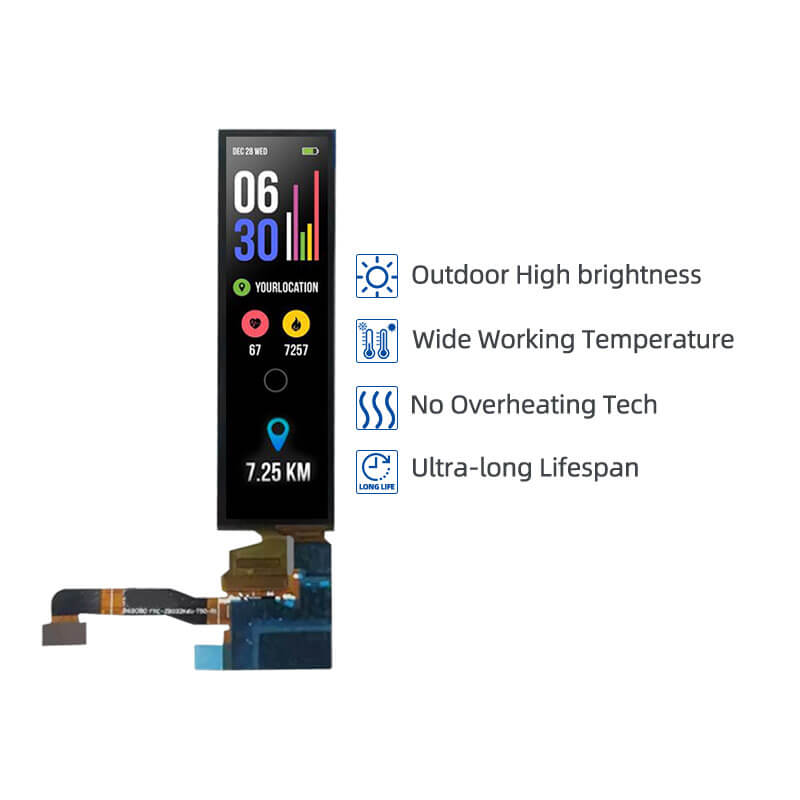

ET032AM01-TOT is a 3.2-inch AM-OLED display featuring a 262×928 resolution and a self-emissive panel in portrait format. It uses a MIPI interface and integrates on-cell touch functionality. The display delivers a typical brightness of 700 cd/m² with wide 85° viewing angles in all directions. It has an active area of 22.008 × 77.952 mm within an outline dimension of 23.8 × 81.05 mm, supports operating temperatures from –20 °C to 70 °C and storage temperatures from –30 °C to 80 °C.
More 3.2 Inch High Brightness Display For Reference

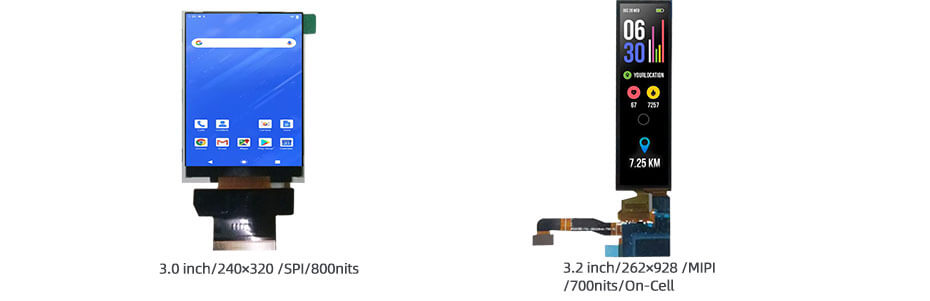

ET032VG01-C (LCD, 240x320, SPI ,800nits, -20~70°C, 52.6x72.2mm)
ET032AM01-TOT (OLED, 262x928, MIPI ,700nits, -20~70°C, 23.8x81.05mm,On-Cell)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
