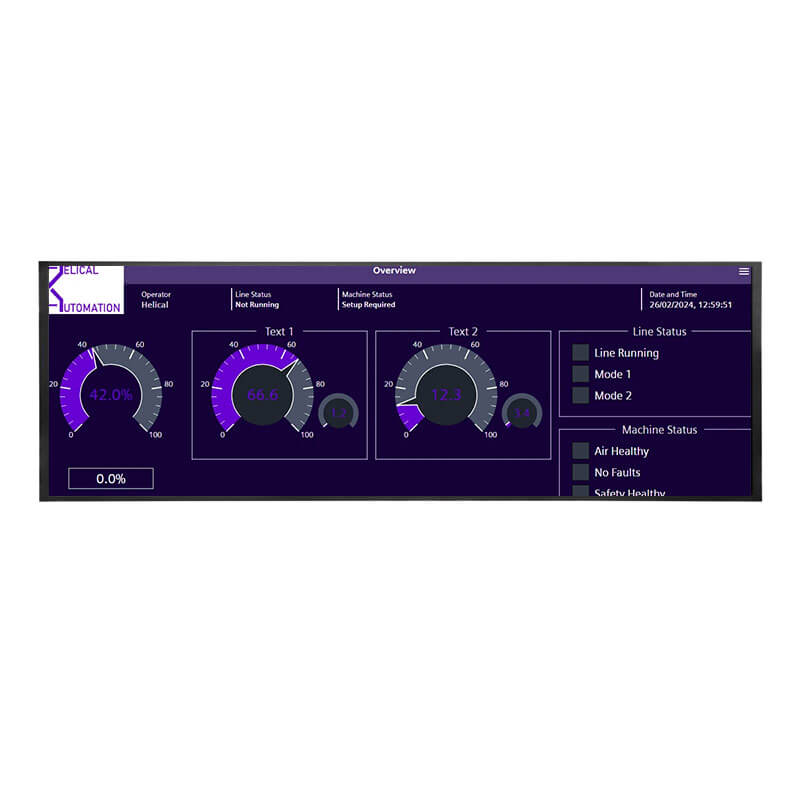

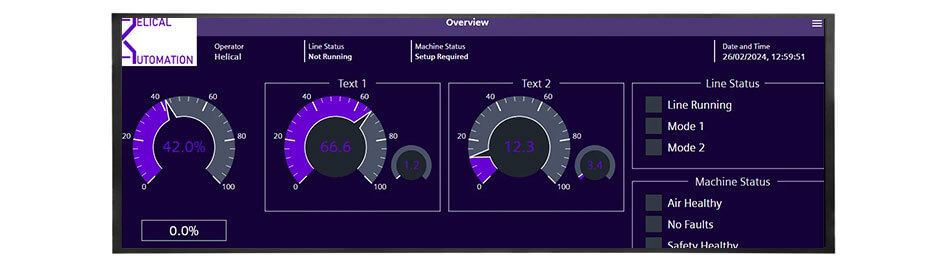

28.6 Inch 4K LCD Display 3840x1080 High Brightness 500nits V-by-One IPS LCD Module

Part No.:ET286UH01-YU
Size:28.6″ inch
Resolution:3840x1080
Panel Interface:V-by-One
Display mode:Transmissive
Outline Dimension:720x216mm
Active Area:698.4x196.4mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

28.6 Inch 4k Display Overview
ET286UH01-YU is a 28.6-inch diagonal LCD display module featuring IPS technology and a transmissive display mode. It supports a resolution of 3840 × 1080 with an ultra-wide aspect ratio, delivering sharp image quality and wide viewing angles of 89° in all directions (L/R/U/D). The panel uses a V-by-One interface for high-speed signal transmission and provides a typical brightness of 500 cd/m², suitable for standard indoor display applications. It features an active area of 698.4 (W) × 196.4 (H) mm and an outline dimension of 720 × 216 mm. ET286UH01-YU operates within a temperature range of 0 to 50°C, supports storage temperatures from −20 to 60°C, and does not include touch functionality.
