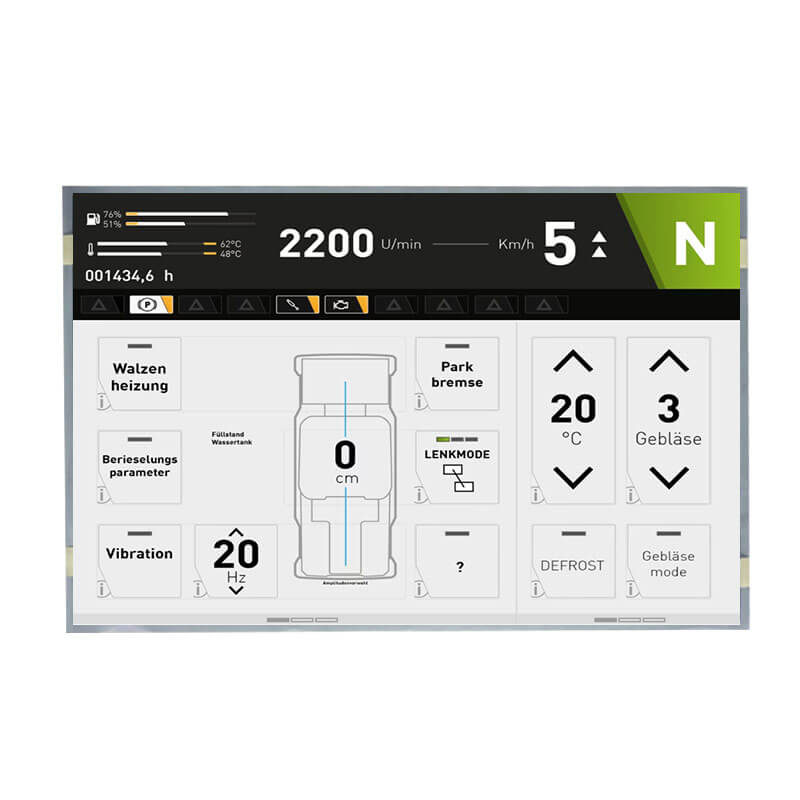

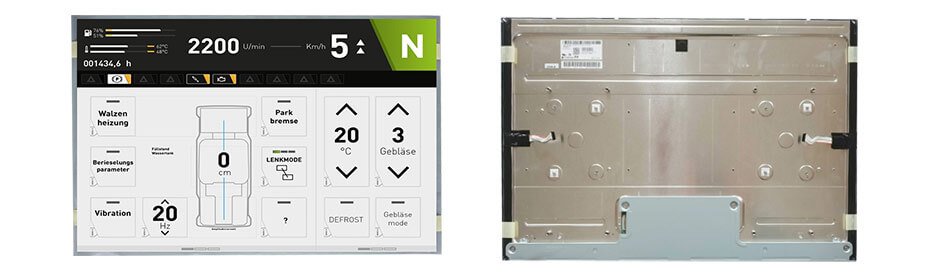

LB310FTM-SPA1 31 Inch 4K LCD Display 4200x2800 High Brightness 1200nits eDP (4 Lanes) IPS LCD Module

31 Inch 4k Display Overview
LB310FTM-SPA1 supports display 4200(RGB)×2800 with aspect ratio of 15:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 652.88(W)×435.12(H) mm, outline size of 676.9(W)×459.7(H)×26.3(D) mm, viewing area size of 656.1(W)×438.508(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 6.4/6.5Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB310FTM-SPA1 can provides 1200 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, external backlight driver is additionally needed. LB310FTM-SPA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
