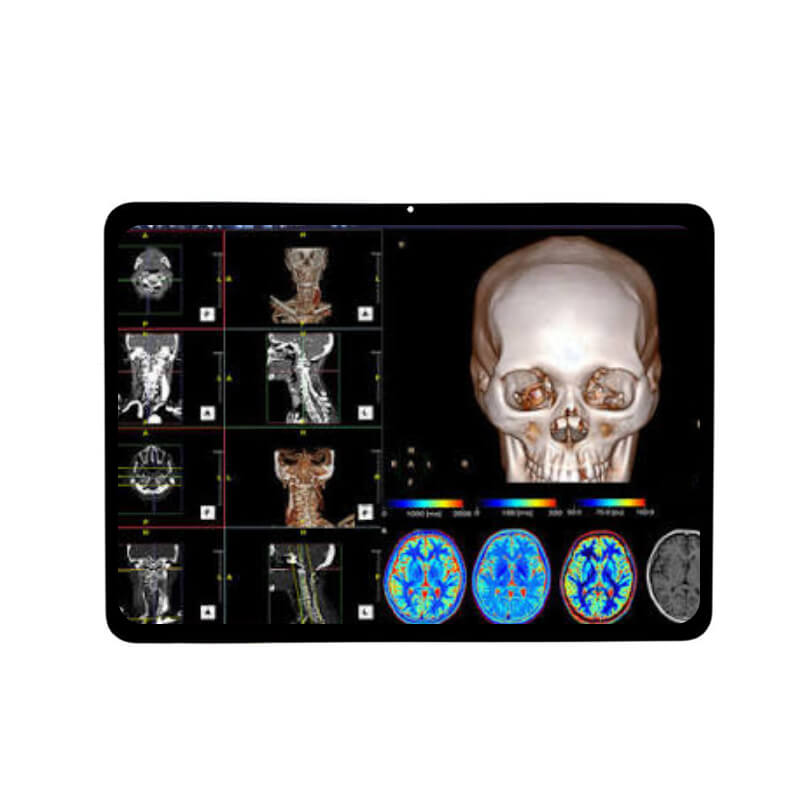

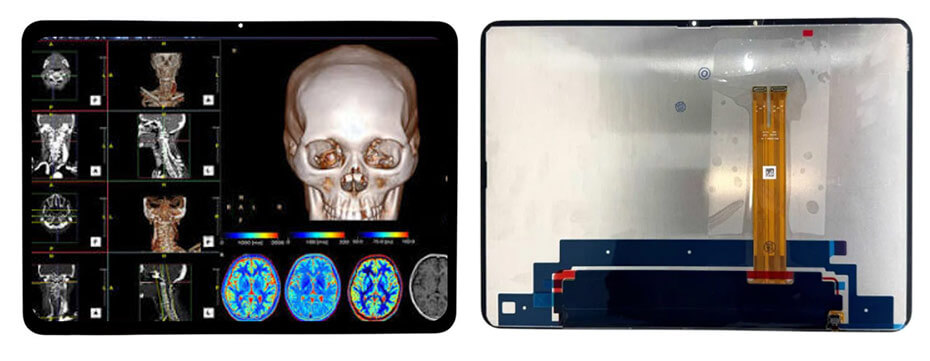

PPC100HB1-1 is a 12.1 inch diagonal LTPS TFT-LCD display screen product from CSOT, with a built-in WLED backlight, without backlight driver, touchscreen In-Cell Touch. PPC100HB1-1 supports display 3000(RGB)×2120 with aspect ratio of 7:5 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 303 PPI. As for mechanical detail, it features active area of 250.83(W)×177.253(H) mm, outline size of 264.33(W)×190.75(H) mm, with surface treament of Reflection 6.0% (Max.), net weight of TBD. As a FFS, Normally Black, Transmissive Assembly product, PPC100HB1-1 can provides 600 cd/m² display brightness 1400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (DCI-P3). This product adopted 9S8P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. PPC100HB1-1 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 72 pins Connector with power supply voltage of (1.9/1.95)/5.9/-5.9V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 144Hz.

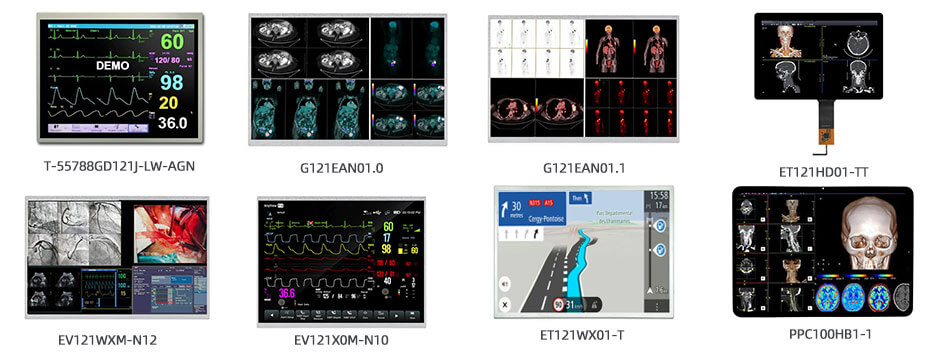

More 12.1 Inch Healthcare & Medical Display Solution For Reference
T-55788GD121J-LW-AGN (LCM, 800×600, LVDS, -30~80°C, 261.8×203.3mm)
ET121S0M-N14 (LCM, 800×600, LVDS, -20~70°C, 279×209mm)
G121EAN01.0 (LCM, 1280×800, LVDS, -30~85°C, 278×184mm)
G121EAN01.1 (LCM, 1280×800, LVDS, -30~85°C, 278×184mm)
ET121HD01-TT (LCM, 1280×800, LVDS, -20~70°C, 293.66×198.66mm)
EV121WXM-N12 (LCM, 1280×800, LVDS, -20~70°C, 277.7×180.6mm)
EV121X0M-N10 (LCM, 1024×768, LVDS, -20~70°C, 260.5×204mm)
ET121WX01-T (LCM, 1024×768, LVDS, -20~70°C, 260.5×204mm)
PPC100HB1-1 (LCM, 3000×2120, MIPI, -20~60°C, 264.33×190.75mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
