23 Inch Stretched Bar Display Overview

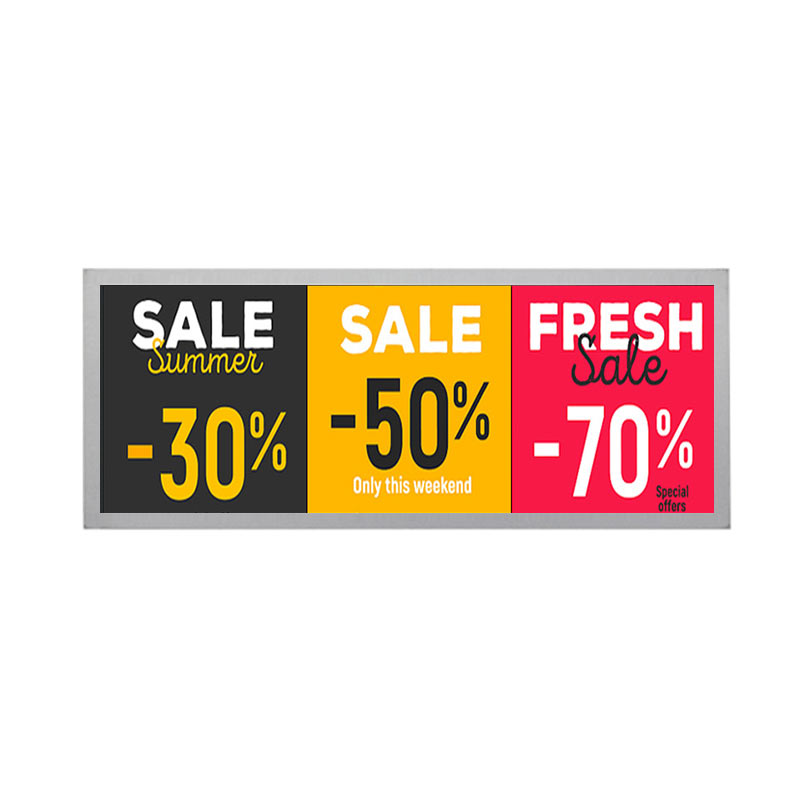

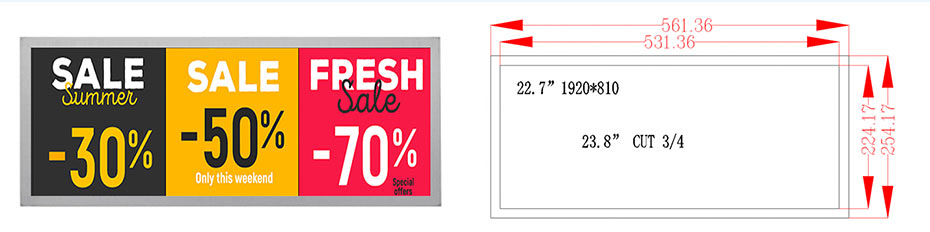

ET230BA01-HT is a 23-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a 1920 × 810 resolution, offering clear and detailed visuals across a wide-format screen. The display has an active area of 531.36 (W) × 224.17 (H) mm and an outline dimension of 561.36 (W) × 254.17 (H) mm, making it suitable for large-format applications. ET230BA01-HT uses an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring good visibility in various lighting conditions. With wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from different perspectives. The module operates within 0 to 50°C and can be stored between –20 to 70°C, and it supports touch functionality, ideal for interactive signage, industrial control panels, and high-resolution panoramic displays.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
