22 Inch Stretched Bar Display Overview

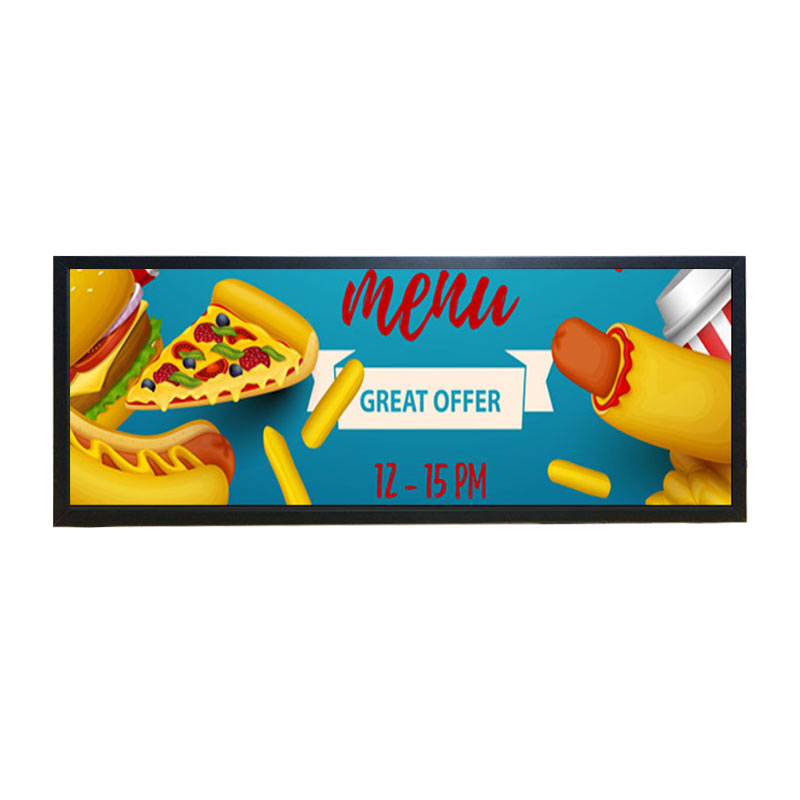

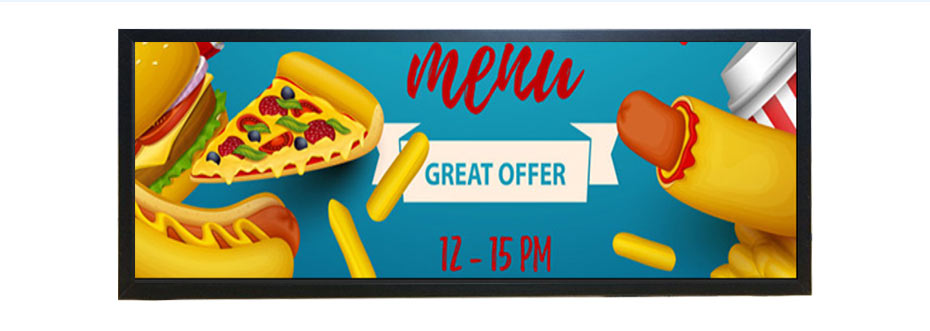

ET220BA01-YU is a 22-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a high-resolution 3840 × 1491 display, delivering sharp and detailed visuals with pixels arranged in a standard RGB sub-pixel structure. The display has an active area of 527.04 (W) × 197.6 (H) mm and an outline dimension of 547 (W) × 217.6 (H) mm, suitable for wide-format and panoramic applications. ET220BA01-YU uses a V-by-One interface and provides typical high brightness of 500 cd/m², ensuring good visibility under bright ambient lighting. With wide viewing angles of 89° in all directions (L/R/U/D), the display maintains consistent color and contrast across different viewing positions. The module operates reliably within 0 to 50°C and can be stored between –20 to 60°C, and it supports touch functionality, making it ideal for interactive signage, industrial control panels, and high-resolution wide-format applications.
More 22 Inch Bar Displays For Reference
ET220BA01-RX (1920x710, LVDS, IPS, 1000nits, 0~50°C, 548.4x222.2mm)
ET220BA01-YU (3840x×1491, V-by-One, IPS, 500nits, 0~50°C, 547x217.6mm)
